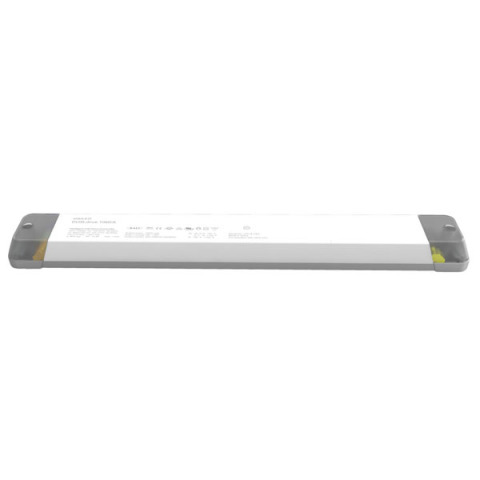

eldoLED DL1060 A DALI 2 Ballast 4 outputs
100 W dimmable RGB(W) LED driver
Smooth, flickerfree dimming
Made for 2x DMX/DALI environment
Maximum energy and operational efficiency
2—57 VDC and 200—1050 mA
LED dimming made beautiful
eldoLED drivers excel in smooth, flicker-free dimming and dim down all the way to 0.1 %
special made for a DALI environment!
Configure to suit your application
You can change the driver's configuration to perfectly fit your application's requirements.
Exact current output values and dimming related settings.
ledcode enables seamless integration of time motion, and brightness based intelligence
for maximum energy and operational efficiency.
Control and Programming
Control Mode DALI
Dali Ballast 2 Ballast
Protocols DALI 2
Dimmable Yes
Electrical Specifications and Connections
Power Supply 100-240 VAC 50-60 Hz
Output Voltage Vf/Vo Minimum 2 VDC
Output Voltage Vf/Vo Maximum 57 VDC
Power Consumption 100 W
Minimum Output Current (mA) 200 mA
Maximum Output Current (mA) 1050 mA
Power Connector in Open End
Power Connector out Open End
Data Connector in Open End
Data Connector out Open End
Mechanical Specifications
Length (mm) 388 mm
Height (mm) 30 mm
Width (mm) 42 mm
Weight 0.666 kg
IP Rating IP20 (indoor use only)
Material Metal
Housing Metal, Plastic
Colour White
Thermal Specifications
Maximum Ambient Temperature 50 °C
Minimum Ambient Temperature -40 °C
Included Items
Included Accessories None
