Infinity Raccoon Junior P7/4

High-brightness (>3450 lm) and high-quality (CRI >85.9) modes
Accurate and stable colours due to software calibration
Advanced XY, RGB, CMY, and HSI colour mixing technology and pre-set gel colours
Ultra-smooth dimming with five dimmer curves, including tungsten
DMX, RDM, and Manual control

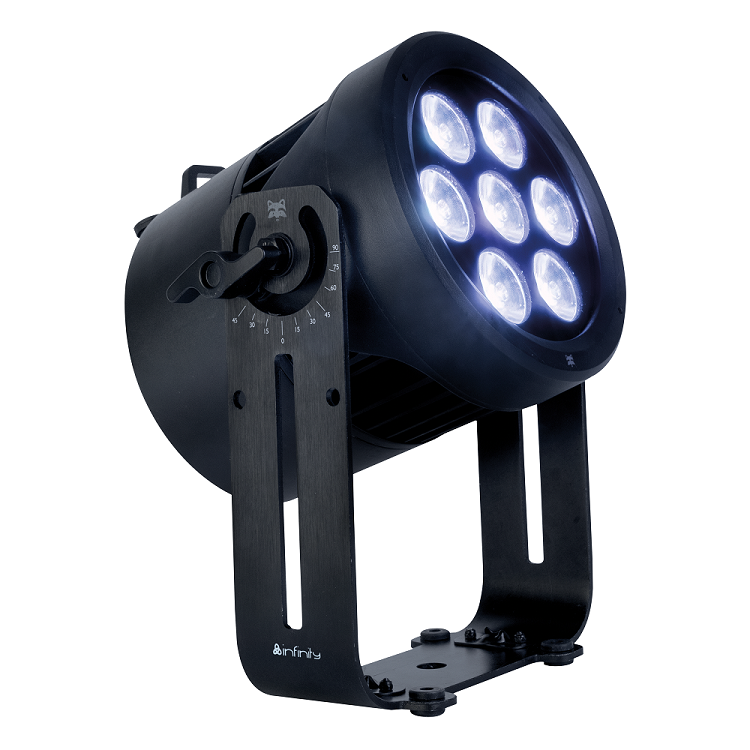

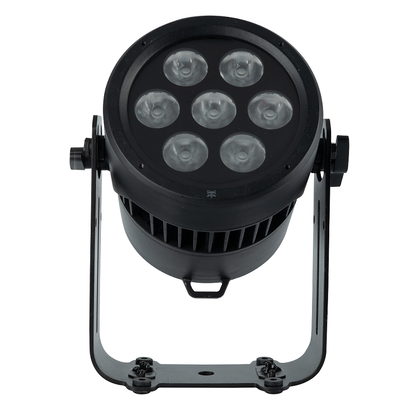

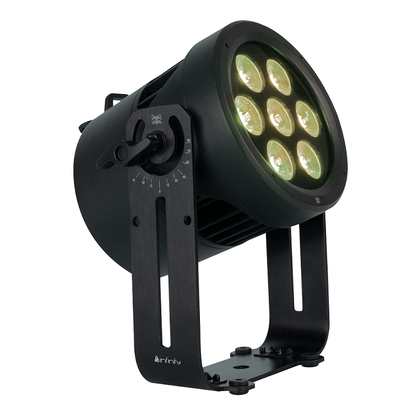

The Raccoon P7/4 is a high-brightness, high-CRI, IP65-rated Par, intended for applications where both brightness and quality are of high importance, especially rental applications and situations that demand a high light output. It has 7 extremely bright LEDs that have four colours each: red, green, blue, and mint. You can switch between maximum brightness and maximum colour quality (high CRI) mode.

The fixture offers top-of-the-line control options. The core technology of the Raccoon series is the calibrated colour engine, which guarantees outstanding colour quality and stability. By embedding the xy control mode technology, the Raccoon series ensures consistent and accurate colours at any time. The sophisticated software engine, developed in Europe, ensures an exceptionally stable colour output under all circumstances. Thanks to the (LED) temperature compensation, which is monitored continuously by the software, any visible colour shifting during the operation is prevented.

We use the same calibration standards as the Infinity Signature series, so the fixtures are highly consistent in colour. Five different internal dimmer curves are available through the easy-to-use menu system, including a Tungsten shift simulation that works even with a colour filter applied! It can take care of CCT, RGB, and Lee filters internally.

Besides xy mode, control through regular DMX, RDM, and Manual is also possible. The PWM frequency is adjustable between 640 Hz and 25 kHz, ensuring flicker-free camera images. Basic settings, like PWM and dimmer curve, can be copied among Raccoon fixtures in the same network to guarantee identical behaviour. Sturdy 5P XLR DMX and Power Pro True power connectors ensure reliable connections and IP65 compliance. With its stylish housing and accessories like barndoors, a top hat, filter frames, and diffusion filters, the Raccoon series poses an ultra-flexible competitor for high-end pars.

Source
Light Source Type       LED
Light Source Quantity   7
Light Source Power      15 W
LED Colour Type         R, G, B, M
Luminous Flux (Total)   3459 lm
CRI                     86

Optical
Beam Angle (Circular)   10 °

Control and Programming
Control Mode            DMX, Manual, Static Dimmer
DMX Channels            1, 3, 8, 10, 12
Protocols               DMX, RDM
Display                 OLED

Dynamic Effects
Dimmer                  0-100 %
Strobe                  0-25 Hz

Electrical Specifications and Connections
Power Supply            100-240 V AC 50/60 Hz
Power Consumption       75 W

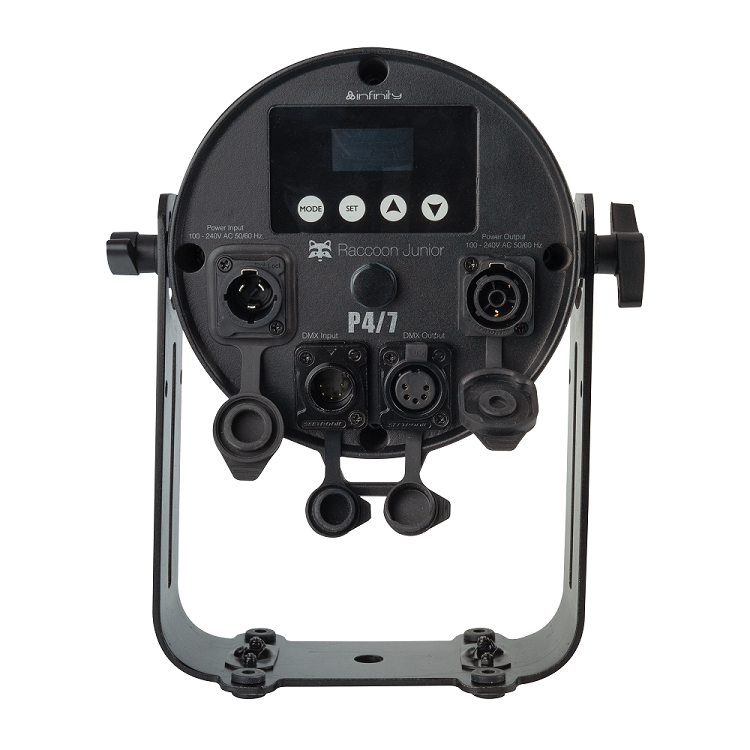

Power Connector In      Power Pro True
Power Connector Out     Power Pro True
DMX Connector           XLR 5P In/Out
DMX Connector In        XLR 5P
DMX Connector Out       XLR 5P

Mechanical Specifications
Length (mm)             181 mm
Width (mm)              232 mm
Height (mm)             276 mm
Weight                  4 kg
IP Rating               IP65
Housing                 Aluminium
Colour                  Black

Product Properties
Cooling                 Convection

Thermal Specifications
Maximum Ambient Temperature   45 °C
Minimum Operating Temperature -5 °C

Included Items
Included Cables          Power Pro True Cable
