Infinity Raccoon Junior P4/7

ery high CRI (>95), very high brightness, excellent for exhibitions and critical lighting conditions
XY, DMX, RDM, Manual, and Master/slave control
Calibrated colours in any circumstance
Five dimmer curves, including Tungsten with colour filter
Great price/quality ratio

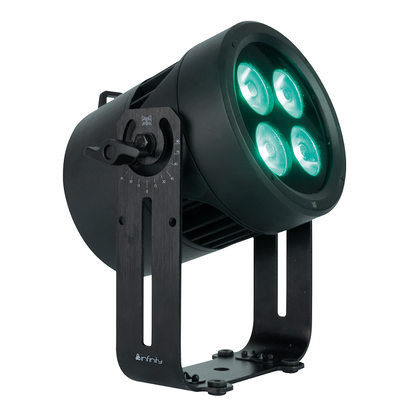

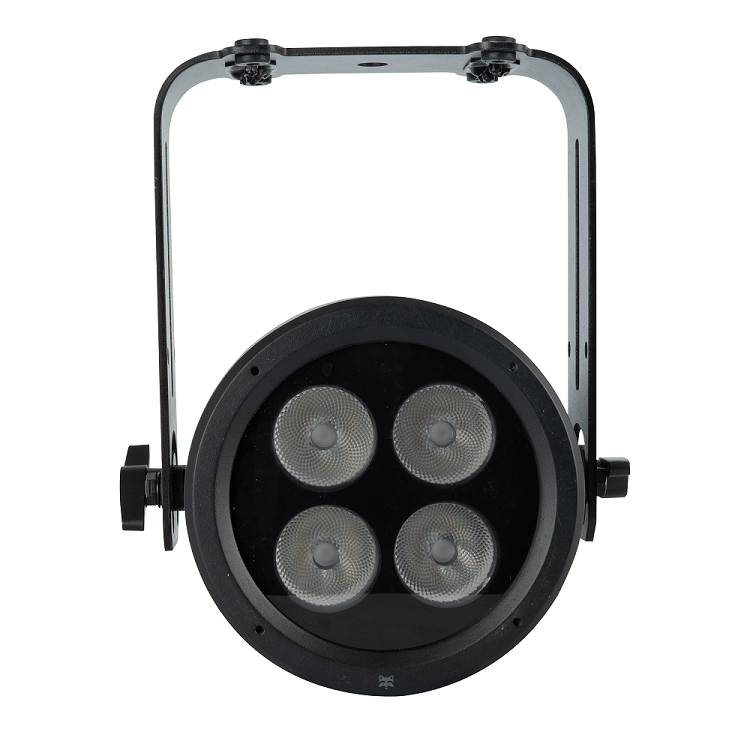

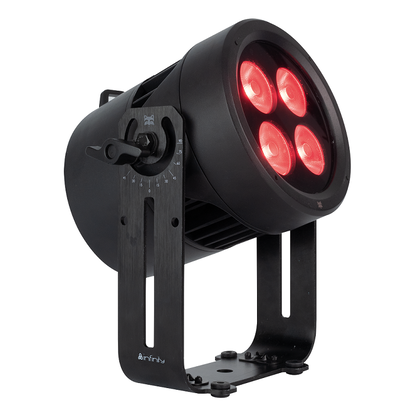

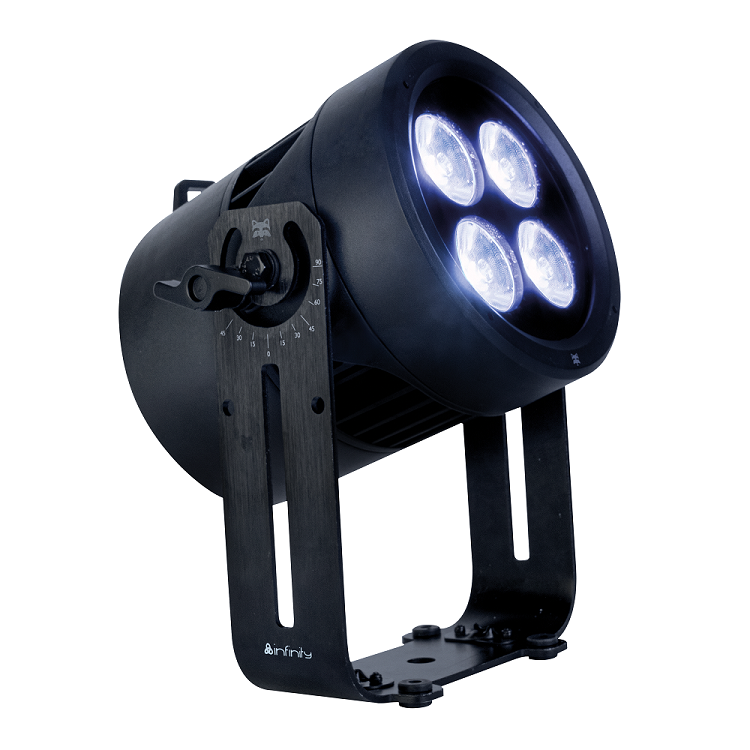

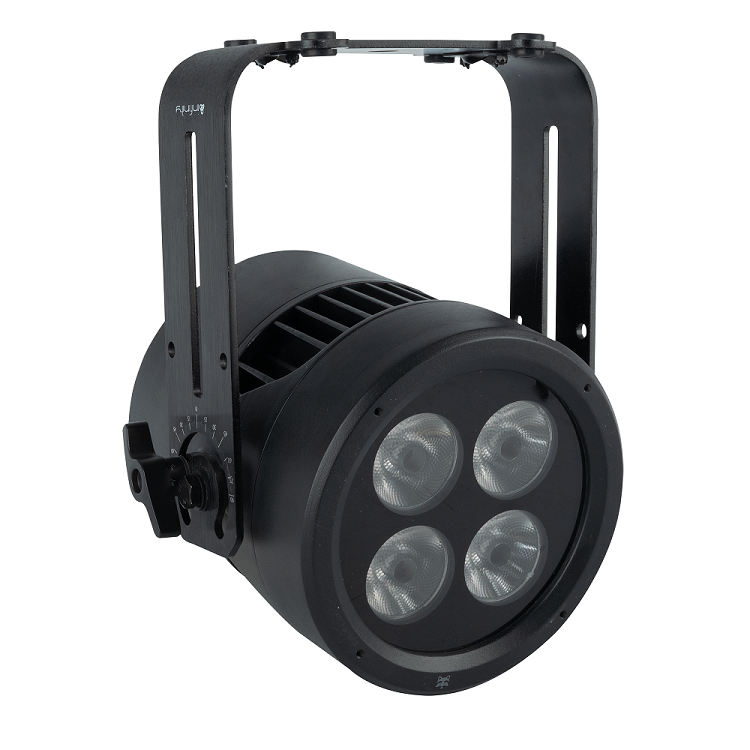

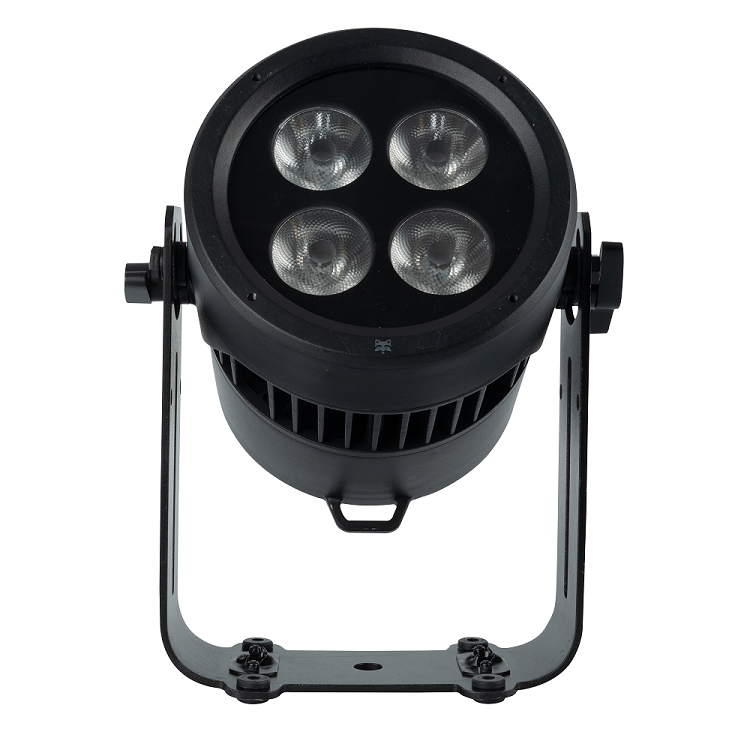

The Raccoon P4/7 is a very high-CRI (>95), high-brightness, IP65-rated Par can, intended for applications where both quality and brightness are of high importance, especially exhibitions, museums, and situations that demand a high quality of light. It has 4 extremely accurate LEDs that have seven colours each: red, green, PC green, blue, royal blue, PC amber and cyan. You can switch between maximum brightness and maximum colour quality (high CRI) mode.
The fixture offers top-of-the-line control options. The core-technology of the Raccoon series is the calibrated XY colour engine, which guarantees outstanding colour quality and stability. With the embedded XY technology, it doesn’t matter which XY-capable fixtures you mix, their colours will always match! The calibrated internal controller ensures an exceptionally stable colour output at every temperature of the LEDs and every brightness setting, without any visible colour shift when dimming. We use the same calibration standards as the Infinity Signature series, so both fixtures are highly consistent in colour. Five different internal dimmer curves are available through the easy-to-use menu system, including a Tungsten shift simulation that works even with a colour filter applied! It can take care of CCT, RGB, and Lee filters internally.

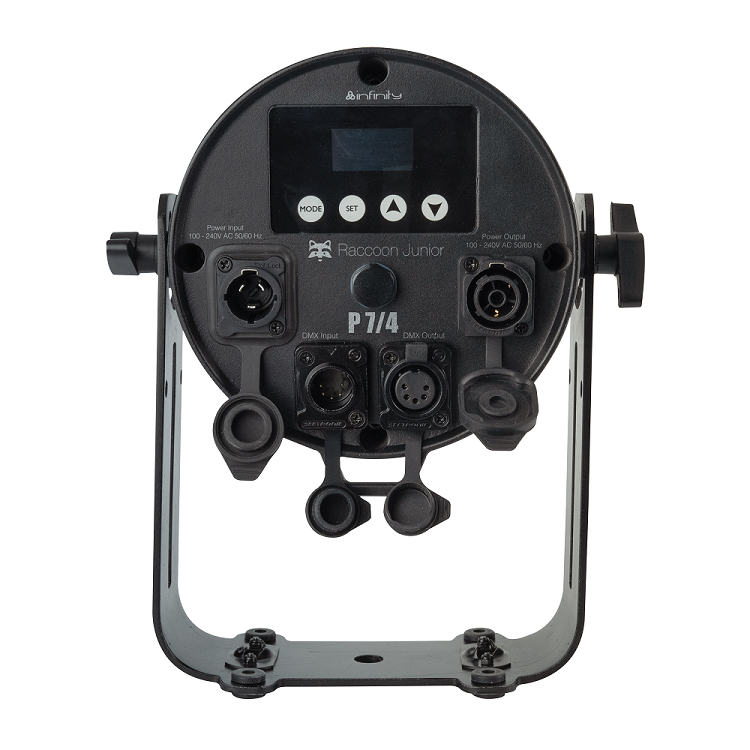

Besides XY mode, control through regular DMX, RDM, Manual, and Master/slave is also possible. The PWM frequency is adjustable between 640 Hz and 25 kHz, ensuring flicker-free camera images. Basic settings, like PWM and dimmer curve, can be copied among Raccoon fixtures in the same network to guarantee identical behaviour. Sturdy 5P XLR DMX and Power Pro True power connectors ensure reliable connections and IP65 compliance. With its stylish housing and accessories like barndoors, a top hat, filter frames, and diffusion filters, the Raccoon series poses an ultra-flexible competitor for high-end par cans.

Source
Light Source Type      LED
Light Source Quantity  4
Light Source Power     25 W
LED Colour Type        RGBCALDB
Illuminance @ 2 m      7119 lx
Illuminance @ 3 m      3164 lx
Illuminance @ 5 m      1139 lx
Luminous Flux (Total)  2398 lm
Luminous Flux (Red)    317 lm
Luminous Flux (Green)  645 lm
Luminous Flux (Blue)   264 lm
Luminous Flux (Amber)  560 lm
Luminous Flux (Lime)   900 lm
Luminous Flux (Royal Blue)  173 lm
Luminous Flux (Cyan)   502 lm
CRI                    95
Minimum CCT            2700 K
Maximum CCT            8000 K

Optical
Beam Angle (Circular)  15 °

Control and Programming
Control Mode           DMX, Manual, Static Dimmer
DMX Channels           1, 3, 8, 10, 12
Protocols              DMX, RDM
Display                OLED

Dynamic Effects
Dimmer                 0-100 %
Strobe                 0-25 Hz

Electrical Specifications and Connections
Power Supply           100-240 V AC 50/60 Hz
Power Consumption      90 W
Power Connector In     Power Pro True
Power Connector Out    Power Pro True
DMX Connector          XLR 5P In/Out
DMX Connector In       XLR 5P
DMX Connector Out      XLR 5P

Mechanical Specifications
Length (mm)            191 mm
Width (mm)             232 mm
Height (mm)            276 mm
Weight                 4 kg
IP Rating              IP65
Housing                Aluminium
Colour                 Black

Product Properties
Cooling                Convection

Thermal Specifications
Maximum Ambient Temperature   45 °C
Minimum Operating Temperature -5 °C

Included Items
Included Cables         Power Pro True Cable
