Infinity Chimp 100.G2

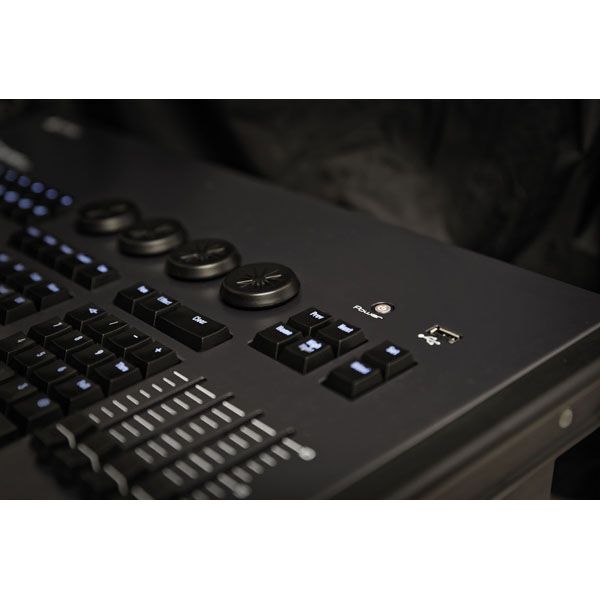

Familiar keys, numeric keypad and 4 encoders

Minimum 1024 channels of DMX (expandable)

All DMX fixtures addable

Libraries provided by Altabase

Tracking and non-tracking options

The Infinity Chimp 100.G2 light controller delivers all the tools you need to create a lightshow within minutes. With the Chimp 100.G2 you have access to two universes with unlimited patchable fixtures. It has been engineered with one thing in mind: user convenience. It is the perfect controller for beginners and even more so for advanced users.

You can connect up to two external touchscreens on which your entire show unfolds. Use personalized colours in the GUI, add Magic sheets to visualize your show in 2D and put the extensive Atlabase to good use. The Atlabase offers more than 21,000 fixtures to choose from. But in case your specific fixture is missing, you can add this to your setup via the built-in Fixture Builder. Add effects, movements, colour changes and more by using the Effects Engine. The integrated Wireless DMX module by Wireless Solutions adds to the versatility of the system. With each software upgrade new features are added to the Chimp, the Atlabase fixture library is updated and user-requested applications are made available.

Software Specifications

Supported Operating Systems Linux

Wireless Specifications

Gain (dB) 5 dB

Gain (mW) 10 mW

Synchronisation Time 2 GHz

Antenna Type Omni

Antenna Radiation 360 x 90°

Control and Programming

Control Mode DMX, MIDI

DMX Channels 1024

Patch mode Yes

Wireless Wireless DMX

Display External Yes

Display External Resolution Width 1920

Display External Resolution Height 1080

Fixture Channels 1024

Unlimited Fixtures Yes

Buttons 97

Cue Lists 200

Encoder Wheels 4

Faders 14

Memories 5000

OSC (Open Sound Control) Yes

Playback Buttons 10

Playback Faders 10

Playback Pages 40

Art-Net Yes

Effects Engine Yes

Universes 2

Electrical Specifications and Connections

Power Supply 100-240 VAC 50-60 Hz

Power Consumption 75 W

Power Connector in IEC

DMX Connector in XLR 5P

DMX Connector out XLR 5P

Data Connector in etherCON, RJ45, USB

Data Connector out etherCON, RJ45, USB

Midi Connector Yes

HDMI Outputs 2

Ethernet Ports 1

Audio Triggers 6

Mechanical Specifications

Length (mm) 400 mm

Width (mm) 575 mm

Height (mm) 160 mm

Weight 9 kg

IP Rating IP20 (indoor use only)

Housing Metal, Plastic

Colour Black

Product Properties

Cooling Axial fan

Desklight 3P XLR female

Thermal Specifications

Maximum Ambient Temperature 40 °C

Minimum Ambient Temperature -5 °C

Included Items

Included Cables IEC cable
