Artecta Havana Jade 120-24 V

5 m 3528 720-810 Lm/m - 2700 K

The Jade series are IP68 strips for moist or wet applications. We recommend mainly for indoor use. For outdoor applications, please check with our product specialists first. As the Jades series are casted in silicone, it is not recommended to enclose the strips due to heat dissipation. The 3528 LED is an efficient mid power LED, for versatile applications. Due to its compact size, a high LED/metre rating is possible to create an even light spread.

Due to production conditions, photometric data can differ per production batch within the EU directive.

Source

Light Source Type LED

Light Source Quantity/m 120

Light Source Power 48 W

LED Colour Type WW

Light Source System SMD3528

Lumen Total 3750 lm

Lumen output/m 750 lm

CRI 85

CCT 2700 K

Optical

Beam Angle Circular 120°

Control and Programming

Dimmable Yes

Electrical Specifications and Connections

Power Supply 24 VDC

Power Consumption 48 W

Power/1 m 9.6 W

Driver Excluded

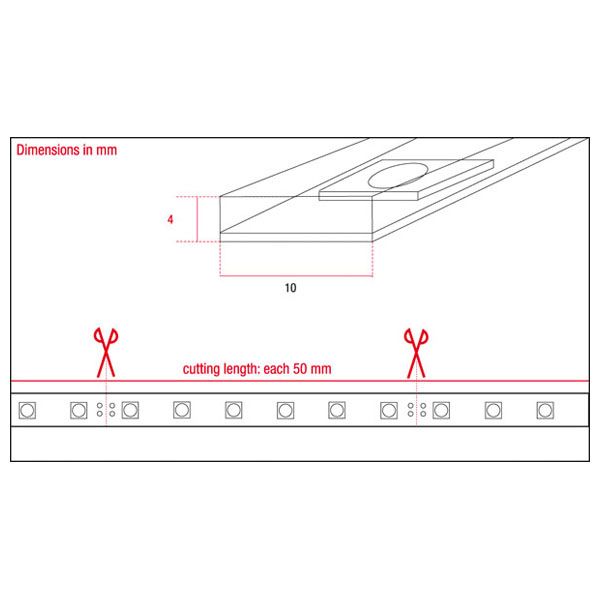

Mechanical Specifications

Length (m) 5 m

Maximum Lengt (m) 5 m

Cutting Length 50 mm

Height (mm) 5 mm

Width (mm) 10 mm

Weight 0.418 kg

IP Rating IP68

PCB Colour White

Thermal Specifications

Maximum Ambient Temperature 50 °C

Minimum Ambient Temperature -20 °C
