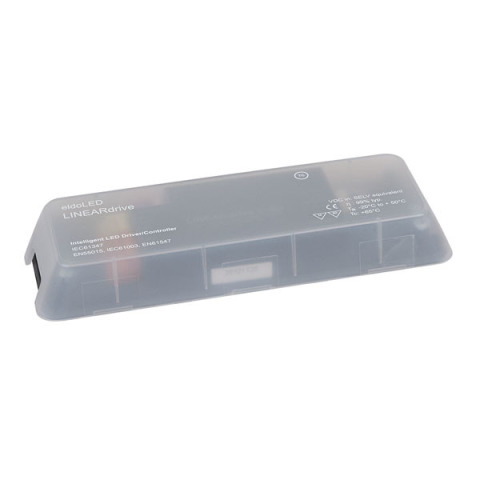

eldoLED LIN210D1 DALI 1 Ballast 2 outputs
Hybrid HydraDrive provides smooth, flicker-free dimming down to 1 %
Auxiliary power output
Exceptionally smooth colour fades
eldoLED Lineardrivers are high-end PWM dimmers for flickerfree and smooth dimming, even in the very low ranges. The are available in 0–10 V, Dali and DMX, for single and multicolour.
Control and Programming
Control Mode DALI
Protocols DALI
Electrical Specifications and Connections
Power Supply 12-28 VDC
Output Voltage 12-28 VDC
Maximum Output Current (A) 8 A
Power Connector in Open End
Power Connector out Open End
Data Connector in Open End
Data Connector out Open End
Mechanical Specifications
Length (mm) 153 mm
Height (mm) 23 mm
Width (mm) 50 mm
Weight 0.134 kg
IP Rating IP20 (indoor use only)
Housing Plastic
Colour Black
Thermal Specifications
Minimum Ambient Temperature -20 °C
Maximum Surface Temperature 50 °C
