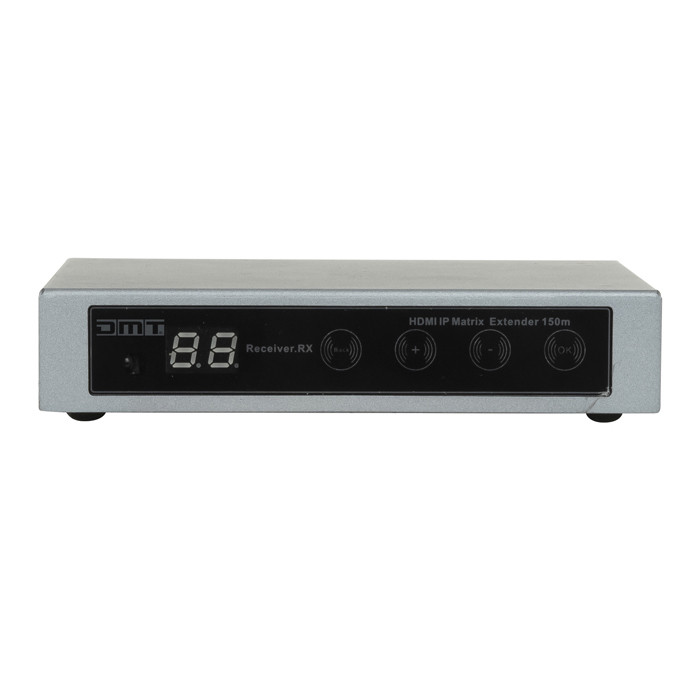

VT301-R - HDMI Matrix Extender Receiver (RX) Max. 150m with IR

Additional HDMI Matrix Extender Receiver

Suitable for VT301

Up to 1920 x 1080P @60 Hz

Up to 100 m/328 ft (additional 100 m with network switch)

Please note that a network switch is required when bridging a distance of more than 100 metres.

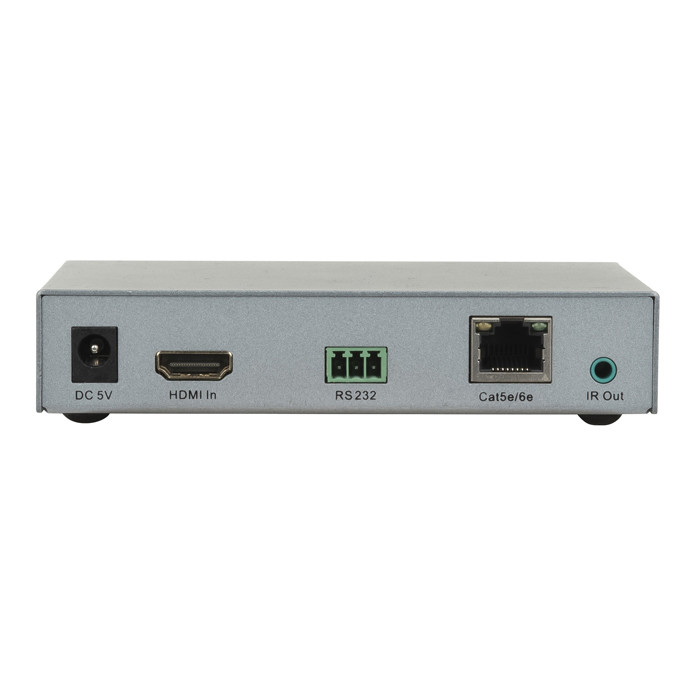

Inputs

IR Port 1

Outputs

HDMI 1.2 (out) 1

Control and Programming

Maximum Output Resolution 1920 x 1080

Electrical Specifications and Connections

Power Supply 5 VDC

Power Consumption 2.7

Power Connector in Low Voltage DC plug

Mechanical Specifications

Length (mm) 80

Width (mm) 125

Height (mm) 25

Weight 0.3

IP Rating IP20 (indoor use only)

Housing Steel

Colour Grey

Thermal Specifications

Maximum Ambient Temperature 40

Operating Humidity 0-95

Certifications/Qualifications

Reference Standard CE, UKCA

Included Items

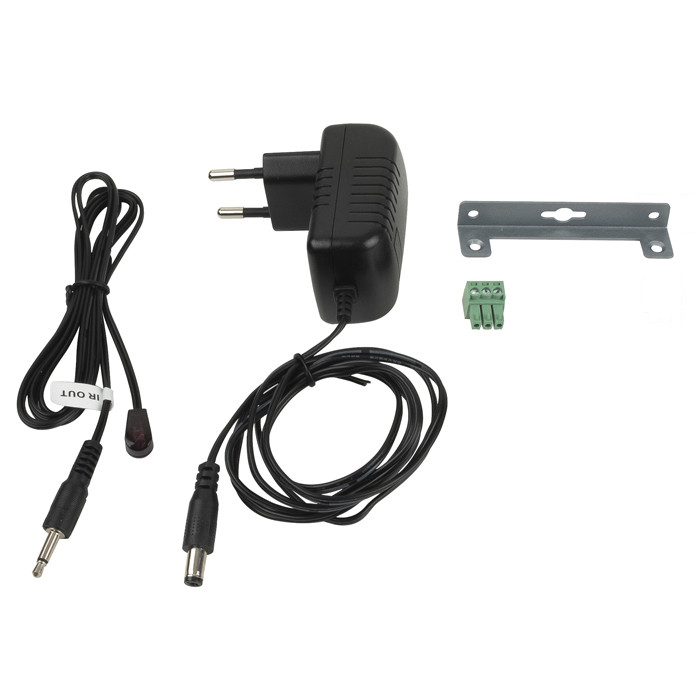

Included Accessories Adapter, Bracket, IR Transmitter Cable
