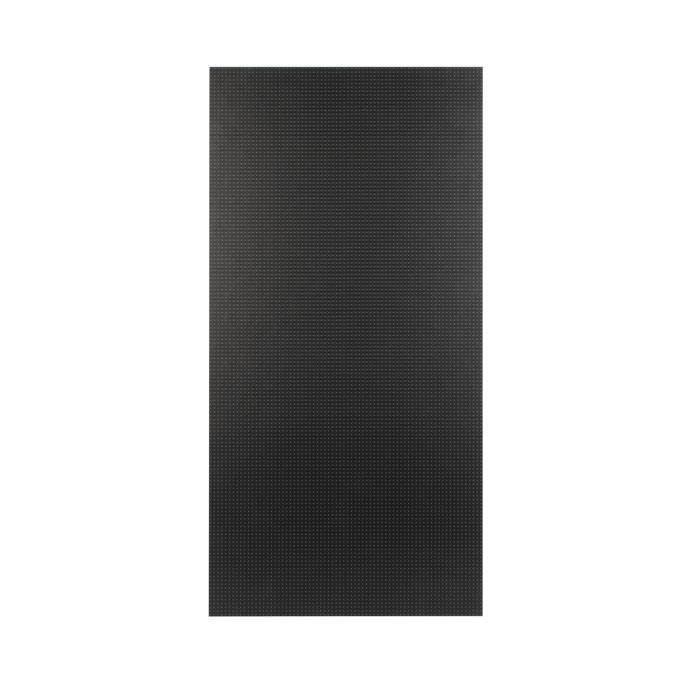

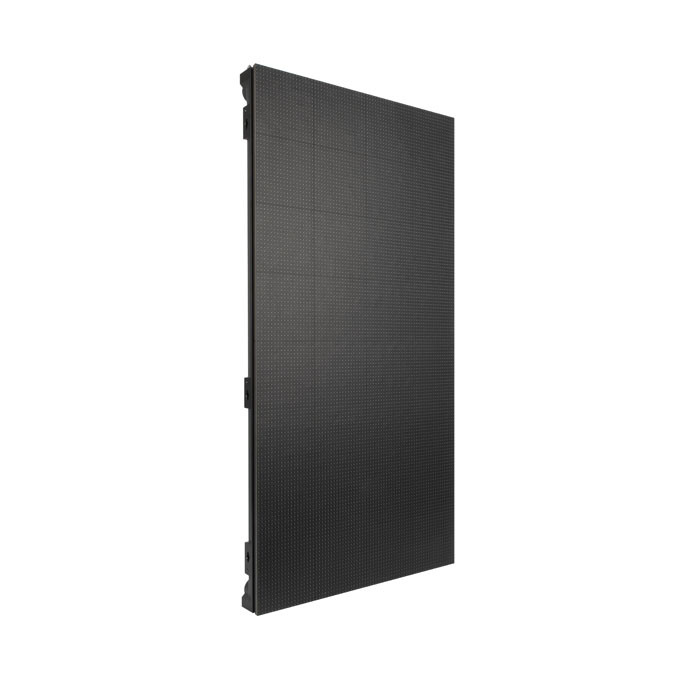

DMT Premiere Series PS6.9 Blue Line 50 x 100 cm

6.9 mm pixel pitch with up to 1000 nits
Front and rear service
Lightweight
NovaStar A5s PLUS receiver card
IP20

The DMT Premiere Series PS6.9 Blue Line is an LED panel with a 6.9 mm pixel pitch and a brightness of up to 1000 nits. It has an IP20 rating and is therefore suitable for fixed and mobile applications indoors. The 6.9 mm pixel pitch offers optimal viewing at distance of 7 metres or more. Thanks to its light weight and thin design, the PS6.9 Blue Line LED panel is easy to set up. Three types of separately available rigging bars make hanging and stacking a breeze. With the Stacking Bracket (101743), mounting a stacked screen to a Layher or truss construction is safe and quick. Power Pro and ProCat connections ensure safe and secure power and data connectivity, while the built-in A5s PLUS receiver card works together flawlessly with any NovaStar video processor. Front and rear access to the LED panel make it easy to service.

Optical
Pixel Pitch Horizontal      6.9 mm
Pixel Pitch Vertical        6.9 mm
Cabinet Resolution Width    72 px
Cabinet Resolution Height   144 px
Module Resolution Width     36 px
Module Resolution Height    72 px
Viewing Angle Horizontal    160°
Viewing Angle Vertical      155°
Minimum Viewing Distance    7 m
Cabinet Ratio               1:1

Source
Light Source Type           LED
LED Type                    Black Face
Brightness                  1000 nits

Control and Programming
Control System              Novastar
Receiving Card              A5s PLUS
Refresh Rate Screen         3840 Hz

Electrical Specifications and Connections
Power Supply                100-240 VAC 50-60 Hz
Power Consumption           265 W
Power Consumption Average   90 W
Power Connector in          Power Pro True
Power Connector out         Power Pro True
Data Connector in           ProCat
Data Connector out          ProCat

Mechanical Specifications
Cabinet Width               500 mm
Cabinet Height              1000 mm
Cabinet Depth               66 mm

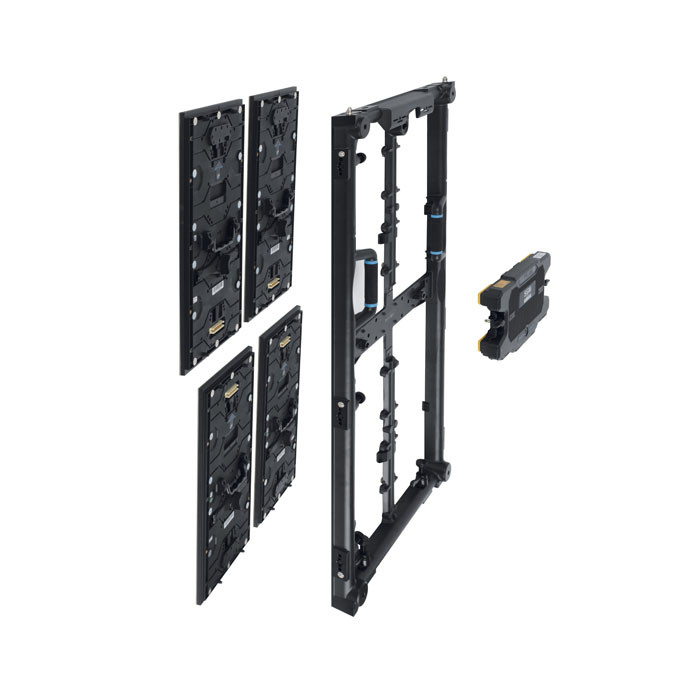

Module Width                250 mm
Module Height               500 mm
Weight                      12.8 kg
IP Rating                   IP20 (indoor use only)
Housing                     Magnesium die-cast

Product Properties
Cooling                     Convection

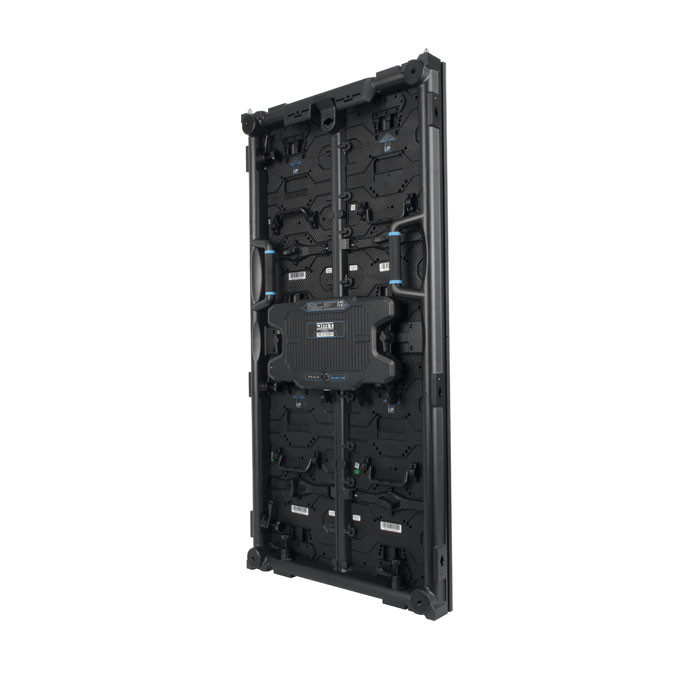

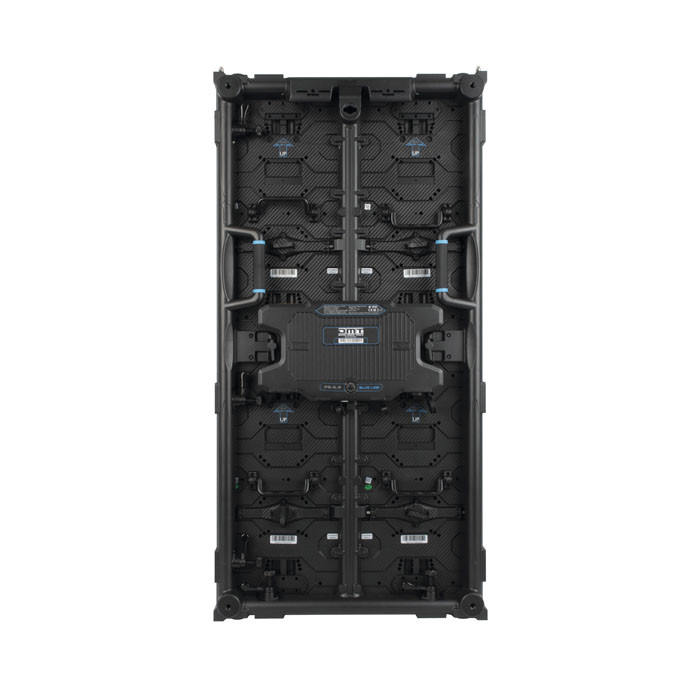

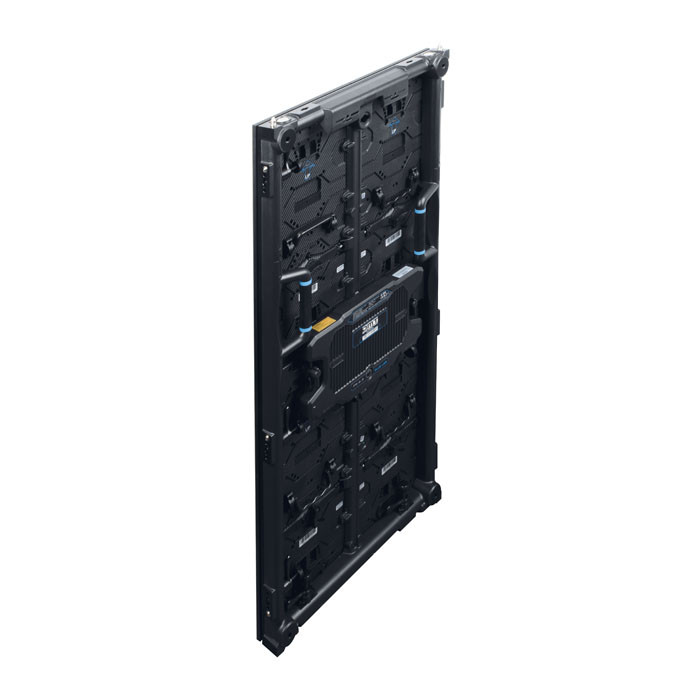

Maintenance                 Front, Rear Service

Rigging
Fixed Mounting Option       M10
Rigging Horizontal Max.     18 Panels
Rigging Vertical Max.       18 Panels
Locking System              Fast Lock System

Thermal Specifications
Maximum Ambient Temperature   45 °C
Minimum Ambient Temperature  -20 °C
Operating Humidity            10-90 %RH

Included Items
Included Cables             Horizontal Power link cable, Horizontal Signal link cable
