DMT Alpha Series A2.6i - Indoor 50 x 50 cm

2.6 mm pixel pitch with up to 1000 nits
Front and rear service
Lightweight cabinet with curving option
NovaStar A5s PLUS receiver card
IP20

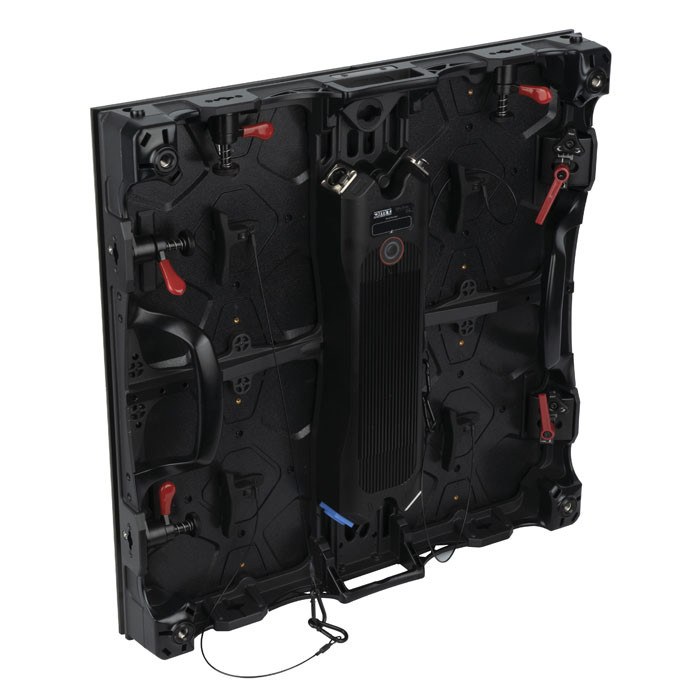

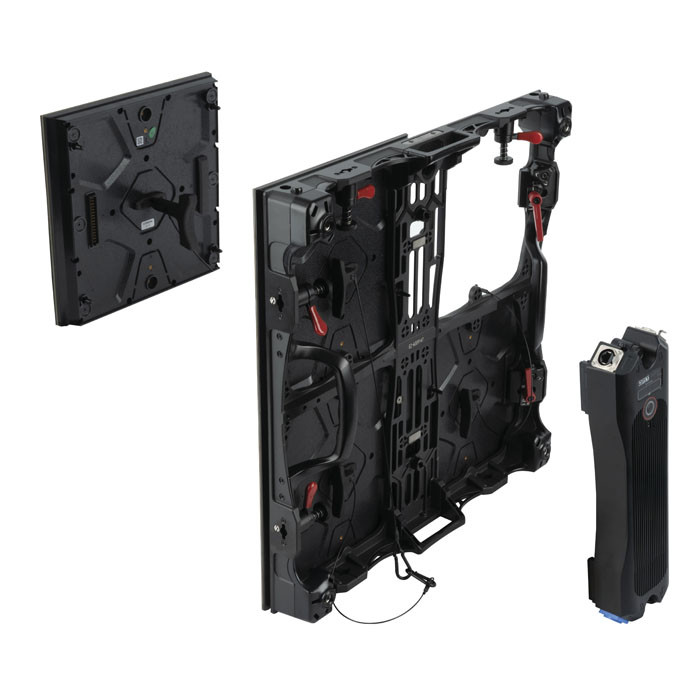

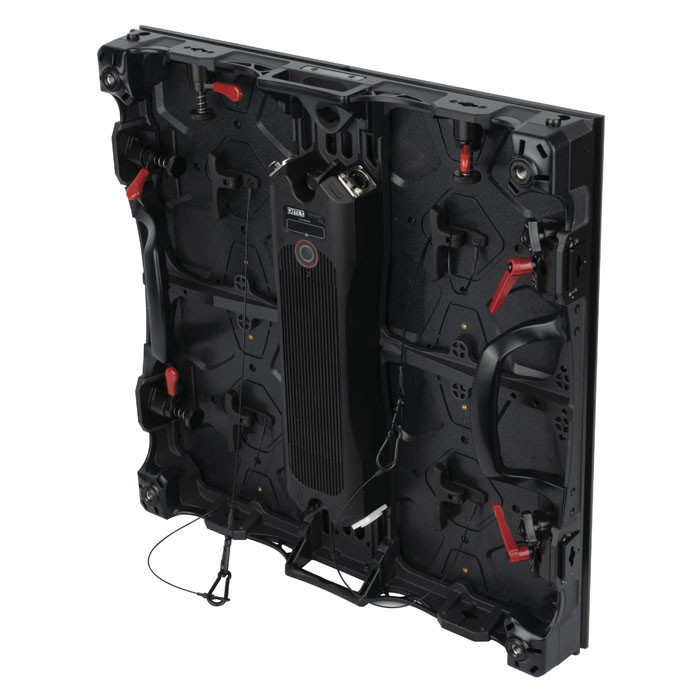

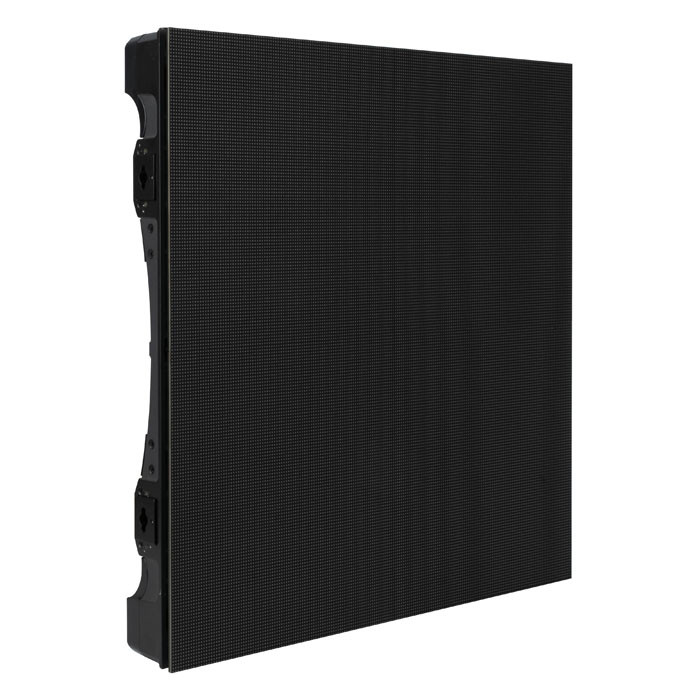

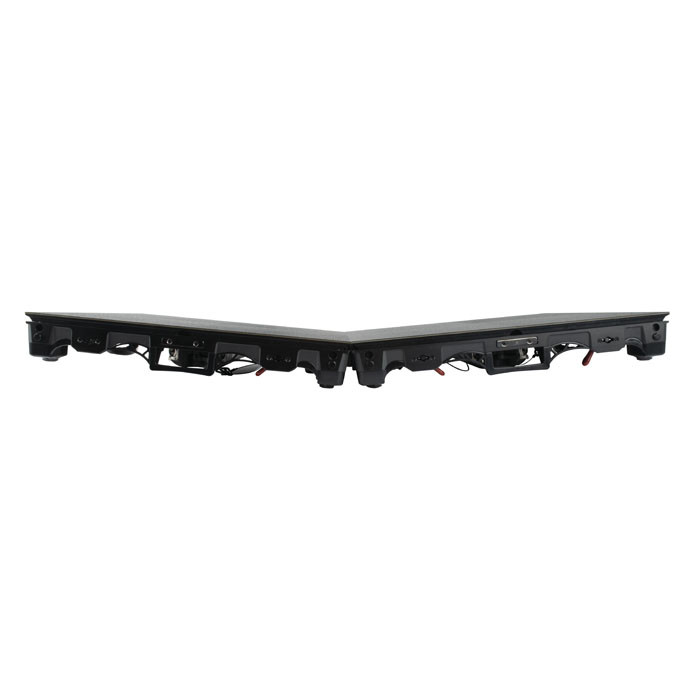

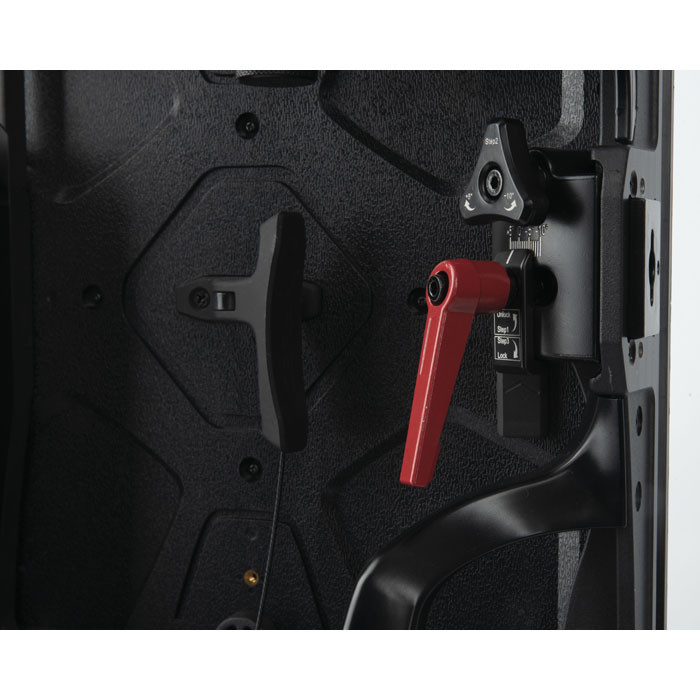

The Alpha Series A2.6i is an indoor HD LED screen with a pixel pitch of 2.6 mm, suitable for short viewing distances. It has a lightweight and modular design and is suitable for a wide range of applications, such as rental and fixed installations. The panel can be front and rear serviced. Mechanical (inter)connection is easy and fast thanks to an innovative quick lock system which uses magnets to aid positioning. This system also allows angled connections between -5 and +10 degrees, which makes creating curved displays very quick and easy. The built-in A5s PLUS receiver card works together flawlessly with any NovaStar video processor.

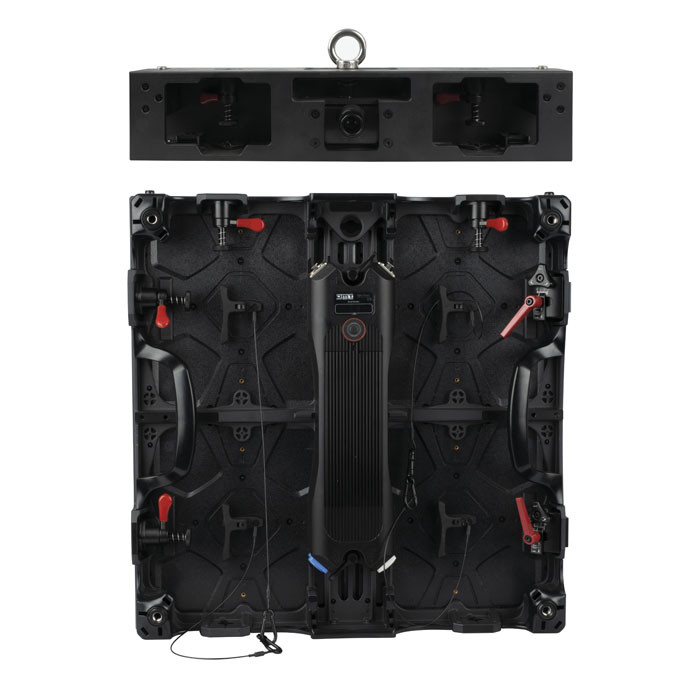

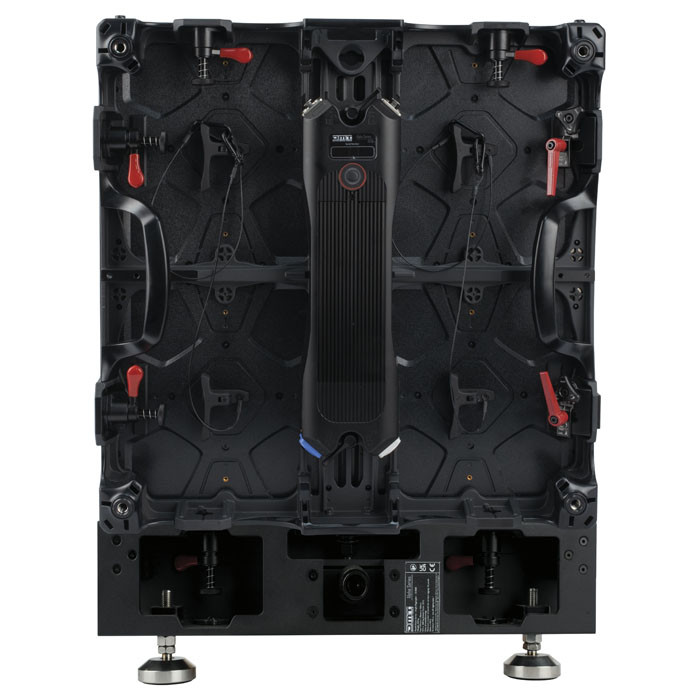

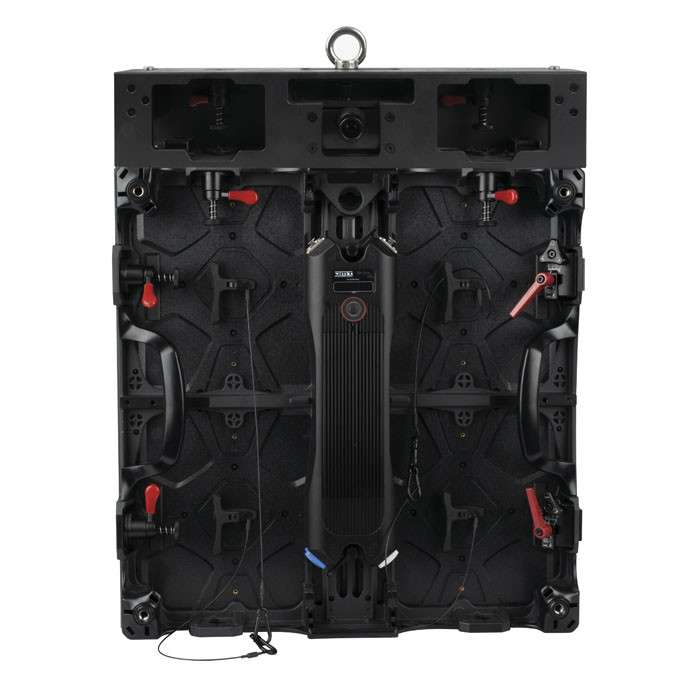

Two types of separately available rigging bars make hanging and stacking a breeze. With the Stacking Bracket (101743), mounting a stacked screen to a Layher or truss construction is safe and quick. Power Pro and ProCat connections ensure safe and solid power and data connectivity.

Optical
Pixel Pitch (Horizontal)          2.6 mm
Pixel Pitch (Vertical)            2.6 mm
Cabinet Resolution (Horizontal)   192 px
Cabinet Resolution (Vertical)     192 px
Module Resolution (Horizontal)    96 px
Module Resolution (Vertical)      96 px
Viewing Angle (Horizontal)        160°
Viewing Angle (Vertical)          160°
Minimum Viewing Distance          26 m
Contrast Ratio                    5000:1
Cabinet Ratio                     1:1

Source
Light Source Type                 LED
LED Type                          Black Face
Brightness                        1000 nits

Control and Programming
Control System                    Novastar
Receiving Card                    A5s PLUS
Screen Refresh Rate               3840 Hz

Electrical Specifications and Connections
Power Supply                      100-240 V AC 50-60 Hz
Power Consumption                 130 W
Power Consumption Average         50 W
Power Connector In                Power Pro Blue
Power Connector Out               Power Pro Grey
Data Connector In                 ProCat
Data Connector Out                ProCat

Mechanical Specifications
Cabinet Width                     500 mm
Cabinet Height                    500 mm
Cabinet Depth                     76 mm
Module Width                      250 mm
Module Height                     250 mm
Weight                            6 kg
Screen Curving Angles            -5, 0, 5, 10°
IP Rating                         IP20 (indoor use only)
Housing                           Magnesium die-cast

Product Properties
Cooling                           Passive
Maintenance                       Front, Rear Service

Rigging
Fixed Mounting Option             M10
Rigging Vertical Max.             18 Panels
Locking System                    Fast Lock System

Thermal Specifications
Maximum Ambient Temperature       45 °C
Minimum Ambient Temperature      -10 °C
Operating Humidity                10-90 %RH

Included Items

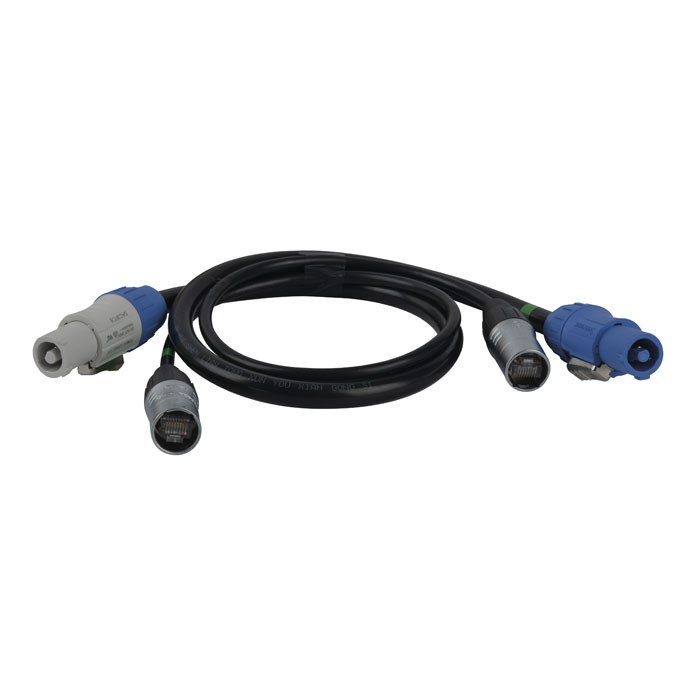

Included Cables                   Horizontal Power link cable, Horizontal Signal link cable
