Suitable for DMT Alpha series
Maximum number of panels: 18
Angled mounting options (-5° to +10°)
Fast Lock system

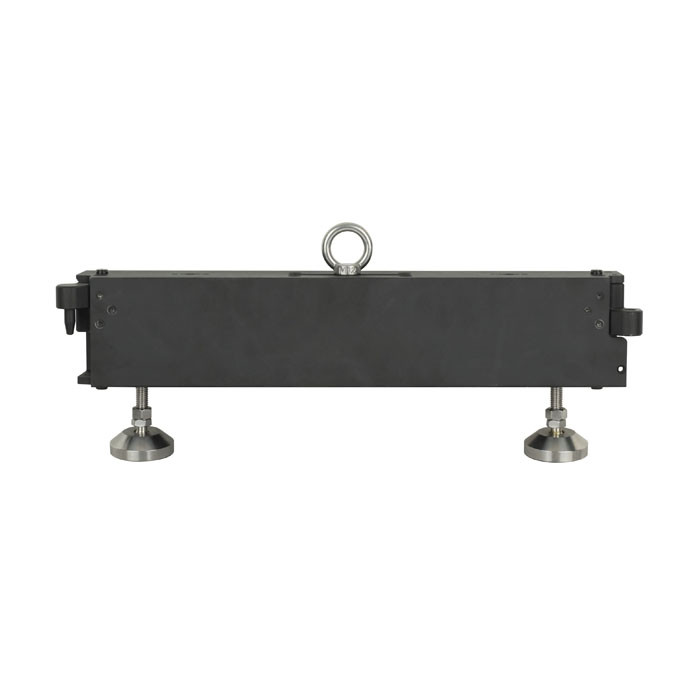

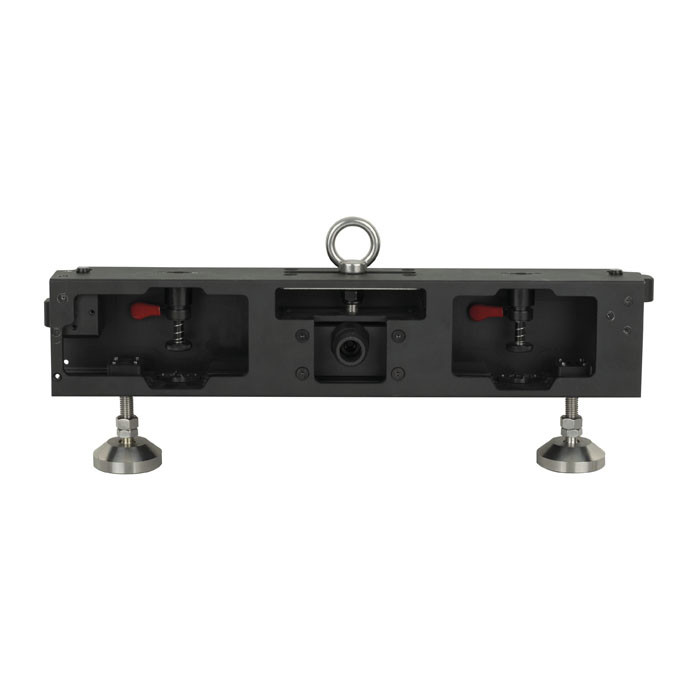

With the dedicated DMT Rigging Bar for DMT Alpha Series A3.9i you can securely hang a maximum of 18 panels vertically. The single version has a rated Working Load Limit (WLL) of 200 kg, while the double version has a WLL of 400 kg. As a result, they comply to all appropriate safety standards.
Mechanical Specifications
Length (mm) 497 mm
Width (mm) 70 mm
Height (mm) 100 mm
Weight 4.8 kg
WLL (kg) 200 kg
Curved Angles -5, 0, 5, 10°
IP Rating IP20 (indoor use only)
Housing Metal
Colour Black
Product Properties
Safety Factor 10:1
Rigging
Mounting Options Eye bolt
Rigging Eye Thread M12
Rigging Horizontal Max. N/A Panels Panels
Rigging Vertical Max. 18 Panels Panels
Locking System Fast Lock System
