DAP NRG-10A Active 10” full-range speaker

180 W RMS, 360 W peak
70 - 20.000 Hz frequency range
Dedicated mic and line inputs
Bluetooth 5.0 with True Wireless Stereo (TWS)
Internal DSP with 4 modes

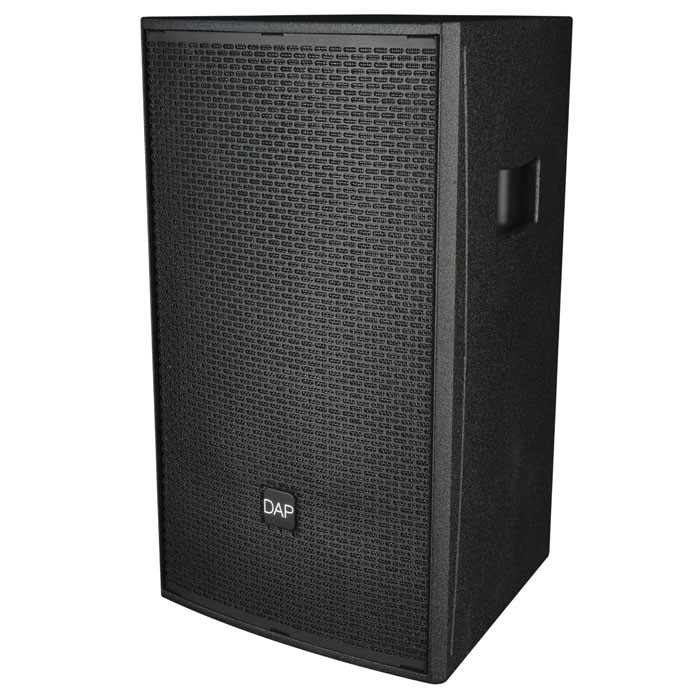

The DAP NRG-10A is an active full-range loudspeaker with a peak power of 360 watts (180 watts continuous RMS). It uses a 10” woofer and a 1” compression driver, and has an internal DSP with 4 useful modes: Contour, Flat, Speech and +Sub, which apply a loudness curve, a flat curve, a high-pass curve or a high-pass with optimised frequency and phase curve specifically for the NRG subwoofer range respectively. The compression driver is coupled to a rotatable horn with a directivity of 90° × 60°. The internal class D amplifier has a switched-mode power supply to keep the weight down and efficiency level up. The internal DSP includes a crossover for the woofer and compression driver, a 2-band limiter, a short circuit protection and thermal protection.

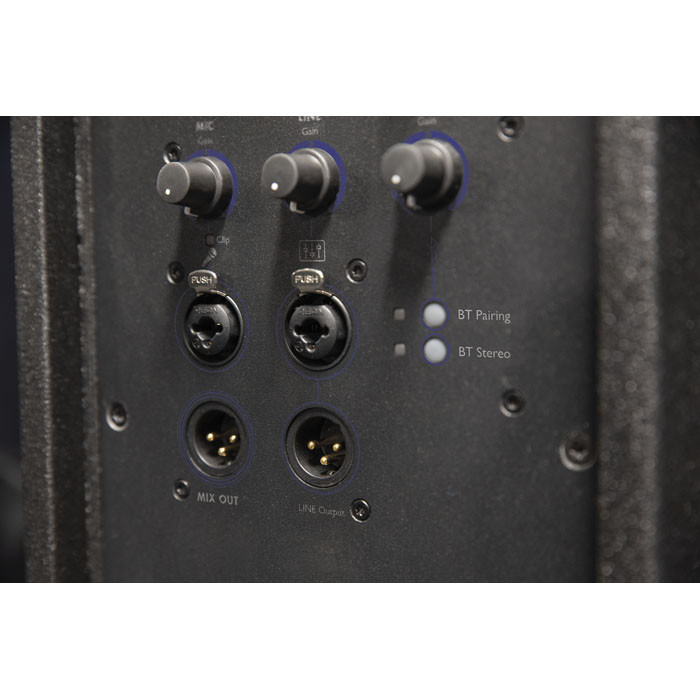

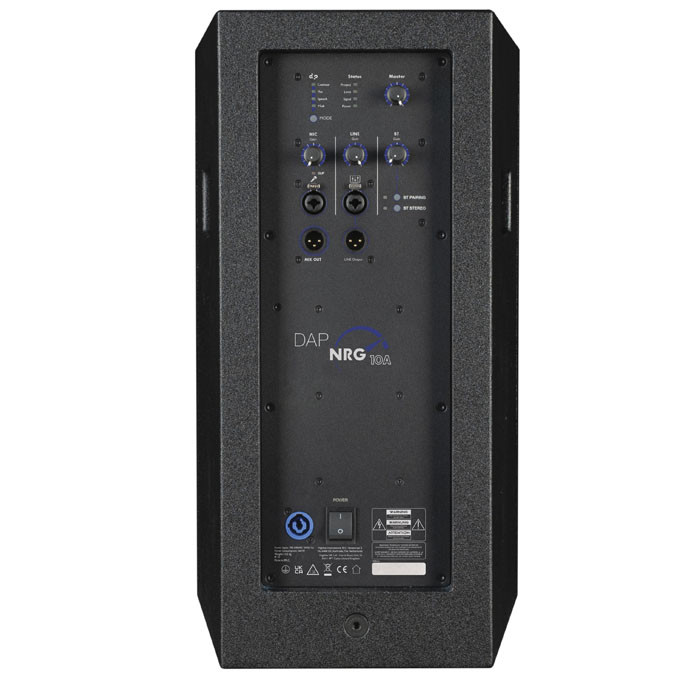

As well as dedicated XLR combo jacks for microphone and line-level signals, the NRG-10A has an integrated Bluetooth 5.0 receiver for playing music from your mobile phone, laptop, or other Bluetooth media player. The Bluetooth receiver features True Wireless Stereo (TWS) and can be configured to enjoy stereo sound when using a pair of NRG full-range speakers. The line output is looped through and there is an additional ‘Mix out’ output with all signals available for driving a second unit or a subwoofer, preferably from the NRG range. Separate gain controls make it easy to adjust the level of the different input signals and a master control sets the overall volume.
The sturdy, lightweight plywood cabinet has a double-angled top hat (0° and 5°), allowing you to point the cabinet downwards when mounting it on a pole. To get the most out of the NRG-10A, we recommend adding an NRG series subwoofer.

Outputs
RMS Output Power Amplifier    180 W
Peak Output Power Amplifier   360 W
Main Outputs                  1
Main Output Connector         3-pin XLR

Inputs
Mono Inputs               2
Mono Input Connector      3-pin XLR

Audio Specifications
THD Level                  < 0.3 %
Signal-to-noise Ratio      > 95 dB
AD/DA Convertor Sample Rate  48 kHz
Audio Latency              1.2 ms
Amp Technology             Class D
Speaker System             2-way
Speaker Sensitivity (1 W/1 m)  94 dB
Maximum SPL at 1 m         115 dB
Frequency Response (-6dB) Minimum  70 Hz
Frequency Response (-6dB) Maximum  20000 Hz
Woofer Diameter            10 "
Woofer Voice Coil          2 "
Woofer Magnet Type         Ferrite
Compression Driver Diameter  1 "
Compression Driver Voice Coil  1.4 "
Compression Driver Magnet Type  Ferrite
Dispersion Angle Horizontal   90°
Dispersion Angle Vertical     60°

Internal Storage
User Presets              Yes
User Presets Capacity     4

Electrical Specifications and Connections
Power Supply              100-240 VAC 50-60 Hz
SMPS Included             Yes
Power Consumption         150 W
Power Connector in        Power Pro Blue

Mechanical Specifications
Height (mm)               550 mm
Width (mm)                325 mm
Depth (mm)                320 mm
Material                  Plywood
Colour                    Black
Weight                    12.5 kg
IP Rating                 IP20 (indoor use only)
Speaker Adapter Diameter  35 mm

Product Properties
LED Indicators            BT Pairing, DSP Mode, Limit, Power, Protect, Signal
Speaker Handles Positions  Left side, Right side

Thermal Specifications
Maximum Ambient Temperature   40 °C
Maximum Surface Temperature   50 °C

Included Items
Included Cables            Power Pro Cable
