DAP NGA-12A Active 12” high-power full range speaker

1000 W RMS, 2000 W peak, max SPL of 128 dB at 1 m
46 - 20,000 Hz frequency range
BT 5.3 with True Wireless Stereo (TWS)
Dedicated mic and line + Hi-Z inputs
Internal DSP with 4 modes, adjustable crossover, EQ, and limiting

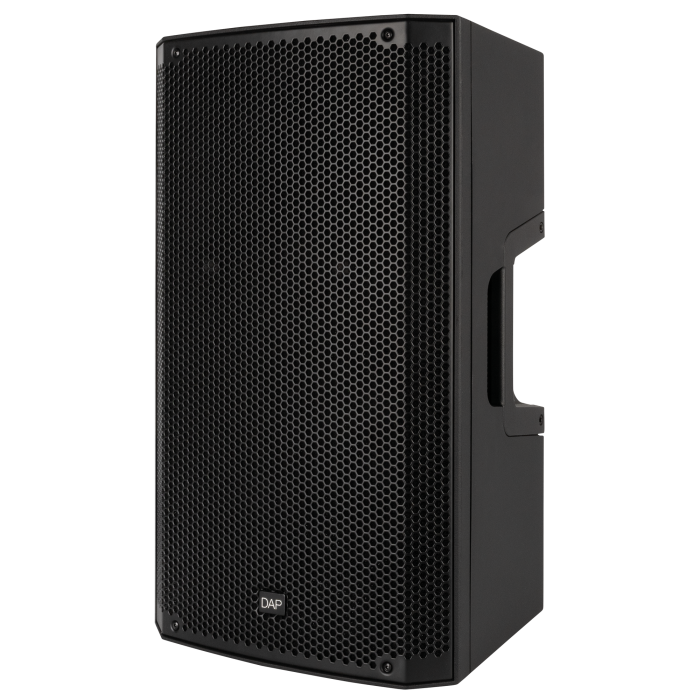

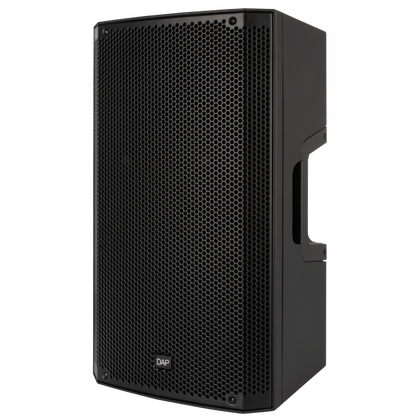

The NGA-12A is a compact active loudspeaker designed for versatile audio applications. It features a 12" woofer paired with a 1.4" compression driver, delivering a frequency response of 46 - 20,000 Hz (-10 dB). The system is powered by a 1000W RMS Class-D amplifier and includes a built-in DSP engine with four selectable user modes.

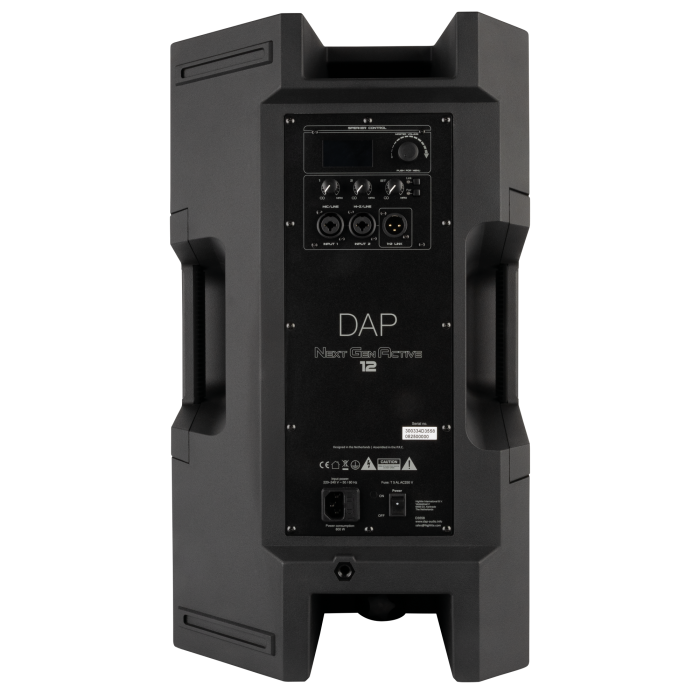

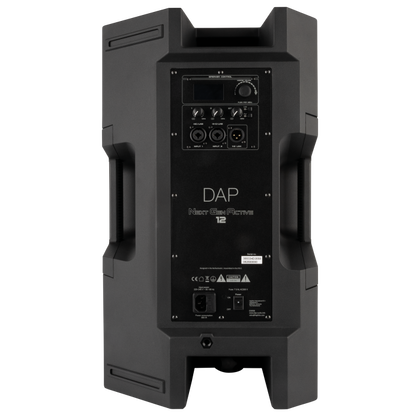

The rear panel offers two combo XLR/jack inputs. One of these accepts both mic and line-level signals, while the other supports Hi-Z sources such as electric guitars. A balanced XLR output is available for linking to additional speakers; this output sums both analogue inputs but excludes the Bluetooth signal.

Further audio shaping is possible via a flexible crossover section with multiple crossover frequency options, as well as a 3-band equaliser with adjustable frequency, Q-factor and EQ type. Delay settings and user-defined EQ presets can be stored directly on the device.

BT 5.3 connectivity enables wireless audio streaming and supports True Wireless Stereo (TWS) pairing. In addition, the NGA-10A can be remotely controlled via a dedicated app, allowing access to output gain, 3-band EQ, speaker name, speaker positioning (wall, free-standing), crossover frequency, user modes and stored presets.

Despite its feature set, the unit remains lightweight and portable, making it suitable for both fixed installations and mobile applications.

Outputs
Low Driver Power             650 W
High Driver Power            350 W
Power Amplifier RMS Output   1000 W
Power Amplifier Peak Output  2000 W
Main Outputs                 1
Main Output Connector        3-pin XLR

Inputs
Mono Inputs                  2
Mono Input Connector         3-pin XLR, TS unbalanced 6.3 mm

Audio Specifications
THD Level %                    < 0.15 %
Signal-to-noise Ratio          > 85 dB
Amp Technology                 Class D
Speaker System                 2-way
Speaker Sensitivity (1 W/1 m)  96 dB
Maximum SPL at 1 m             128 dB
Frequency Response (-3 dB) Minimum   53 Hz
Frequency Response (-3 dB) Maximum   20000 Hz
Frequency Response (-10 dB) Minimum  46 Hz
Frequency Response (-10 dB) Maximum  20000 Hz
Crossover Frequency (High)           2000 Hz
Woofer Diameter                      12 "
Woofer Voice Coil Diameter           3 "
Woofer Magnet Type                   Ferrite
Compression Driver Diameter          1 "
Compression Driver Voice Coil        1.4 "
Compression Driver Magnet Type       Ferrite
Dispersion Angle (Horizontal)        90 °
Dispersion Angle (Vertical)          60 °

Control and Programming
Control Mode                     Bluetooth
Display                          TFT
Display Size                     1.9 "

Electrical Specifications and Connections
Power Supply                     220-240 V AC 50/60 Hz
SMPS                             No
Power Consumption                800 W
Fuse                             5 A
Power Connector In               IEC

Mechanical Specifications
Height (mm)                      615 mm (24.213″)
Width (mm)                       365 mm (14.37″)
Depth (mm)                       353 mm (13.898″)
Material                         Polypropeen
Colour                           Black
Weight                           16.64 kg (36.685 lb)
IP Rating                        IP20 (indoor use only)

Product Properties

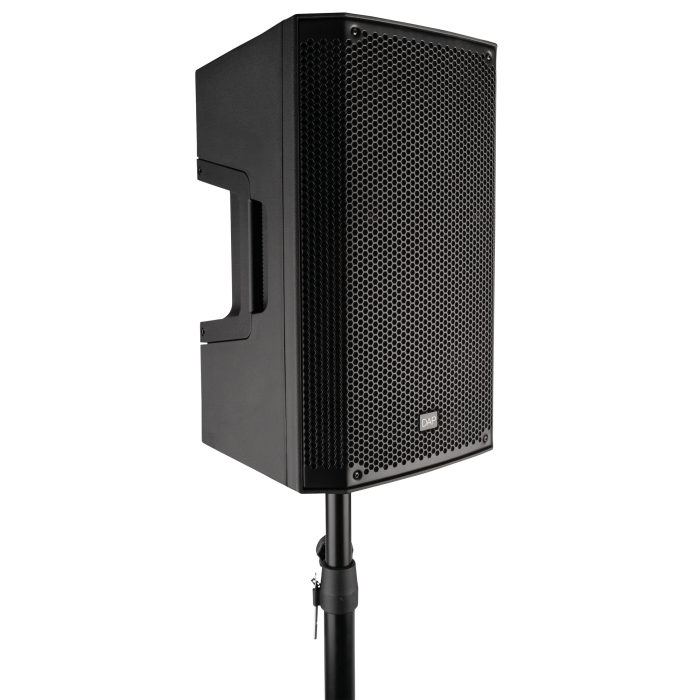

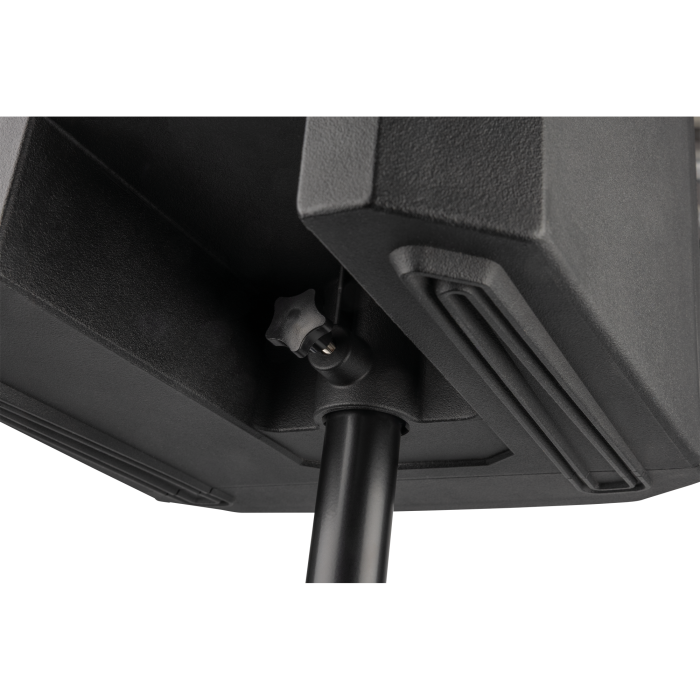

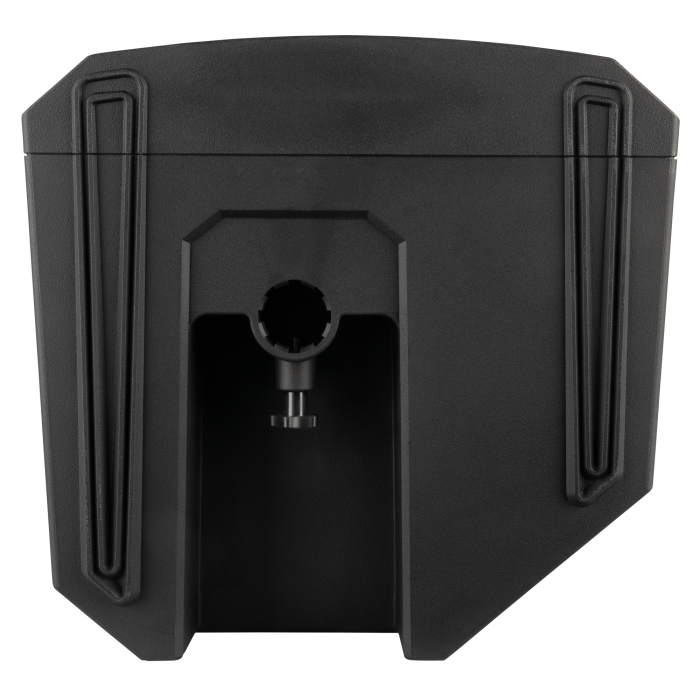

Pole Mount                       35 mm
Electronic Protection            Clip limiter, Overload, Thermal
LED Indicators                   BT Pairing
Rotatable Horn                   No

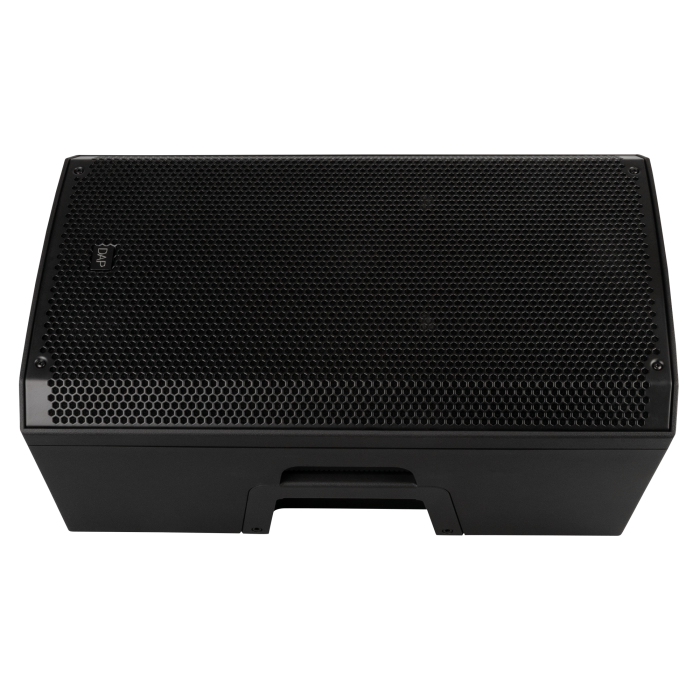

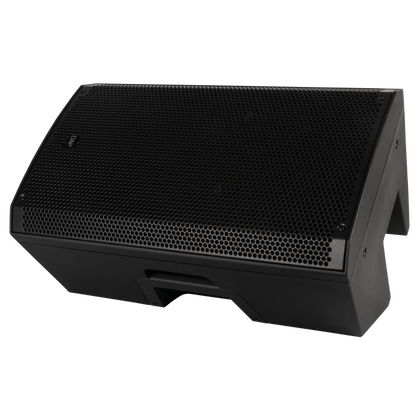

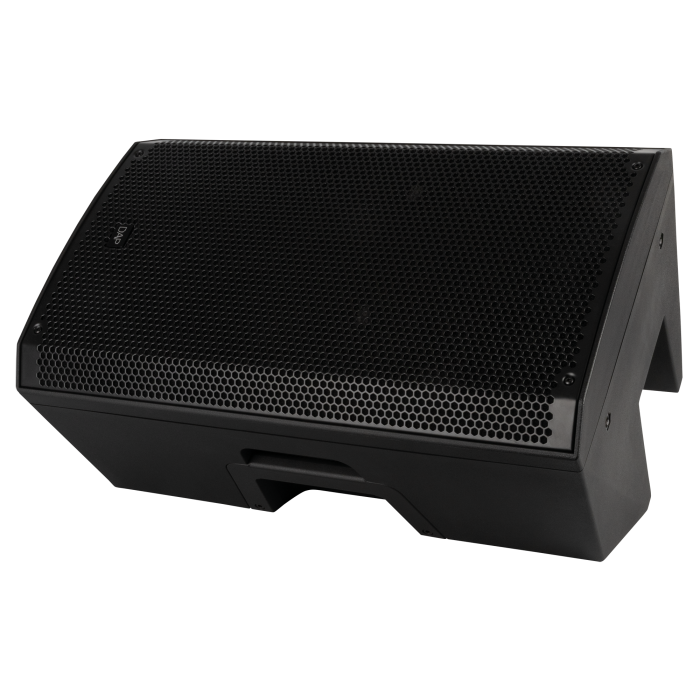

Useable as Monitor/Wedge         Yes

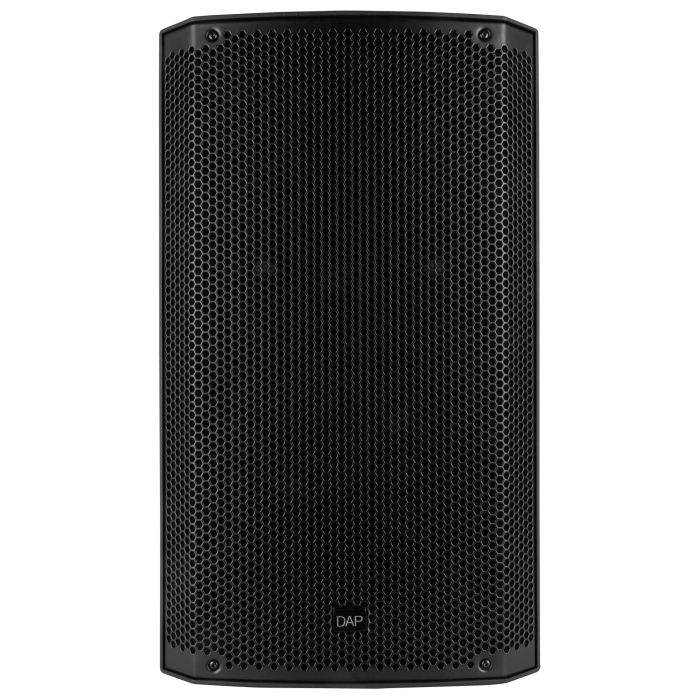

Speaker Grille Material          Steel

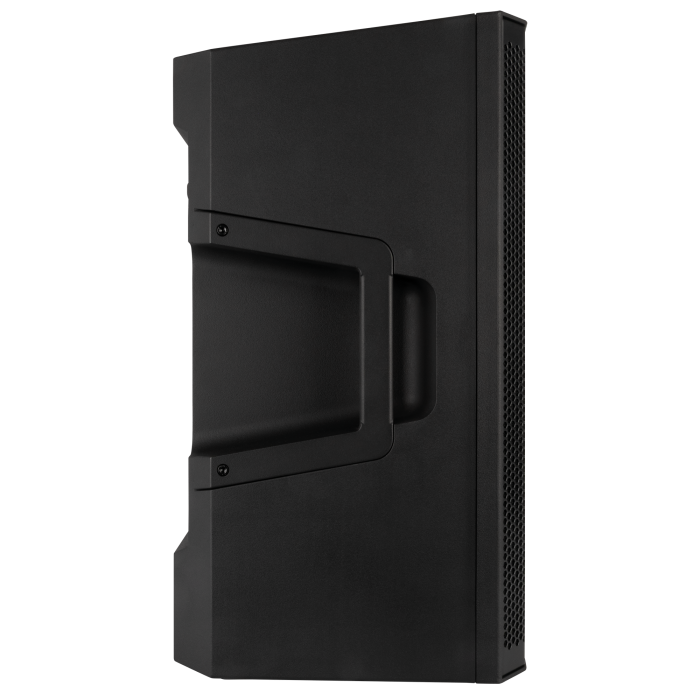

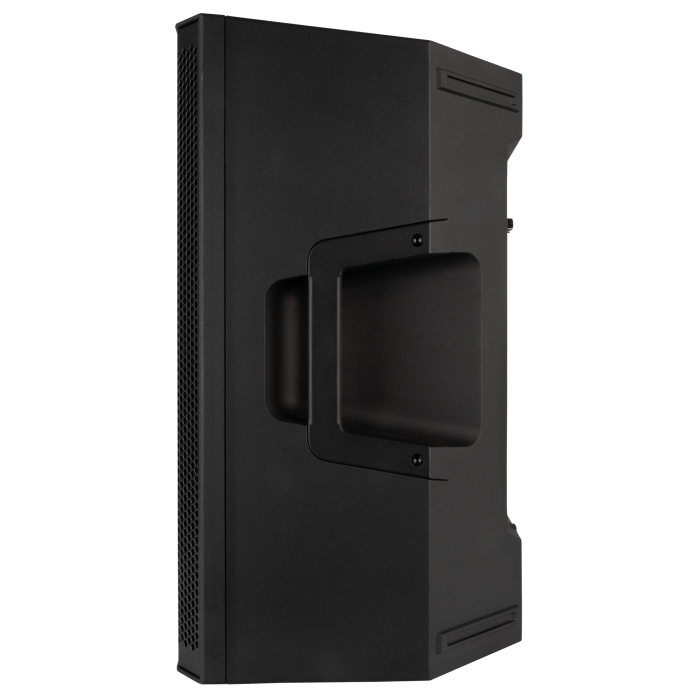

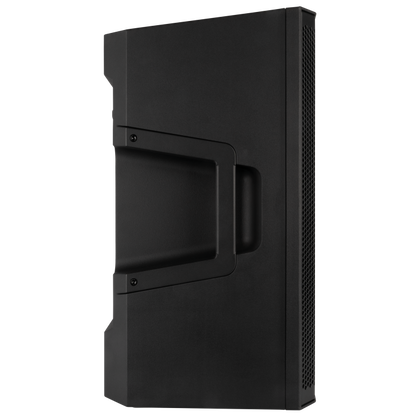

Speaker Handle Positions         Left side, Right side, Top

Rigging

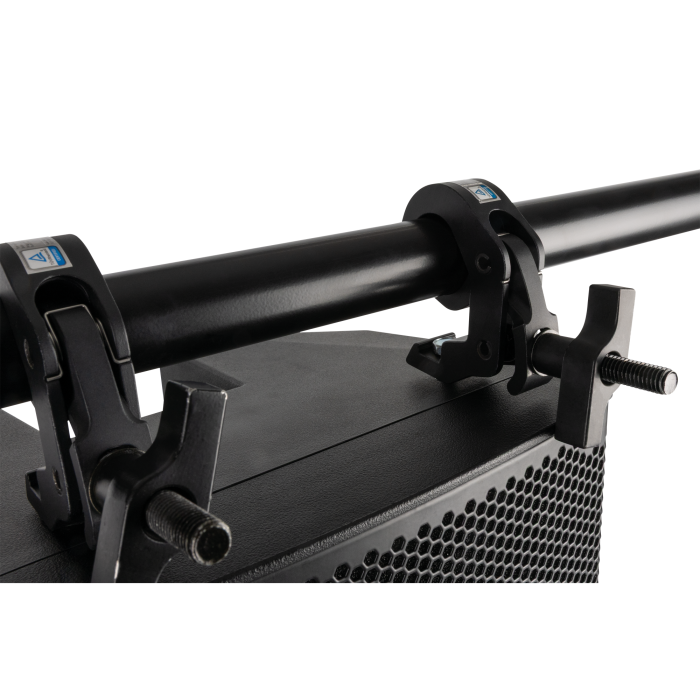

Rigging Options                  Flying
Rigging Eye Thread               M10

Included Items
Included Cables                  IEC cable
