Single zone
Control up to 4 channels
DMX and RF (868 MHz)
10 built-in programs, 4 user-programmable scenes
Touch sensitive

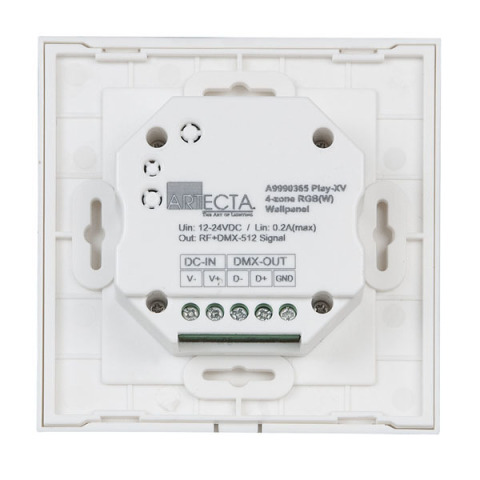

The wall panel generates a RF and DMX signal for RF receivers or DMX dimmers.
The Play wall panels are available in several combinations of RF (radio frequency), DMX and Wi-Fi. RF panels send out an RF signal to wireless RF receivers. These panels can be used together with an additional remote control. DMX versions generate a DMX signal for direct use with DMX compatible products. Wi-Fi panels can be controlled with the Easy Lighting app, available for iOS and Android devices.
Control and Programming
Control Mode DMX, RF
Electrical Specifications and Connections
Power Supply 12-24 VDC
Power Connector in Open End
Mechanical Specifications
Length (mm) 86 mm
Height (mm) 31.5 mm
Width (mm) 86 mm
Weight 0.13 kg
IP Rating IP20 (indoor use only)
Colour White
