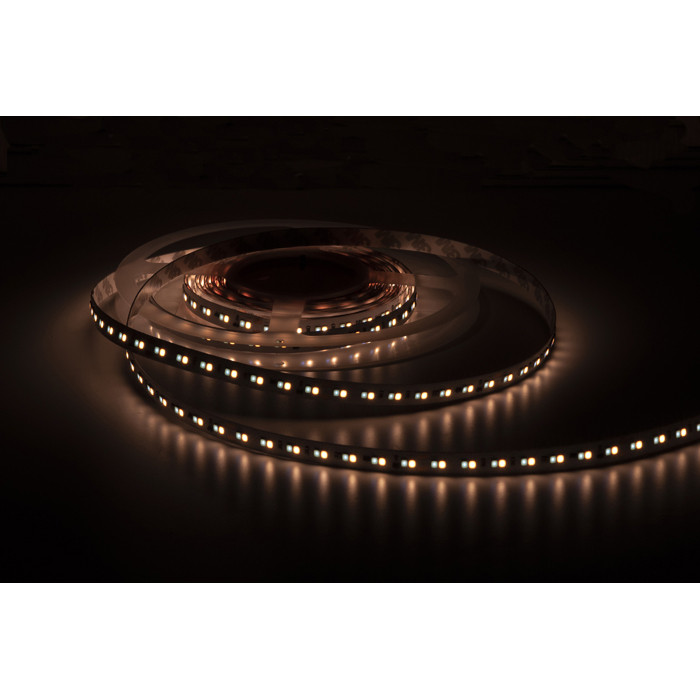

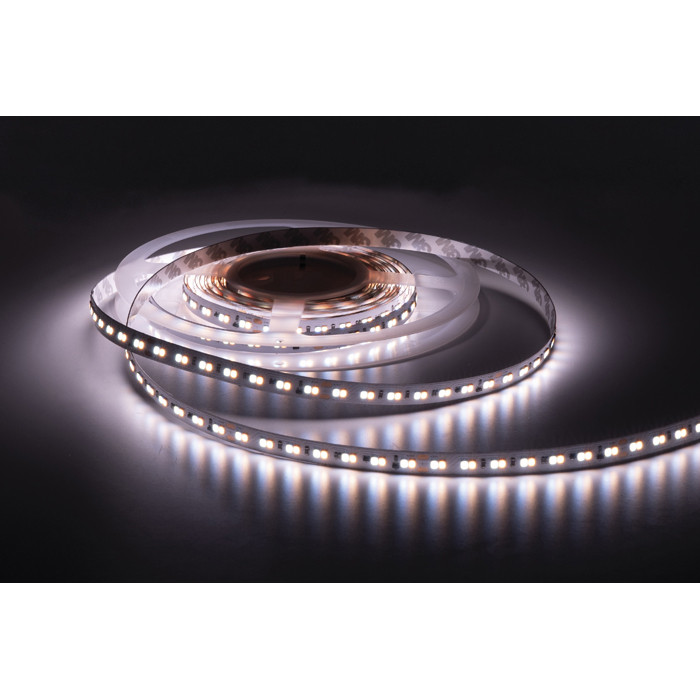

Artecta Havana Ribbon Warm on Dim

Warm White LED Strip - 15 W/m - 840 LEDs - 5 m

75 W WW LED Strip

Warm on Dim technology

CCT 2000 K - 2700 K

5 metre (16.4 ft)

Self-adhesive 3 m backing

The Artecta Havana Ribbon Warm on Dim is a bright 75 watt Warm White LED strip with a high >90 CRI. At 100 % brightness, it projects a Warm White 2700 K colour temperature. When using an external dimmer, the colour temperature lowers seamlessly to 2000 K WW light at 5 % output, like a traditional tungsten fixture.

Please note that we strongly recommend mounting the Havana Ribbon LED strip in aluminium profiles. These have a high heat dissipation to prevent overheating. This is especially important if you want to set the light intensity higher than 80 %.

Source

Light Source Type LED

Light Source Quantity/m 168

Light Source Power 1 W

LED Colour Type Warm-on-Dim

Lumen Total 7250 lm

Lumen output/m 1450 lm

CRI 90

CCT Minimum 2000 K

CCT Maximum 2700 K

Optical

Beam Angle Circular 120 °

Control and Programming

Dimmable Yes

Electrical Specifications and Connections

Power Supply 24 VDC

Power Consumption 75 W

Power/1 m 15 W

Pins 2

Mechanical Specifications

Length (m) 5 m

Cutting Length 83 mm

Height (mm) 1,4 mm

Width (mm) 10 mm

Weight 0.22 kg

IP Rating IP20 (indoor use only)

PCB Colour White

Thermal Specifications

Maximum Ambient Temperature 50 °C

Minimum Ambient Temperature -20 °C

Product Compliance

Energy Efficiency Class T/B/D
