Artecta Havana Neon RGB Pixel 5 m reel

Seamless and uniform light output

Pixel control by SPI (P943F)

24 V DC power supply

Up to 17 m with one DMX universe

10 pixels per metre

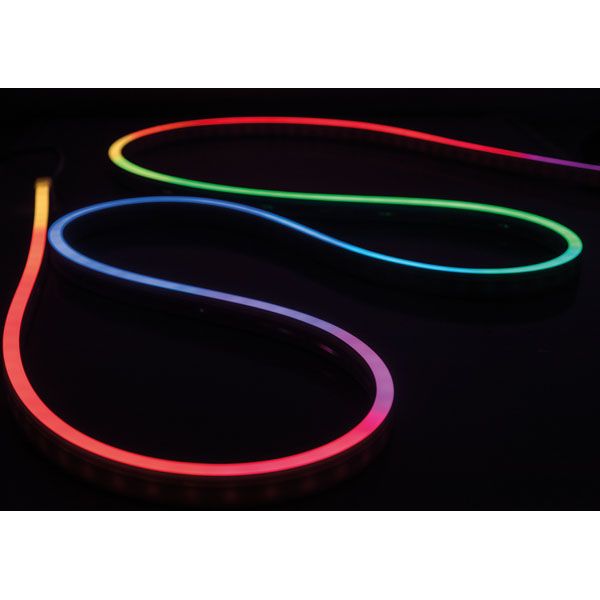

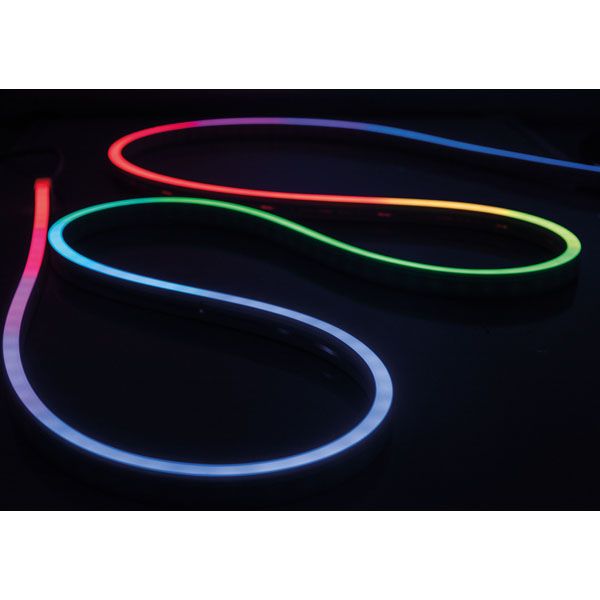

The Havana Neon RGB mimics the effect of the traditional neon signs and combines it with pixel control allowing to make the most dynamic flows and pixelated effects. The flat and diffusive silicon jacket mixes the colours perfectly and creates a seamless and uniform lightoutput. Up to 17 m of Havana Neon RGB can be connected together allowing you to create the most creative setups and installations.

Source

Light Source Type LED

Light Source Quantity/m 60

Light Source Power 72 W

LED Colour Type RGB

Light Source System SW2811

Lumen Total 140 lm

Lumen Red 35 lm

Lumen Green 85 lm

Lumen Blue 20 lm

Optical

Beam Angle Circular 120°

Control and Programming

Protocols SPI

Dimmable Yes

Electrical Specifications and Connections

Power Supply 24 VDC

Power Consumption 72 W

Power/1 m 14.4 W

Driver Excluded

Mechanical Specifications

Length (m) 5 m

Maximum Length (m) 5 m

Height (mm) 18 mm

Width (mm) 10 mm

Weight 1.247 kg

IP Rating IP67

Thermal Specifications

Maximum Ambient Temperature 60 °C

Minimum Ambient Temperature -25 °C
