Easy to install
Wide range of SPI controls built-in
12 to 24 V Powersupply
Controllable by DMX

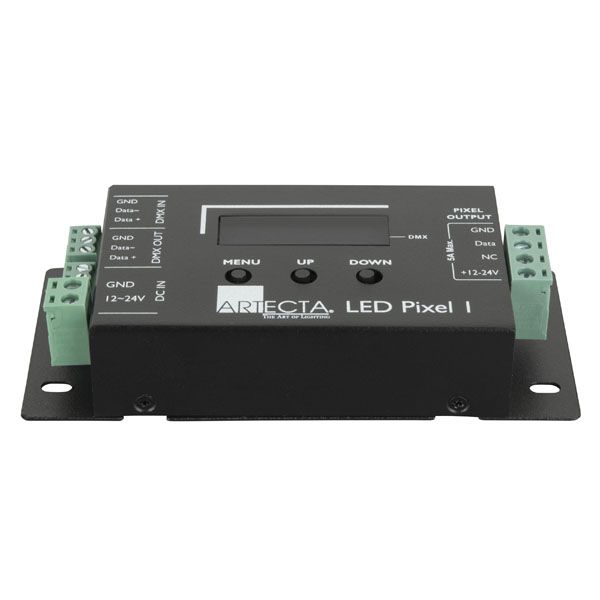

The Artecta LED Pixel 1 is a DMX to SPI converter with multiple functions
SPI is being used to pixel-control digital LED strips. With the LED Pixel 1 you have the possibility to choose one of 6 SPI protocols to control the LED strips.
Control and Programming
Control Mode DMX
DMX Channels 512
Protocols SPI
Electrical Specifications and Connections
Power Supply 12-24 VDC
Output Voltage 12-24 VDC
Maximum Output Current (A) 6 A
Power Connector in Terminal
DMX Connector in Terminal
DMX Connector out Terminal
Mechanical Specifications
Length (mm) 115 mm
Height (mm) 24 mm
Width (mm) 55 mm
Weight 0.16 kg
IP Rating IP20 (indoor use only)
Housing Metal
Colour Black
Thermal Specifications
Maximum Ambient Temperature 55 °C
Minimum Ambient Temperature -10 °C
Certifications/Qualifications
Energy Efficiency Class T/B/D
