Artecta Cartago Jade 2835 - 128 - CCT

4000 K - CRI 90 - 1258 lm/m - 128 LEDs/m - 9.6 W/m - 24 V

Neutral white 4000 K colour temperature
CRI 90
24 V DC, 9.6 W/m
128 LEDs per metre
IP68

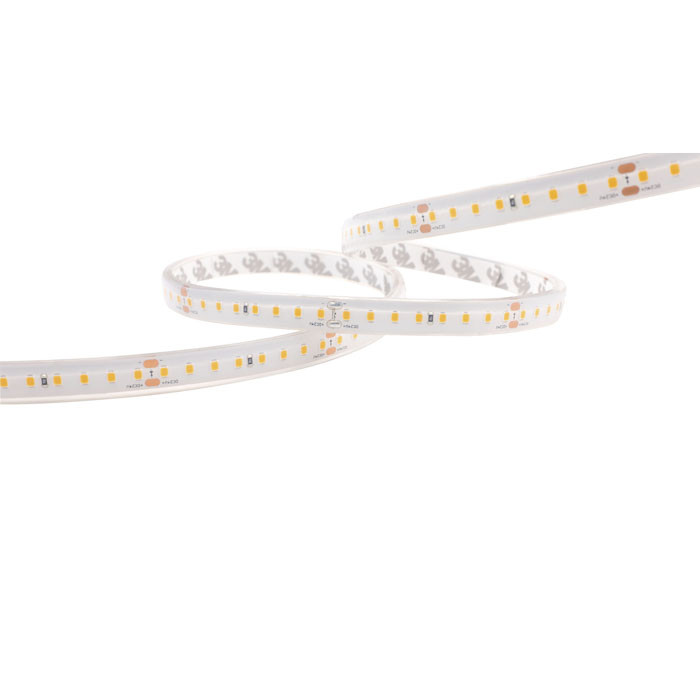

The Artecta Cartago Jade 2835 - 128 is an IP68-rated LED strip with 128 LEDs/m and a silicone-filled silicone sleeve, suitable for use in humid environments (please check with our product specialists before using it outdoors). This also means that its heat dissipation is reduced, so mounting it in a closed profile is not recommended. The LED strip is available in colour temperatures from soft white to neutral white (2700 K to 4000 K) and has a high CRI of 90. With a self-adhesive backing it is easy to install on a smooth, degreased surface.
The Cartago Jade series complies with the latest energy saving regulations (EPREL). Please note that permanent outdoor installation of the LED strips is not recommended as the silicone is not UV resistant and due to manufacturing conditions, photometric data may vary between production batches within the EU directive.

Source
Light Source Type        LED
Light Source Quantity/m  128
Light Source Power       0.075 W
LED Colour Type          NW
Light Source System      SMD2835
Lumen Total              6290 lm
Lumen output/m           1258 lm
CRI                      90
CCT                      4000 K

Electrical Specifications and Connections
Power Supply             24 VDC
Power Consumption        48 W
Power/1 m                9.6 W

Mechanical Specifications
Length (m)               5 m
Cutting Length           62.5 mm
Height (mm)              4.5 mm
Width (mm)               12.5 mm
Weight                   0.25 kg
IP Rating                IP68
PCB Colour               White

Thermal Specifications
Maximum Ambient Temperature  50 °C
Minimum Ambient Temperature -20 °C

Product Compliance
Energy Efficiency Class   E
