400 W RMS/1600 W peak
Suitable in conjunction with Xi top cabinets
Smooth frequency response
Rotatable logo
Ultra compact and lightweight design

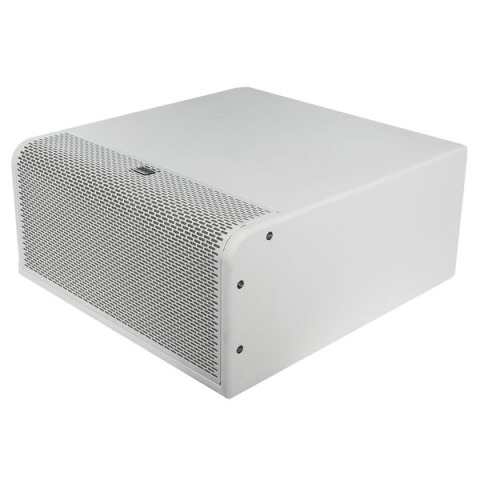

The DAP Xi-28 MKII is a compact, lightweight 2x 8-inch subwoofer with a bass-reflex housing to create a powerful and accurate bass reproduction. With a peak power of 1600 watts (400 W RMS), high sound pressure levels can be created. The Xi-28 is designed to be used in conjunction with the Xi-series top cabinets for a full-bodied full-range sound.
The Xi-28 MKII has a modern design and can be placed flat against the wall by using special brackets. This makes it very suitable for situations where the available space is limited. You can also choose from a black and white model. This makes it suitable for any environment.
The sub can be connected via a recessed 4-pin speaker connector to a 4-Ohm audio infrastructure. This allows bi-amp control. Only 2 pins are used in passive filtering due to the internal filter.
Inputs
RMS Input Power 400 W
Peak Input Power 1600 W
Passive Input Connection Speaker Connector 4 pole
Audio Specifications
Speaker System Subwoofer
Speaker Sensitivity (1 W/1 m) 100 dB
Speaker Impedance 4 Ω
Maximum SPL at 1 m 132 dB
Frequency Response Minimum 45 Hz
Frequency Response Maximum 4000 Hz
Frequency Response (-10dB) Minimum 45 Hz
Frequency Response (-10dB) Maximum 4500 Hz
Woofer Diameter 8 "
Woofer Voice Coil 2 "
Woofer Magnet Type Ferrite
Subwoofer Dispersion Angle Horizontal 360°
Subwoofer Dispersion Angle Vertical 180°
Mechanical Specifications
Height (mm) 240 mm
Width (mm) 520 mm
Length (mm) 540 mm
Material Wood
Material Thickness 15 mm
Colour White
Finish Painted
Weight 19.5 kg
IP Rating IP20 (indoor use only)
Product Properties
Pole Mount No
Speaker Grill Material Steel
Thread M6
Rigging
Mounting Options Bracket, Wall
Mounting Positions Horizontal, Vertical
