Wentex P&D Transport Trolley with Full Hardware Set 4m

Complete hardware set for 4 m high Pipe & Drape setups
Covers up to 27 metres in width
Telescopic uprights and supports for flexible configurations
Durable, powder-coated components
Easy transport and storage with the included trolley

The P&D Transport Trolley with Full Hardware Set is a complete and convenient solution for setting up a professional Pipe and Drape system with a height of up to 4 metres. Designed for quick deployment and easy transport, this set includes all required hardware components to create a 27-metre wide backdrop. It is ideal for events, exhibitions, theatres, and stage productions.

While the curtains are not included, this allows you the flexibility to choose the fabric type, colour, and opacity that best suits your specific application.

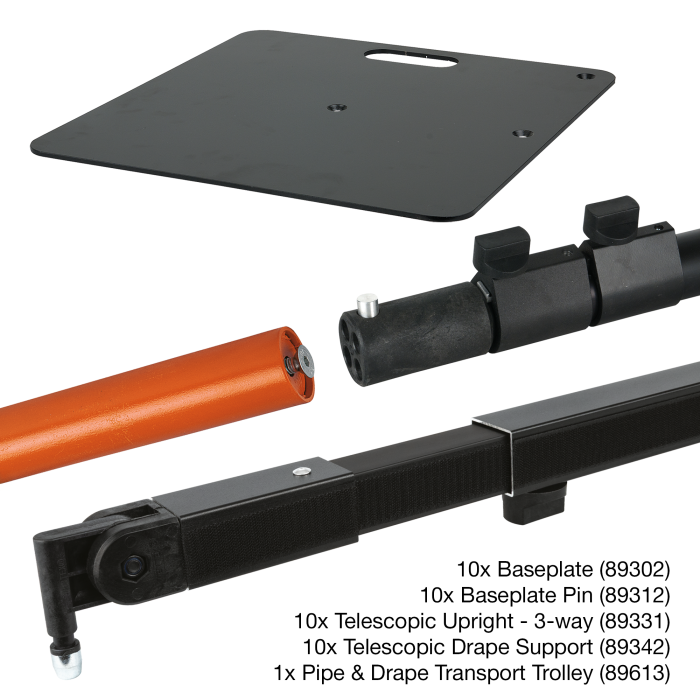

Included in this full hardware set:

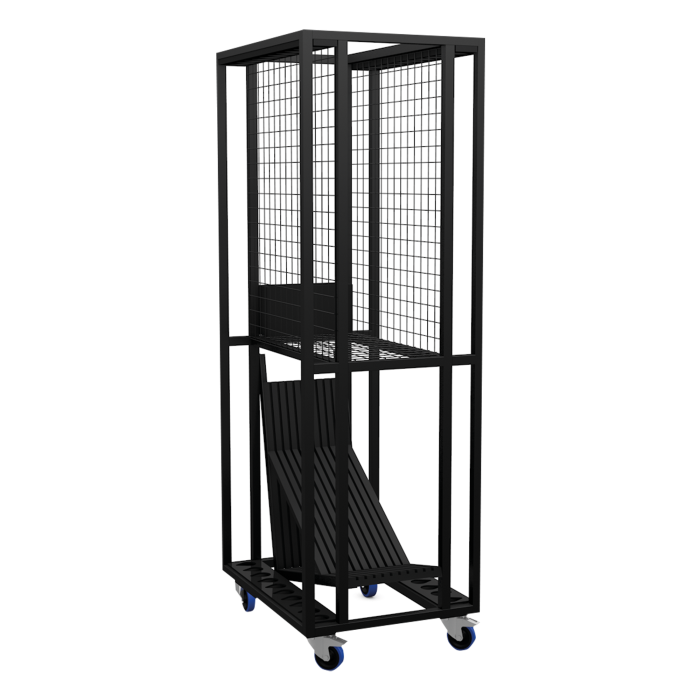

1x Wentex Pipe & Drape Transport Trolley
10x Wentex Base Plate - Powder-coated (600 x 600 mm (W x L) - 14 kg - black)
10x Wentex Base Plate Pin, Orange (400 mm)
10x Wentex Telescopic Upright - 3-way (180 - 420 cm (H) - black)
10x Wentex Telescopic Drape Support (180 - 300 cm (L) - black)

Note: Curtains are sold separately.

Mechanical Specifications
Height (mm)         1933 mm (76.102″)
Depth (mm)          800 mm (31.496″)
Minimum Height (m)  1.8 m (5.906 ft)
Maximum Height (m)  4.2 m (13.78 ft)
Width (mm)          600 mm (23.622″)
Colour              Black
Material            ABS, Aluminium, Metal
Finish              Powder Coating
Weight              290 kg (639.34 lb)

Product Properties
Castors             4
Castor Size         100 mm
Castor Type         Swivel with brake + without brake
