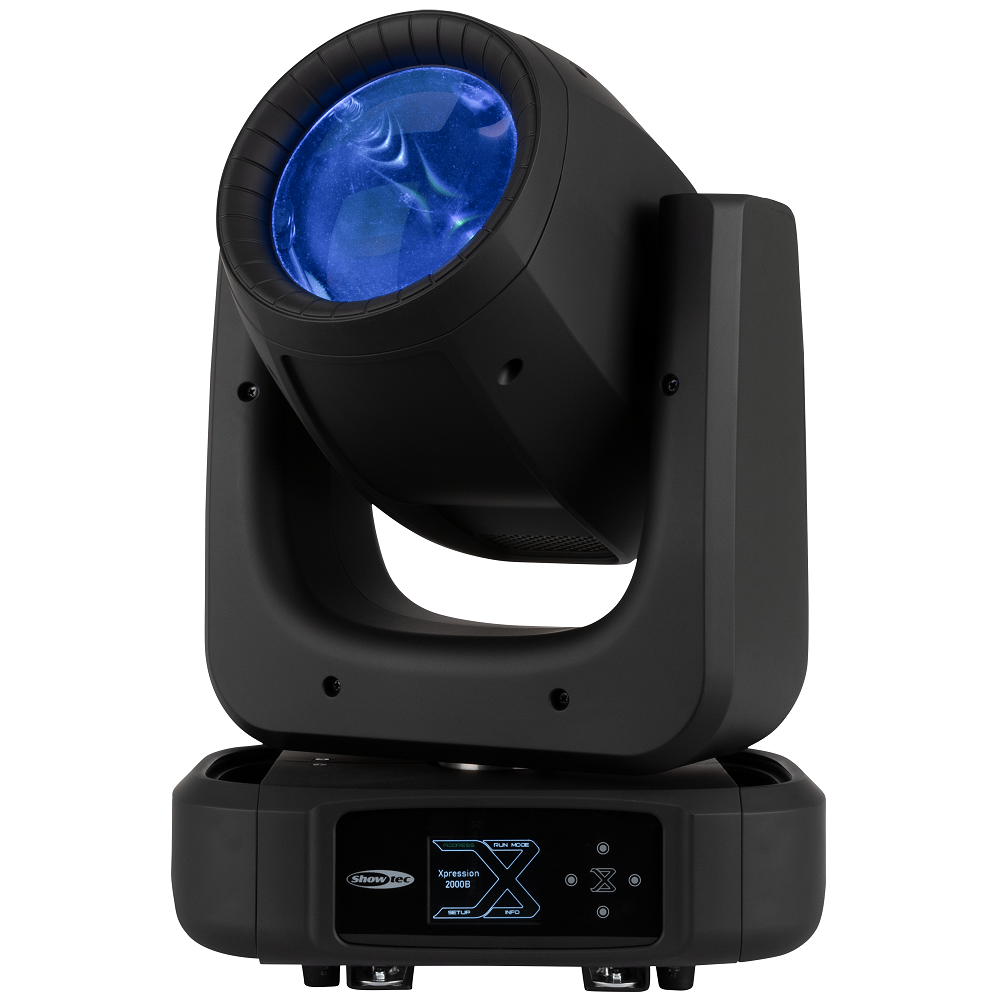

Showtec Xpression 2000B - Beam

150 W LED Beam Moving Head

8 and 48-facet circular prisms with overlay

13 gobos + open

14 colours + open

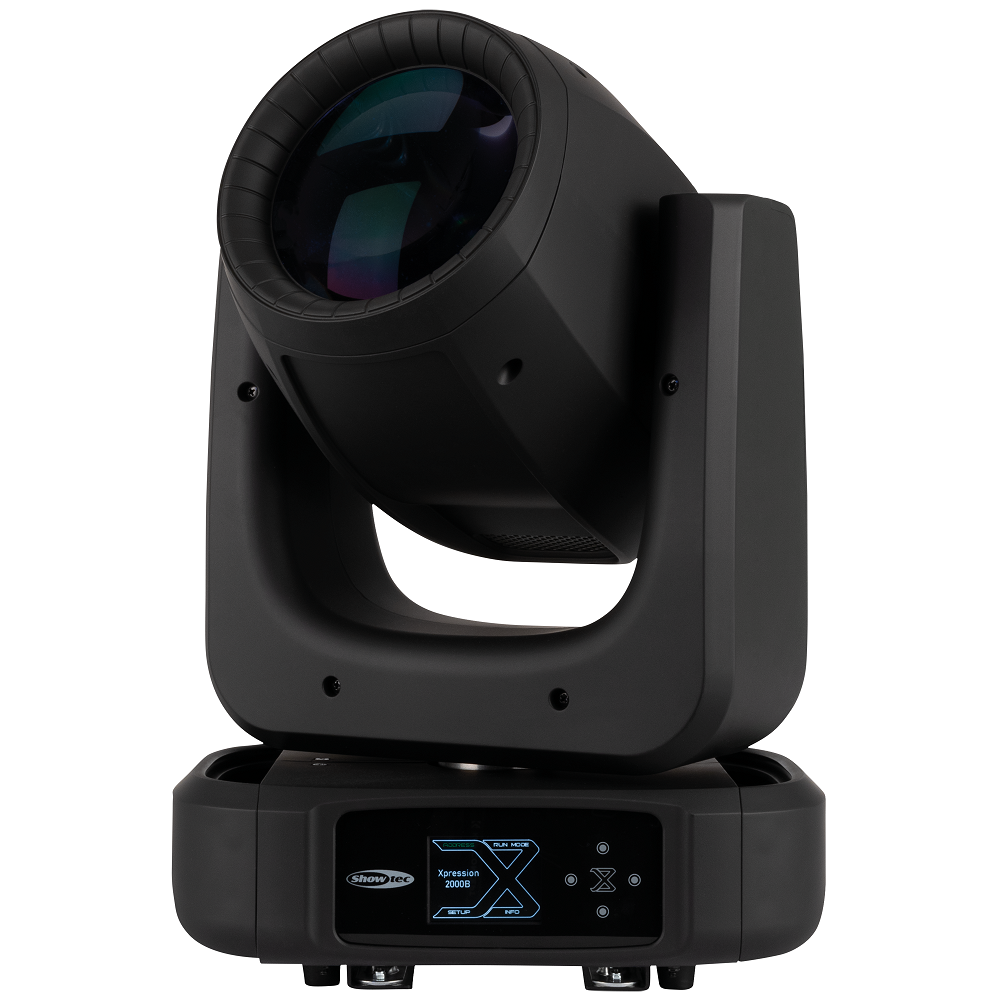

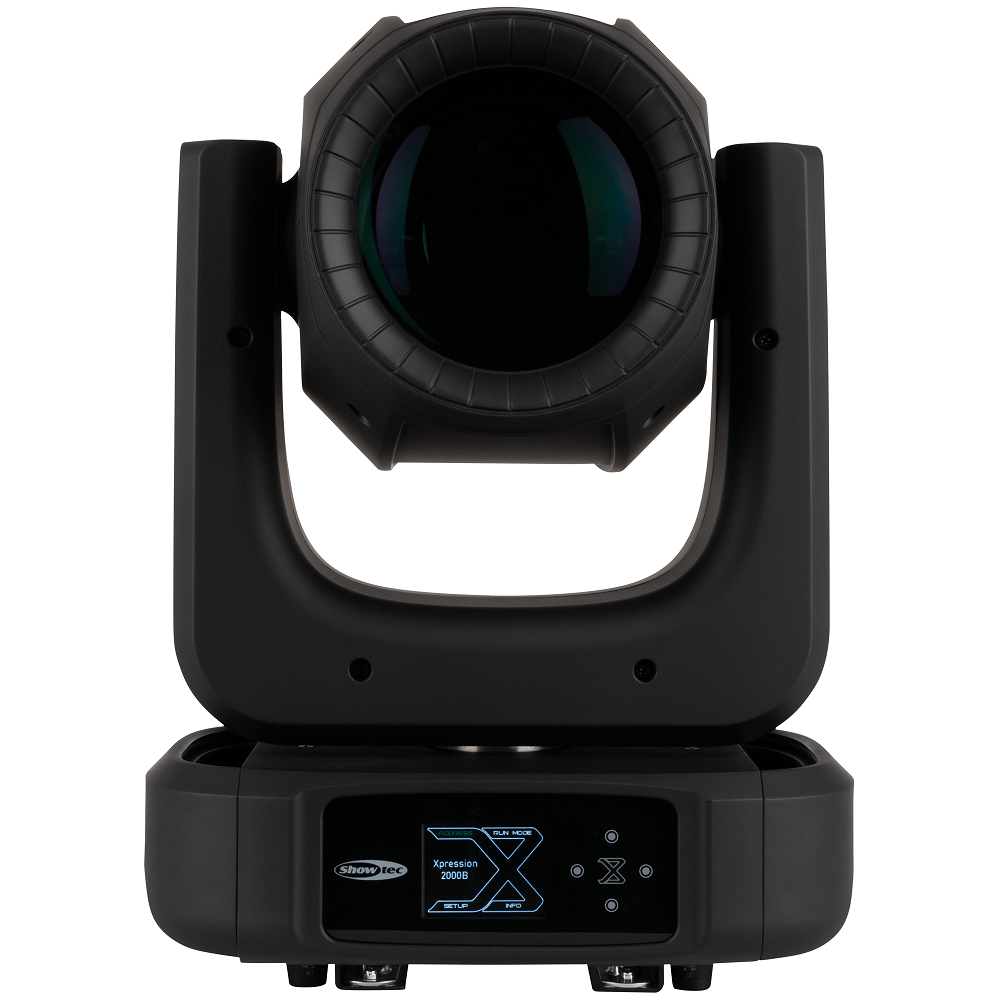

Endless tilt, motorised focus, and frost filter The Showtec Xpression 2000B - Beam is a bright, medium-sized LED moving head with a beam angle of 2°, a large lens (12.5 cm) and an output of 2392 lumens, suitable for indoor venues. It features a dichroic colour wheel with 14 colours + open, a metal gobo wheel with 13 gobos + open, and dual circular prisms with 8 and 48 facets, that can be overlaid and rotated for dynamic effects such as a moonflower effect. Other features include a frost effect, motorised focus, precise 16-bit pan and endless tilt, and adjustable PWM (1,200 - 15,000 Hz). All colour and gobo effects are perfectly matched across the Xpression series, ensuring seamless integration with other fixtures in the range.

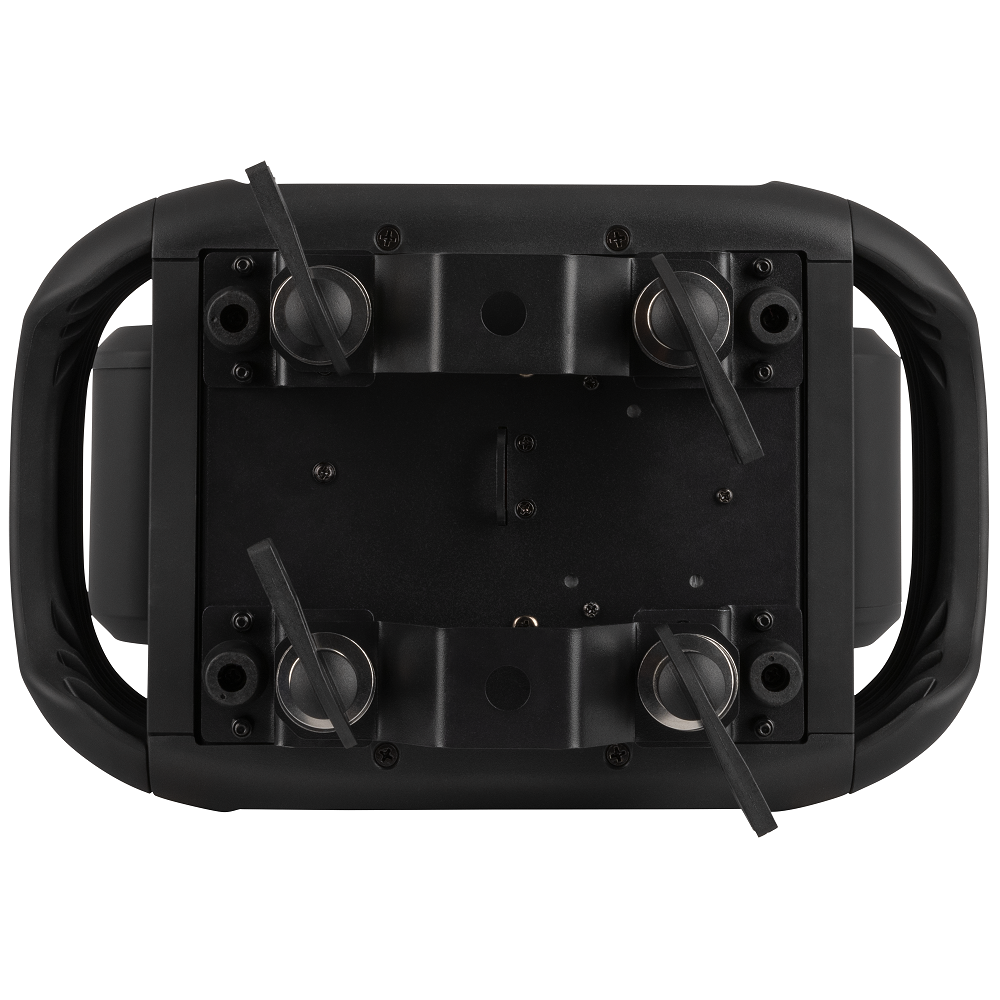

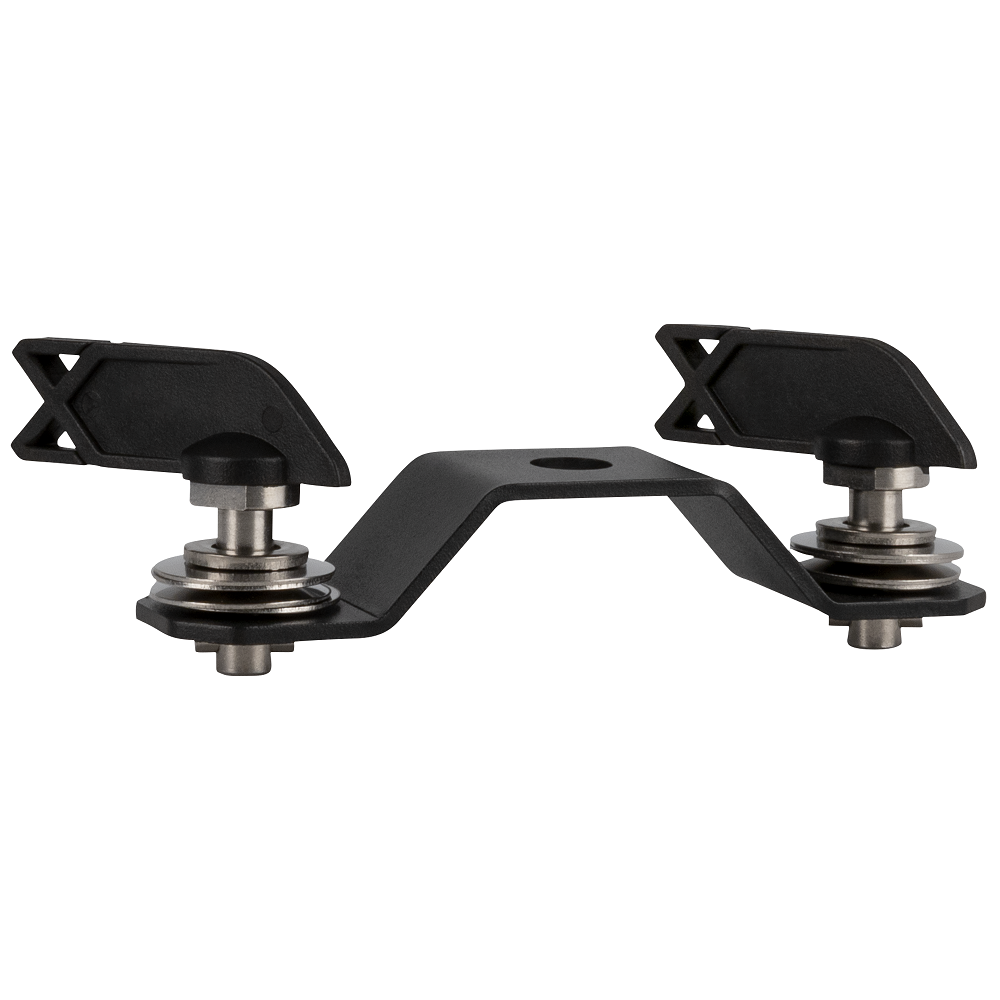

Control modes include DMX/RDM, master/slave, manual, auto, built-in program, and stand alone. Custom programming allows you to create and save your own presets, eliminating the need for an external controller for small events. The included quick lock can be adjusted to multiple positions for flexible mounting. The base features an ergonomic handle, enhancing both functionality and the overall stylish design.

Specifications

Source
Light Source Type LED
Light Source Quantity 1
Light Source Power 150 W
Refresh Rate 1200 Hz
Refresh Rate (Max.) 15 kHz
Illuminance @ 2 m 686071 lx
Illuminance @ 3 m 304920 lx
Illuminance @ 5 m 109771 lx
Luminous Flux (Total) 2392 lm
CRI 70
Optical Beam Angle Minimum (Circular) 2 °
Frost Yes
Focus Motorised
Control and Programming
Control Mode Auto, Built-in Program, DMX, Manual, Master Slave, RDM, Stand Alone
DMX Channels 14, 18
Protocols DMX, RDM
Display LCD
Fan mode Yes
Dim Curve Linear, Square, I-Square, S-Curve
Dynamic Effects
Dimmer 0-100 %
Shutter Yes
Prism 1 8-facet Circular
Prism 2 48-facet Circular
Prism Overlay Yes
Prism Index & Rotate Yes
Animation Wheel No
Framing Shutters No
Colour System Colour Wheel
Colour Wheel Index & Rotate Yes
Dichroic Colour Wheel 1 14 + Open
Gobo System Metal
Gobo Wheel Index & Rotate No
Gobo Wheel 1 13 + Open
Movement
Pan 540 °
Tilt 360 °
Pan/Tilt Resolution 16-bit
Continuous Movement Yes
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 152 W
Fuse 5 A

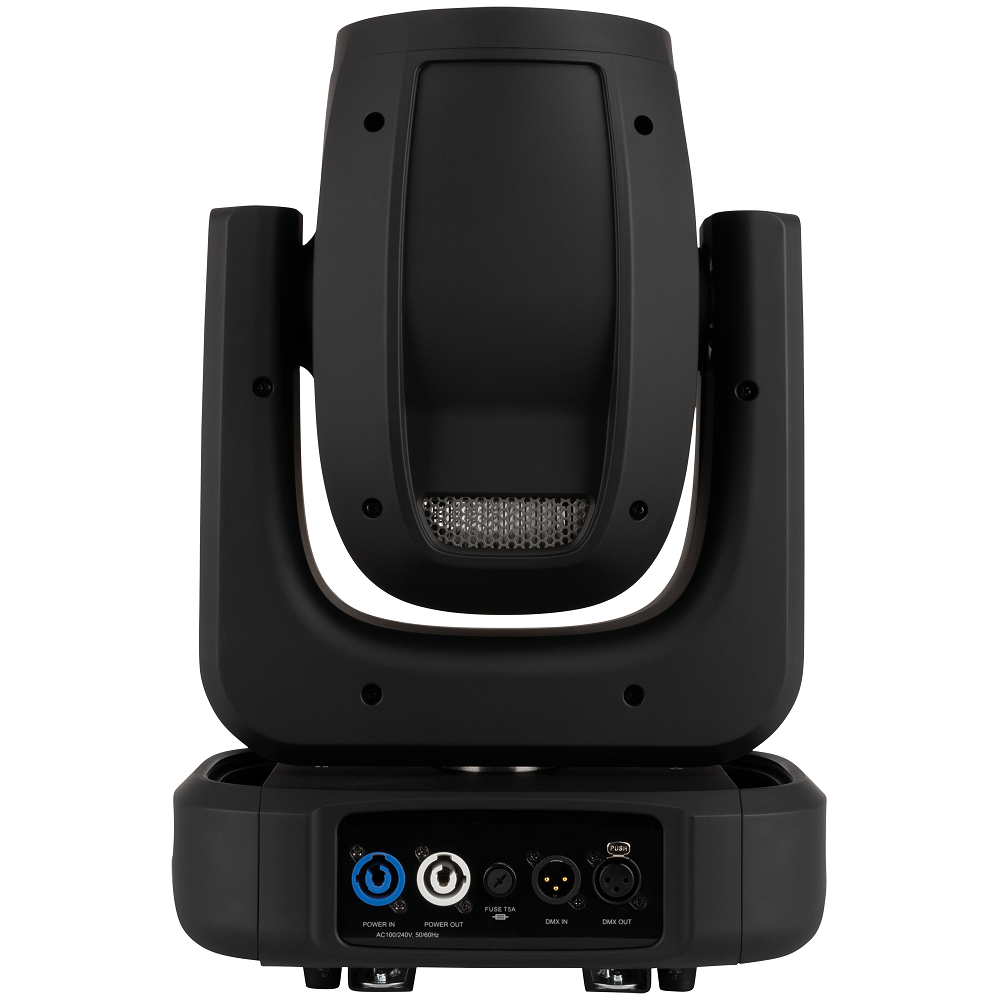

Power Connector In Power Pro Blue
Power Connector Out Power Pro Grey
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Length (mm) 198 mm (7.795″)
Width (mm) 310 mm (12.205″)
Height (mm) 446 mm (17.559″)
Weight 11.5 kg (25.353 lb)
IP Rating IP20 (indoor use only)
Housing Metal, Plastic
Colour Black
Product Properties
Cooling Convection/Axial fan
Rigging

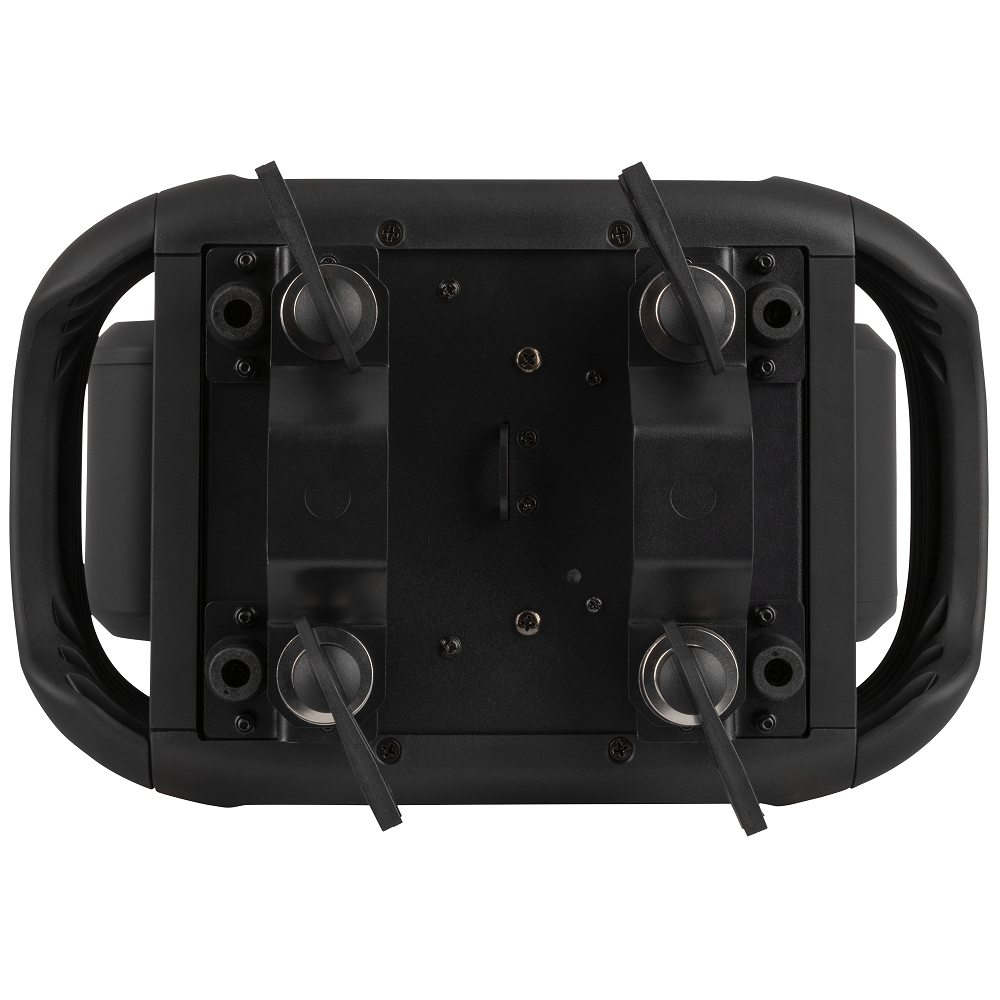

Mounting Options Quick-Lock
Safety Attachment Yes
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Maximum Surface Temperature 70 °C (158 °F)
Included Items
Included Cables
Power Pro Cable
Included Rigging
Quick-Lock Bracket
