Showtec Titan Vintage FX

80x 12 W RGBWW strobe LEDs + 84x 1W RGB LEDs

80x 12 W RGBWW strobe LEDs (10-section control)
84x 1 W RGB LEDs (28-section control)
Easy coupling system
IP65 rating

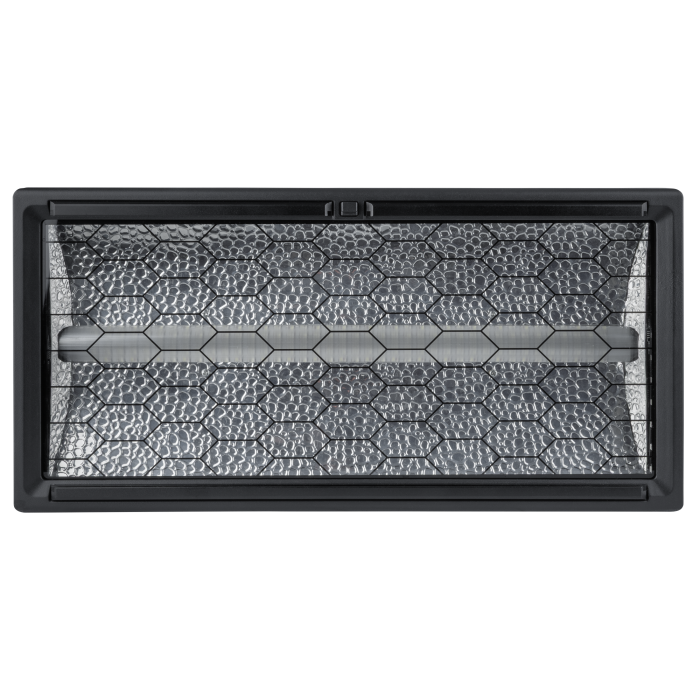

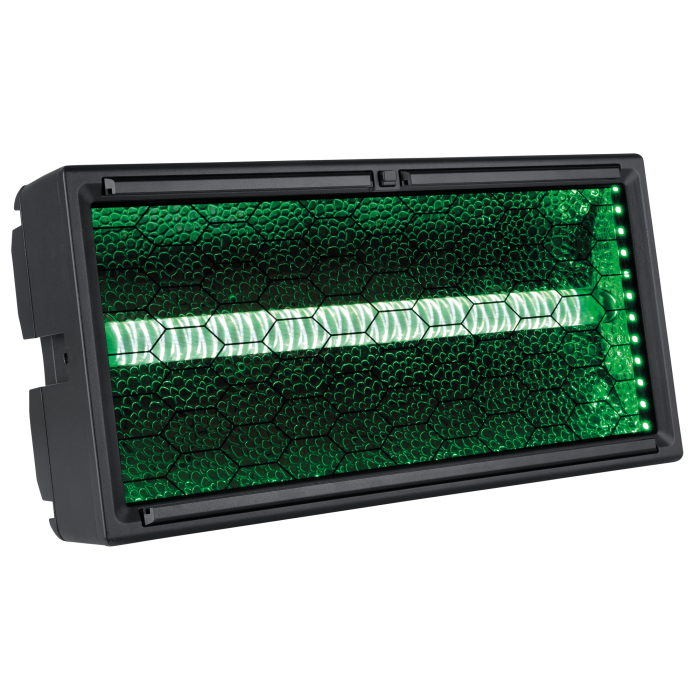

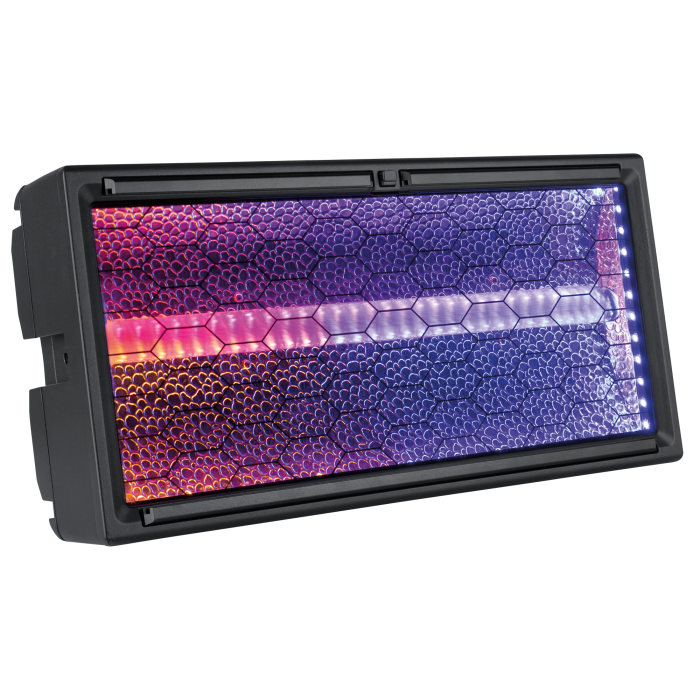

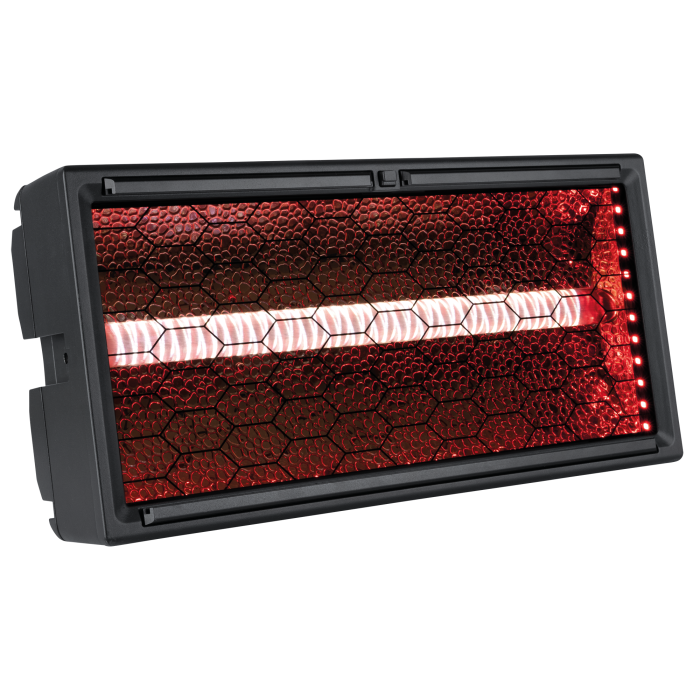

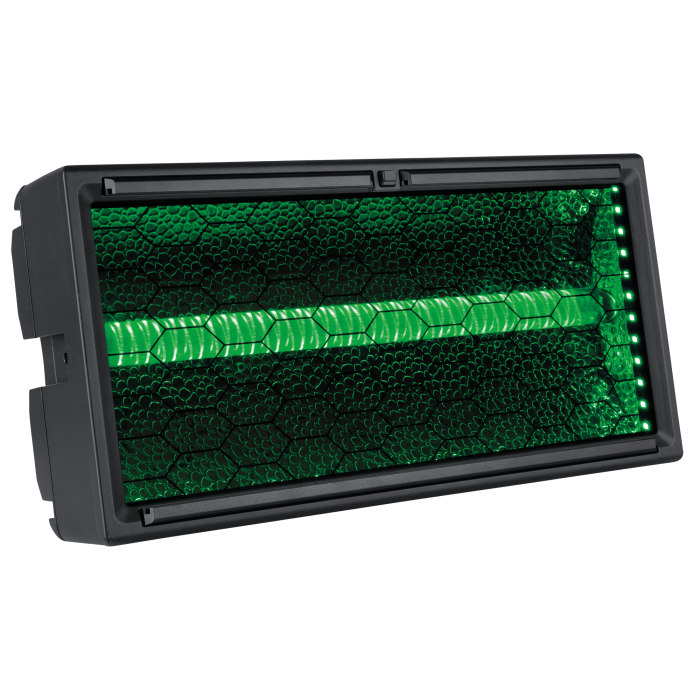

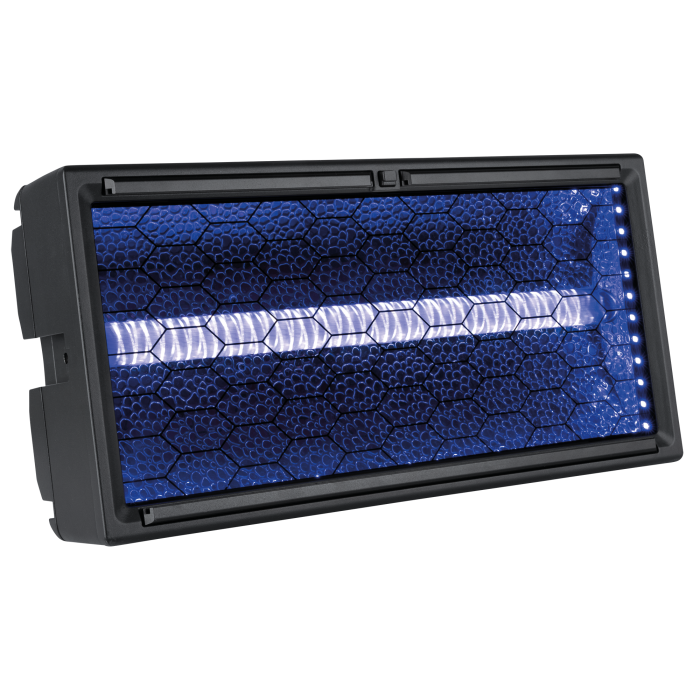

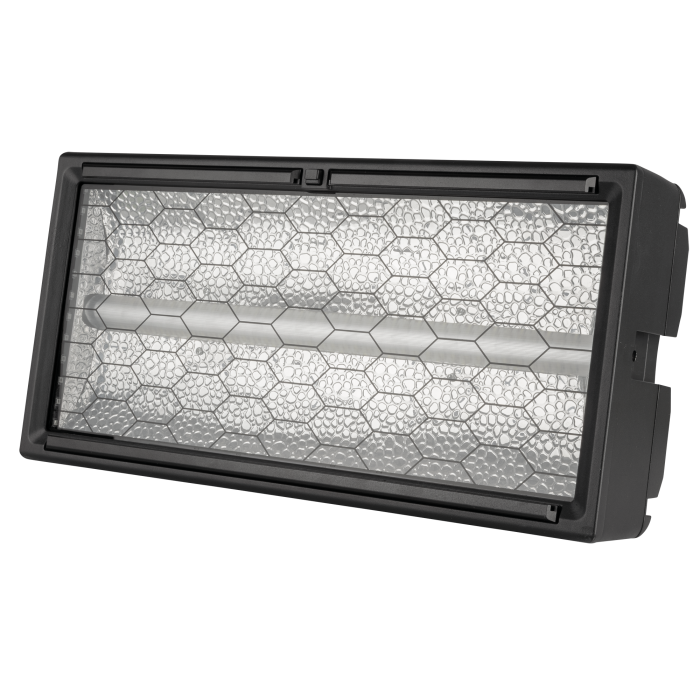

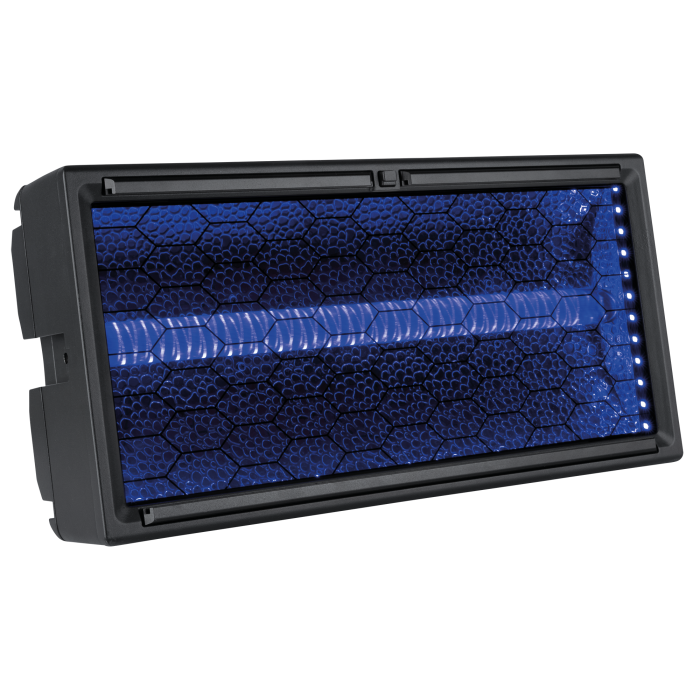

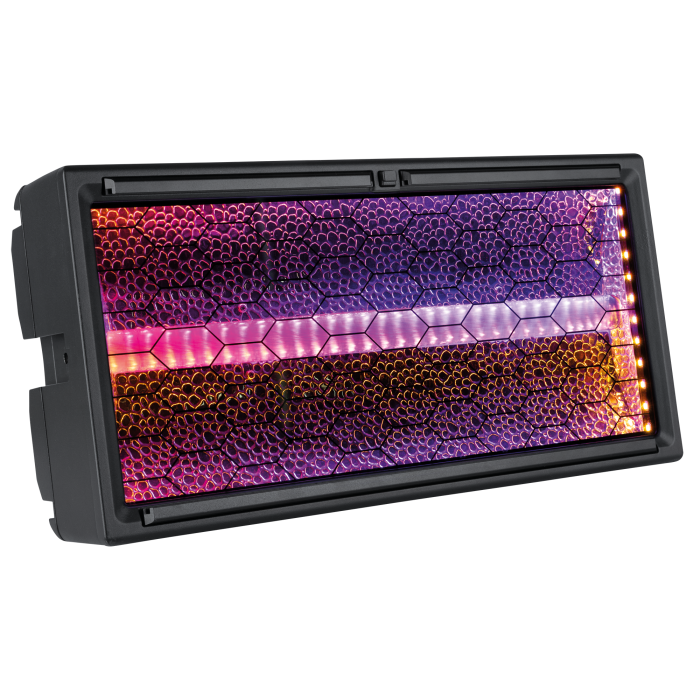

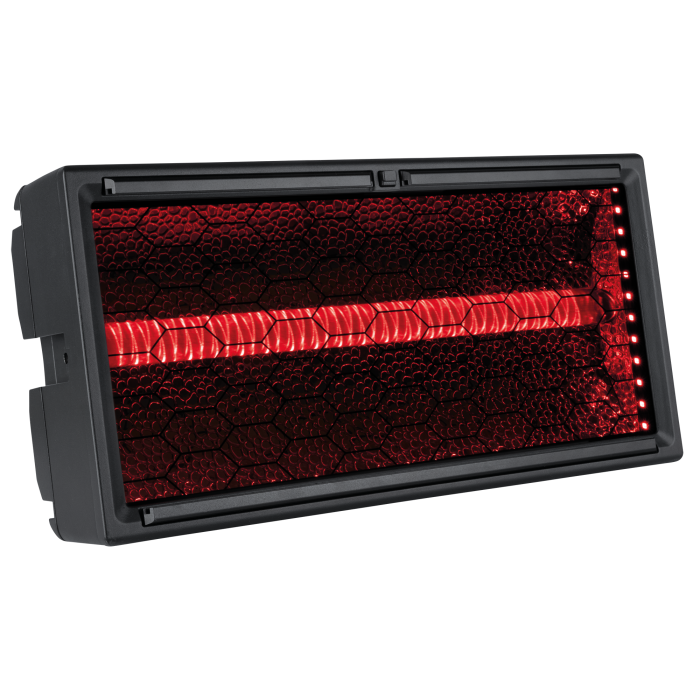

The Titan Vintage FX is an advanced strobe light fixture with a striking retro aesthetic, thanks to its chrome reflector that recalls the look of classic discharge strobes. Equipped with the latest technology, it boasts 80x 12-watt RGBWW strobe LEDs and 84x 1-watt RGB LEDs. The strobe LEDs can be controlled in 10 different sections, allowing the creation of colourful bursts and chases. The 84 RGB LEDs can be divided into 28 different sections, making them ideal for crafting colourful, dynamic backlight effects.

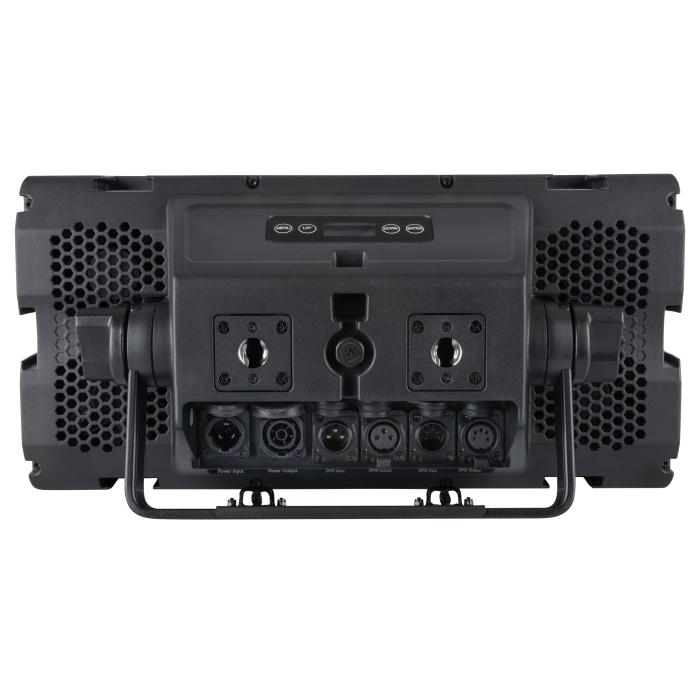

The IP65-rated housing makes the Titan Vintage FX suitable for all sorts of indoor and outdoor events. With DMX (+ RDM) and manual control options, 3-pin & 5-pin XLR and Power Pro True inputs and outputs, this strobe fixture can be easily integrated into any setup. Optional Titan Connection Blocks make it possible to quickly and easily combine multiple fixtures into unique horizontal and vertical setups.

Source
Light Source Type       LED
Light Source Quantity   2
Light Source Power      12 W
LED Colour Type         RGB, RGBW

Control and Programming
Control Mode            DMX, RDM

Dynamic Effects
Strobe                  0-25 Hz

Electrical Specifications and Connections
Power Supply            100-240 V AC 50/60 Hz
Power Consumption       1000 W
Power Connector In      Power Pro True
Power Connector Out     Power Pro True
DMX Connector           XLR 3P In/Out, XLR 5P In/Out
DMX Connector In        XLR 3P, XLR 5P
DMX Connector Out       XLR 3P, XLR 5P

Mechanical Specifications
Height (mm)             200 mm (7.874″)
Width (mm)              407 mm (16.024″)
Depth (mm)              169 mm (6.654″)
Weight                  8.2 kg (18.078 lb)
IP Rating               IP65
Housing                 Aluminium die-cast
Colour                  Black

Product Properties
Cooling                 Forced Convection

Rigging
Mounting Options        Clamp, Quick-Lock
Safety Attachment       Yes

Thermal Specifications
Maximum Ambient Temperature   40 °C (104 °F)
Minimum Ambient Temperature   -5 °C (23 °F)

Included Items
Included Cables           Power Pro True Cable
