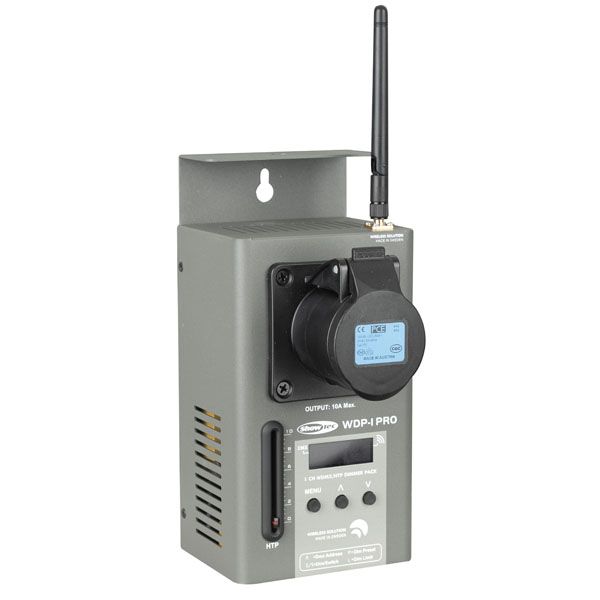

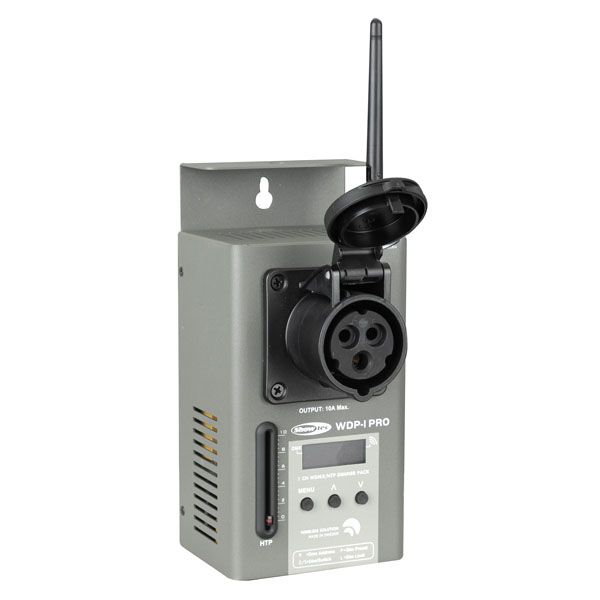

The Single WDP-1 is a one channel DMX dimmer/switch with built-in Wireless DMX receiver. The wireless signal can also be distributed on the XLR output in order to give signal by many other devices by cable.
- Wireless DMX receiver built-in
- Applicable as W-DMX receiver
- Powercon True Input
- 5 Pole DMX connectors
- CEE 16A 3 pole output (max 10A output)
Control and Programming
Control Mode DMX, Manual
DMX Channels 1
Wireless Wireless DMX
Electrical Specifications and Connections
Power Supply 240 VAC 50-60 Hz
Power Consumption 2300
Output Current Per Channel 10
Power Connector in powerCON TRUE1
Power Connector out CEE3P 16 A

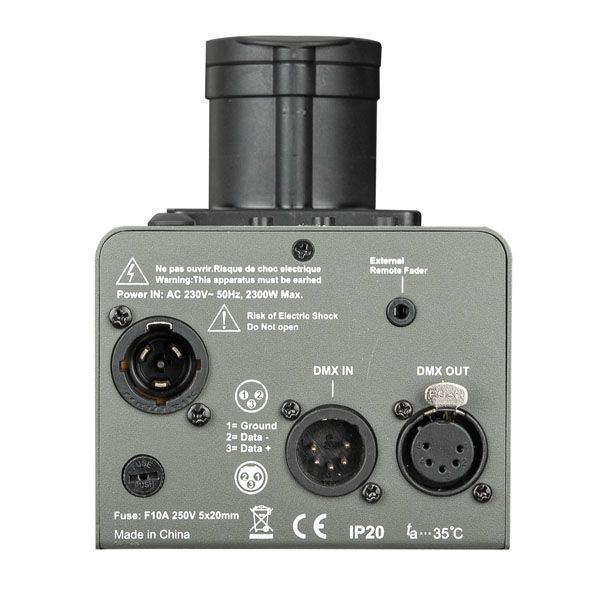

DMX Connector in XLR 5P
DMX Connector out XLR 5P
Mechanical Specifications
Length (mm) 134
Width (mm) 99
Height (mm) 293
Weight (kg) 1.4
IP Rating IP20 (indoor use only)
Housing Metal
Colour Black, Grey
Product Properties
LED Indicators Operation mode, Signal
Thermal Specifications
Maximum Ambient Temperature 40
Minimum Ambient Temperature -5
Certifications/Qualifications
Reference Standard CE
Included Items
Included Cables powerCON TRUE1 cable

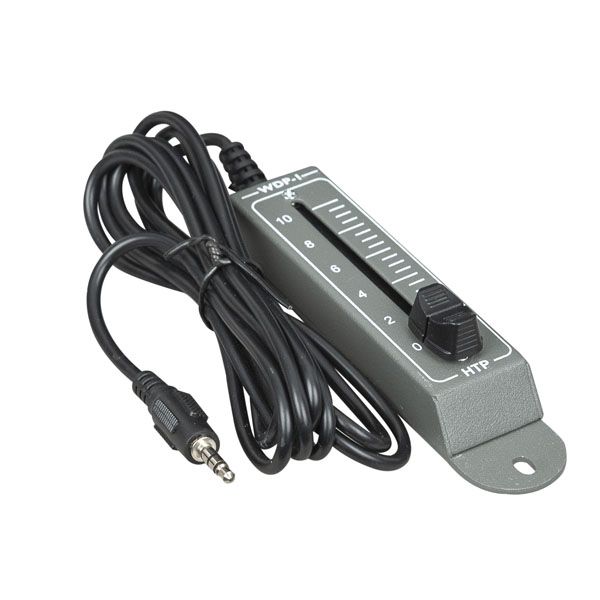

Included Remotes Wired
