7x 20 W RGBW Osram LED Spot
Wide motorised zoom range (pin spot to wash)
2 controllable sections (centre and surrounding spots)
IP65 (dust and water resistant, fit for outdoor use)
Dimmer and strobe function

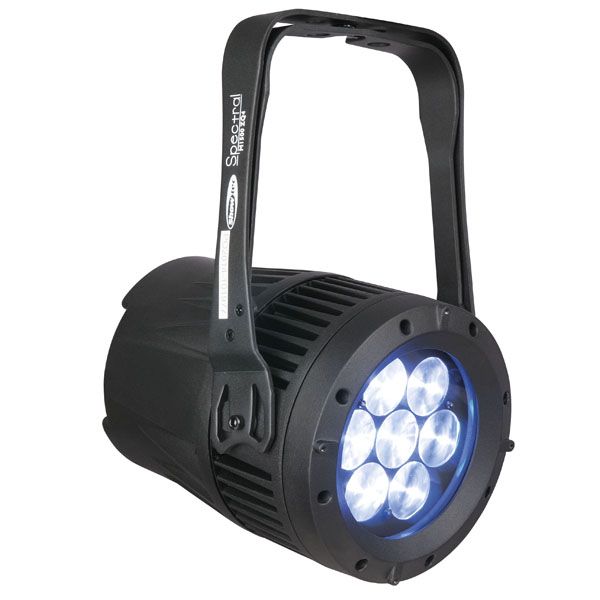

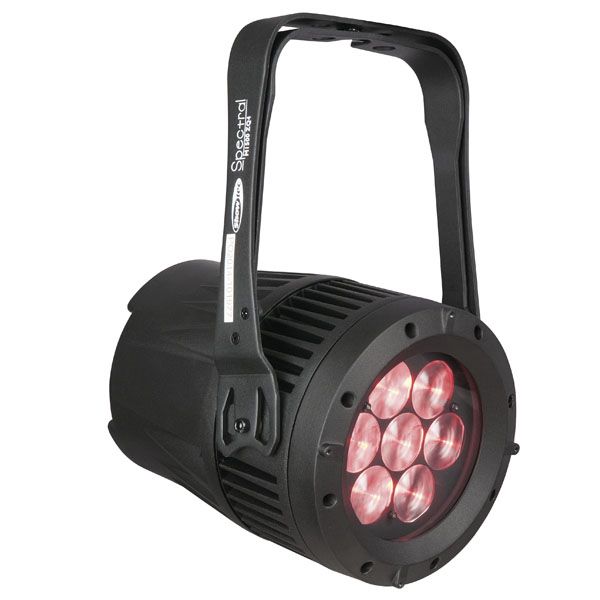

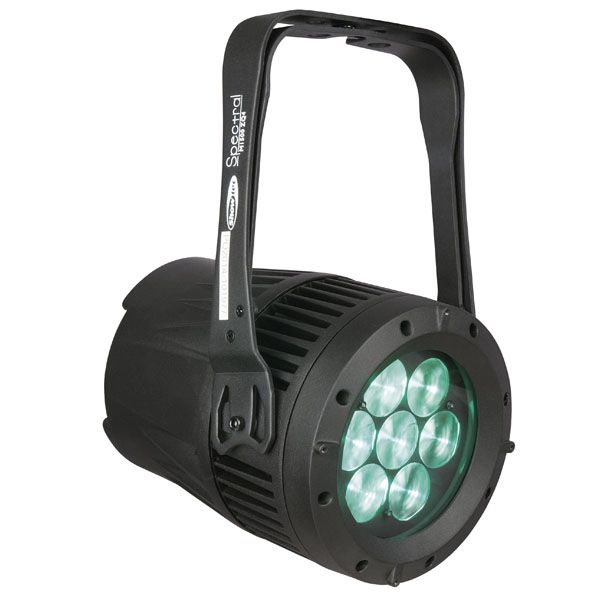

The Showtec Spectral M1500 Zoom Q4 MKIII is a 7x 20 watt RGBW LED spot to wash Parcan, with a wide 8°–40° motorised zoom range and high CRI, suitable for in- and outdoor applications. Each function, including its 2-section LED control, 0–100 % dimmer, 0–20 Hz strobe and colour mixing engine, is controllable via DMX and Master/Slave in either Manual and Auto run mode. The compact and lightweight 6.6 kg design, with IP66 rating and -10~40 °C operating temperature range, makes the Spectral M1500 Zoom MKIII fit for almost any environment.
Source
Light Source Type LED
Light Source Quantity 7
Light Source Power 20 W
LED Colour Type RGBW
Refresh Rate 1200 Hz
Lux @ 2m 17936 lx
Lumen Total 2350 lm
CRI 85
Optical
Beam Angle Circular (min) 8°
Beam Angle Circular (max) 40°
Zoom Type Motorised
Zoom Minimum 8°
Zoom Maximum 40°
Control and Programming
Control Mode Auto, DMX, Manual, Master Slave
DMX Channels 3, 4, 5, 6, 7, 12, 17, 25
Protocols DMX, RDM
Display 4-segment, LED
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Electrical Specifications and Connections
Power Supply 100-240 VAC 50-60 Hz
Power Consumption 128 W
Power Connector in powerCON TRUE1
Power Connector out powerCON TRUE1
DMX Connector Dedicated 3P IP65 In/Out
DMX Connector in Dedicated 3P IP65
DMX Connector out Dedicated 3P IP65
Cable Length 1.5 m
Mechanical Specifications
Length (mm) 255 mm
Width (mm) 225 mm
Height (mm) 360 mm
Weight 7.08 kg
IP Rating IP65
Housing Aluminum die-cast
Colour Black
Product Properties
Cooling Convection
Rigging
Mounting Options Clamp, Surface
Safety Attachment Yes
Thermal Specifications
Maximum Ambient Temperature 40 °C
Minimum Operating Temperature -10 °C
Included Items
Included Cables powerCON TRUE1 cable
Included Accessories User Manual
Included Rigging Bracket
