7 x 15 W RGBW LED Wash Moving Head
Wide motorised zoom
Compact, one-clamp-mount design
Dimmer and strobe function
DMX, IR and Master/Slave control

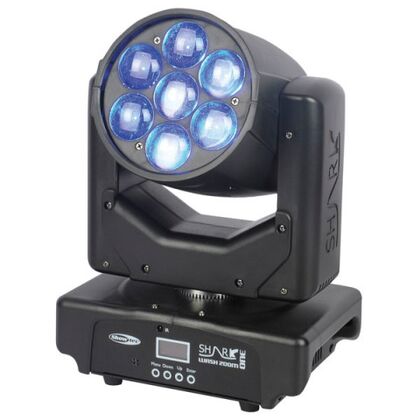

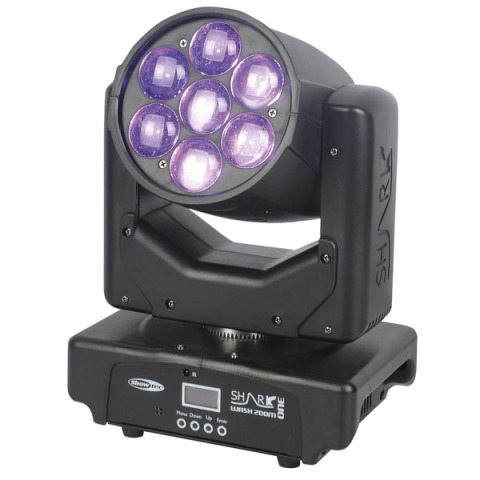

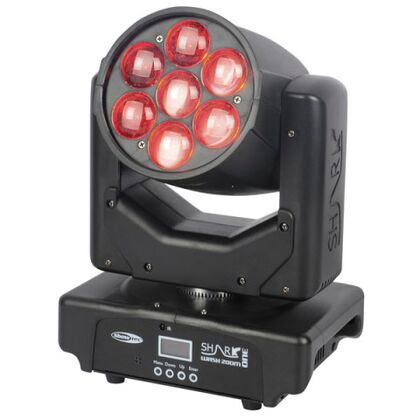

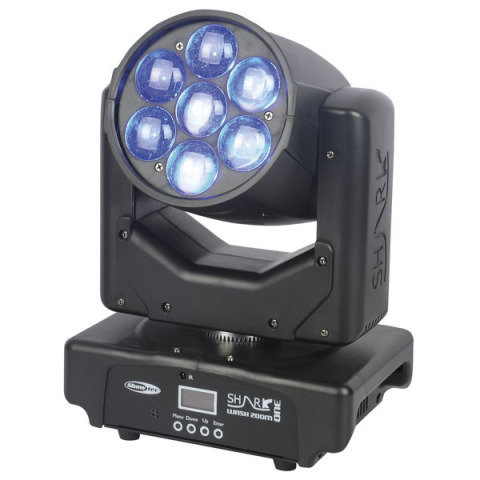

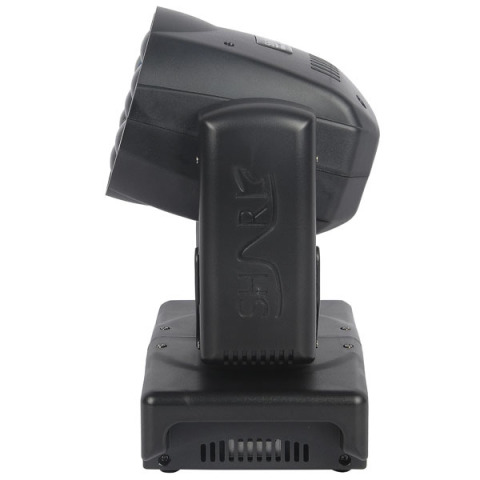

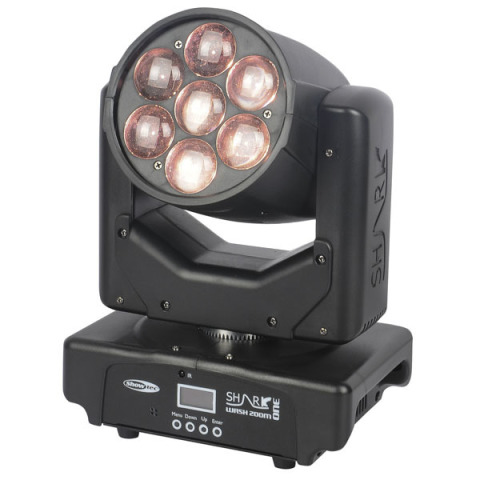

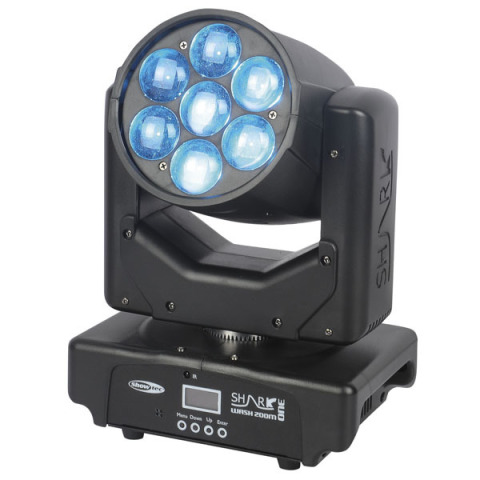

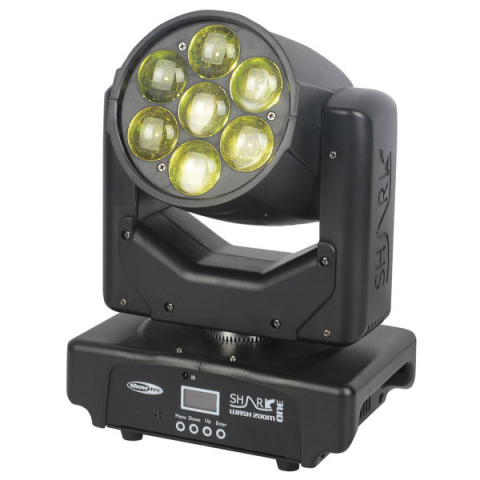

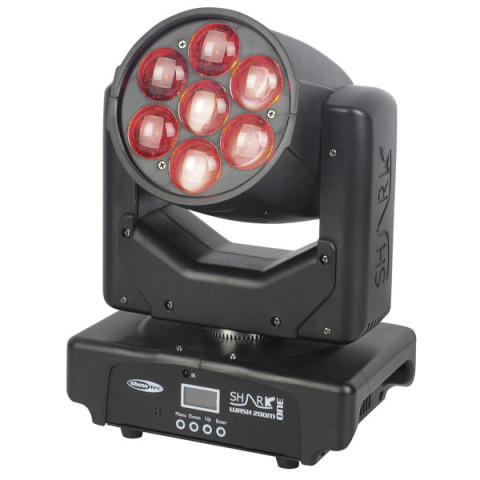

The Showtec Shark Zoom Wash One is a compact and reliable 7 x 15 watt RGBW LED Wash Moving Head with a wide 6°–36° motorised zoom range, suitable for indoor venues. Its colour engine, 0–100 % dimmer and 0–20 Hz strobe effects are controllable via DMX and Master/Slave in either Manual, Auto run and Sound-controlled mode. Additionally, the Shark Zoom Wash One includes an infrared remote for wireless point-and-shoot control. With a single press on the button, you can activate Auto run and Sound-controlled programs, as well as other available features and effects.
Source
Light Source Type LED
Light Source Quantity 7
Light Source Power 15
LED Colour Type R, G, B, W
Lux @ 2m 12569
Lux @ 3m 5586
Lux @ 5m 2011
Lumen Total 1081
Lumen Red 214
Lumen Green 489
Lumen Blue 128
Lumen White 569
CRI 70
CCT 7200
Optical
Beam Angle Circular (min) 6
Beam Angle Circular (max) 36
Zoom Type Motorised
Zoom Minimum 6
Zoom Maximum 36
Control and Programming
Control Mode Auto, DMX, Master Slave, Remote, Sound
DMX Channels 8, 15
Protocols DMX
Display OLED
Dimmer Resolution 8 bit
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Movement
Pan 540
Tilt 230
Pan/Tilt Resolution 16-bit
Electrical Specifications and Connections
Power Supply 100-240 VAC 50-60 Hz
Power Consumption 80
Fuse 2

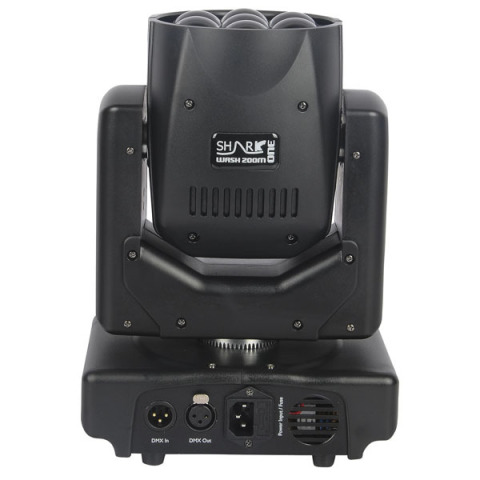

Power Connector in IEC
DMX Connector XLR 3P In/Out
DMX Connector in XLR 3P
DMX Connector out XLR 3P
Mechanical Specifications
Length (mm) 215
Width (mm) 145
Height (mm) 300
Weight (kg) 4.3
IP Rating IP20 (indoor use only)
Housing Metal, Plastic
Colour Black
Product Properties
Cooling Axial fan
Rigging
Mounting Options Bracket
Safety Attachment Yes
Safety Eyes 1
Thermal Specifications
Maximum Ambient Temperature 40
Maximum Surface Temperature 80
Certifications/Qualifications
Reference Standard CE
Included Items
Included Cables IEC cable
Included Rigging Bracket
