Pixelbar 16 Q6 RGBAWUV

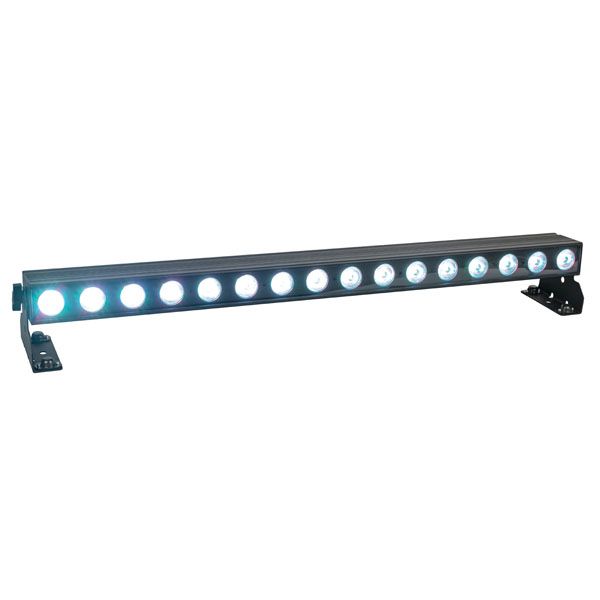

The Showtec Pixelbar 16Q6 is an cost effective LED bar with 16x 6-in-1 RGBWA-UV LEDs. In order to ensure full control It offers full pixel control in 101 channel mode to create beautiful colour flows but can also be controlled in 6, 8,12 96, HSV & HSI mode for more basic use. With the RGBWA-UV LEDs it is possible to create both saturated and pastel colours. The UV colour makes the Pixelbar suitable for special FX in combination with e.g. UV colors A clear LCD display with an intuitive menu structure makes setting up as easy as ABC. Multiple mounting positions make rigging easy allowing creative setups.

• RGBWA-UV LED
• Pixelcontrol
• DMX, Artnet Control
• Brackets included.

Source

Light Source Type LED

Light Source Quantity 16

Light Source Powe 10 W

LED Colour Type RGBWAUV

Refresh Rate 12000 Hz

Lumen Total 4020 lm

Optical

Beam Angle Horizontal 25 °

Beam Angle Vertical 25 °

Control and Programming

Control Mode Art-Net, Auto, DMX, Manual, Master Slave, Stand Alone

DMX Channels 6, 8, 12, 96, 101

Protocols Art-Net, DMX

Display LCD

Dynamic Effects

Dimmer 0-100 %

Strobe 0-25 Hz

Electrical Specifications and Connections

Power Supply 100-240 VAC 50-60 Hz

Power Consumption 170 W

Power Connector in Pro Power Blue

Power Connector out Pro Power Grey

DMX Connector XLR 3P In/Out, XLR 5P In/Out

DMX Connector in XLR 3P, XLR 5P

DMX Connector out XLR 3P, XLR 5P

Data Connector in RJ45

Data Connector out RJ45

Mechanical Specifications

Length (mm) 1047 mm

Width (mm) 136 mm

Height (mm) 146,5 mm

Weight 6,5 kg

IP Rating IP20 (indoor use only)

Housing Aluminium

Colour Black

Product Properties

Cooling Convection

Rigging

Mounting Options Bracket, Floor, Quick-Lock, Wall

Safety Attachment Yes

Thermal Specifications

Maximum Ambient Temperature 40 °C

Minimum Operating Temperature 0 °C

Certifications/Qualifications

Reference Standard CE

Included Items

Included Cables powerCON cable

Included Accessories User Manual

Included Rigging Bracket
