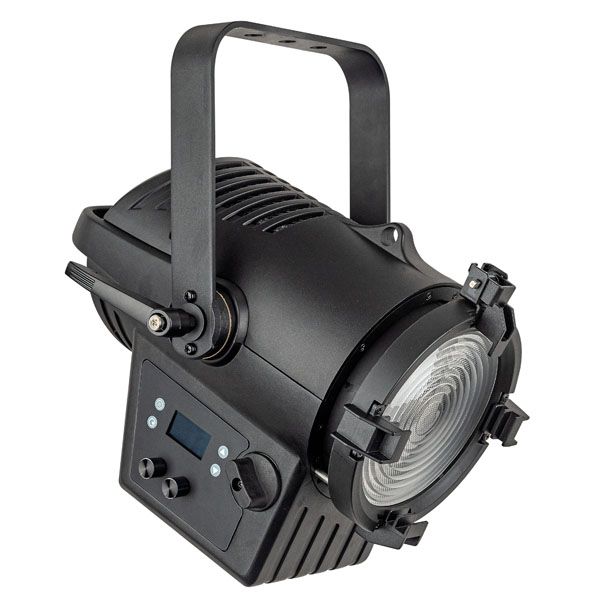

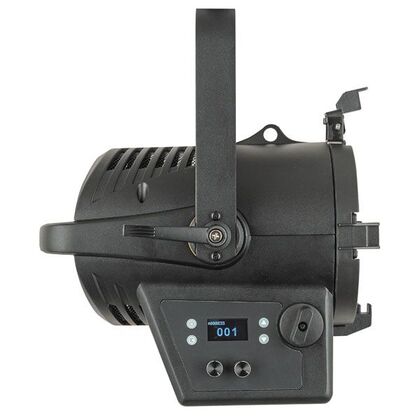

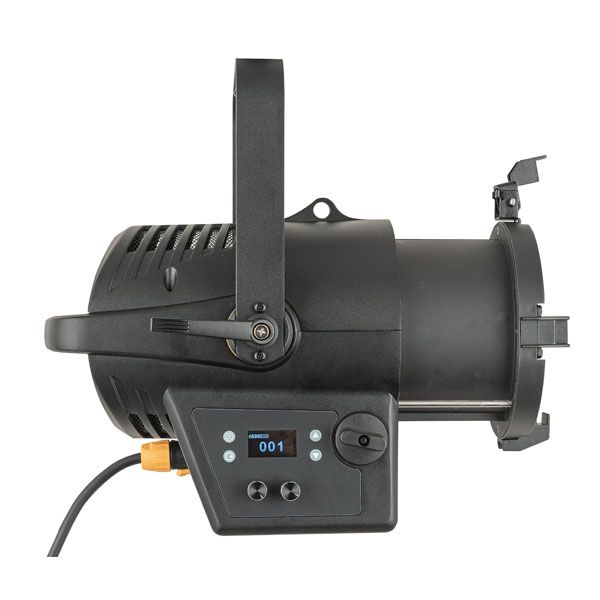

Performer 2500 Fresnel Daylight

The Showtec Performer 2500 Fresnel Daylight is a 250 watt Daylight White LED Spot with high CRI and silent operations, suitable for theatre and studio applications. It projects a bright, soft field of light within a wide 10°-60° manually adjustable zoom range. The 0-100 % dimmer function and 14 step CCT 4000 K-6500 K colour temperature of the Performer 2500 Fresnel Daylight are DMX controllable. A four leaves barndoor is optional for manually shaping the output of your Performer 2500 Fresnel Daylight.

Source

Light Source Type LED

Light Source Quantity 1

Refresh Rate (min) 600 Hz

Refresh Rate (max) 25 kHz

Lux @ 2m 42563 lx

Lumen Total 8410 lm

CRI 95

CCT Minimum 4000 K

CCT Maximum 6500 K

Optical

Beam Angle Circular (min) 10 °

Beam Angle Circular (max) 60 °

Field Angle Circular (min) 18 °

Field Angle Circular (max) 88 °

Zoom Type Manual

Control and Programming

Control Mode DMX

DMX Channels 1, 2, 3, 6, 8

Protocols DMX, RDM

Dynamic Effects

Dimmer 0-100%

Strobe 0-25Hz

Electrical Specifications and Connections

Power Supply 100-240 VAC 50-60Hz

Power Consumption 250 W

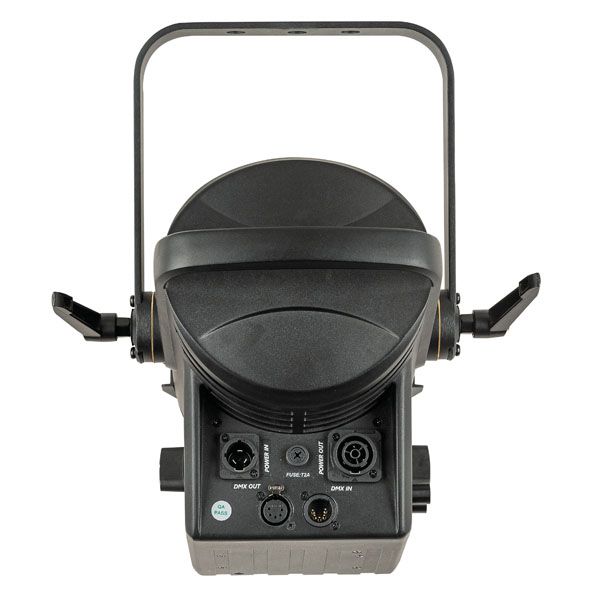

Power Connector in PowerCON True 1 In (Male)

Power Connector out PowerCON True 1 Out (Female)

DMX Connector XLR 5P In/Out

DMX Connector in XLR 5P

DMX Connector out XLR 5P

Mechanical Specifications

Length (mm) 470 mm

Width (mm) 380 mm

Height (mm) 450 mm

Weight 8,8 kg

IP Rating IP20(indoor use only)

Housing Aluminum Die-cast

Colour Black

Product Properties

Cooling Axial fan

Thermal Specifications

Maximum Ambient Temperature 40 °C

Maximum Surface Temperature 45 °C

Minimum Operating Temperature 0 °C

Certifications/Qualifications

Reference Standard CE

Included Items

Included Cables PowerCon True1 cable
