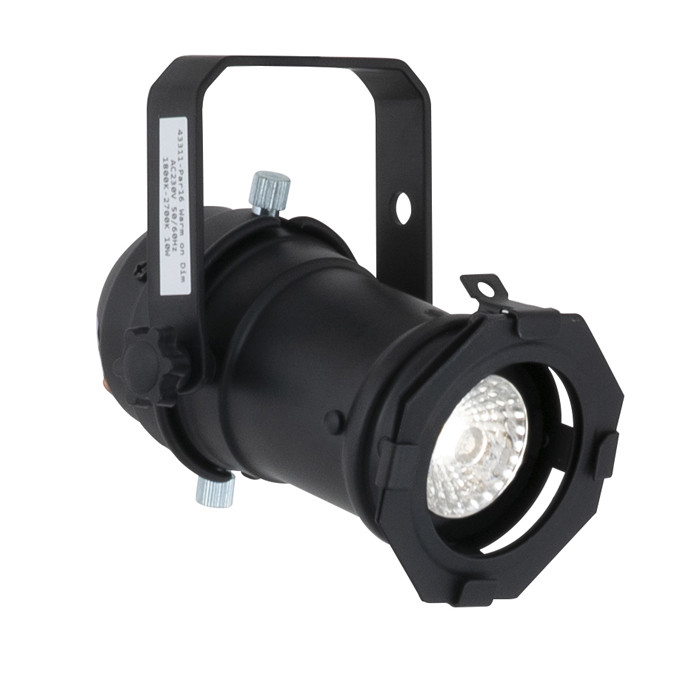

Par 16 Warm On Dim

Warm on Dim technology

Triac Dimming

High CRI

No UV radiation

The Par series with Warm-On-Dim technology offer a wide range of classic parcans equipped with the latest LED Technology. The Warm-on-Dim technology mimics the dimming curves of traditional tungsten fixture by having a 3000 K colour temperature at 100 % output and a 1800 K colour temperature once dimmed down to 5 %. Furthermore the advanced LED technology offers a high CRI which is over 95. Also due to the use of LED there is no radiation of UV which makes this series safe to use in e.g. clothing shops and galleries.

Source

Light Source Type LED

Light Source Power 10 W

Refresh Rate 400 Hz

Par Model 16

Lumen Total 500 lm

CRI 95

Optical

Beam Angle Circular (max) 36°

Electrical Specifications and Connections

Power Supply 240 VAC 50-60 Hz

Power Consumption 12 W

Power Connector in Schuko Plug

Cable Length 0.50 m

Mechanical Specifications

Length (mm) 145 mm

Width (mm) 104 mm

Height (mm) 125 mm

Weight 0.45 kg

IP Rating IP20 (indoor use only)

Housing Aluminum

Colour Black

Product Properties

Cooling Convection

Rigging

Mounting Options Clamp

Thermal Specifications

Maximum Ambient Temperature 40 °C

Maximum Surface Temperature 80 °C

Minimum Operating Temperature -5 °C

Included Items

Included Cables Fixed Cable

Included Accessories Filterframe, User Manual

Included Rigging Bracket
