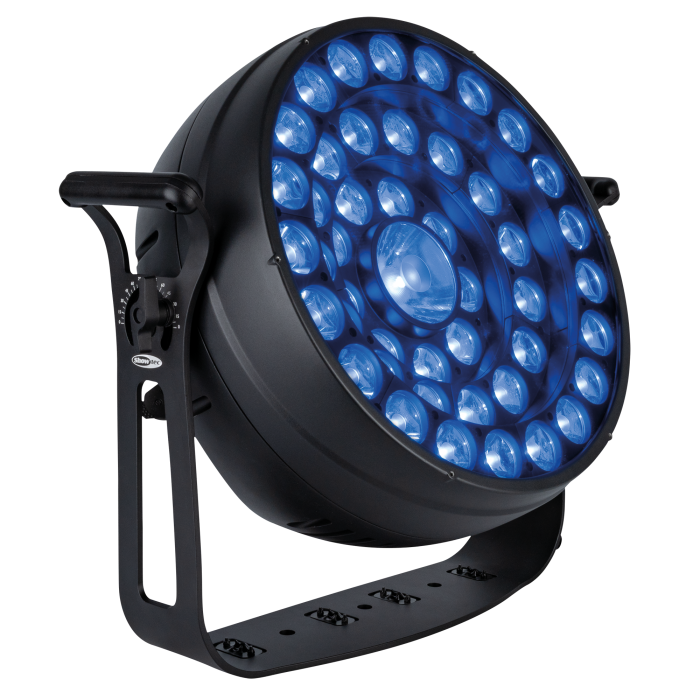

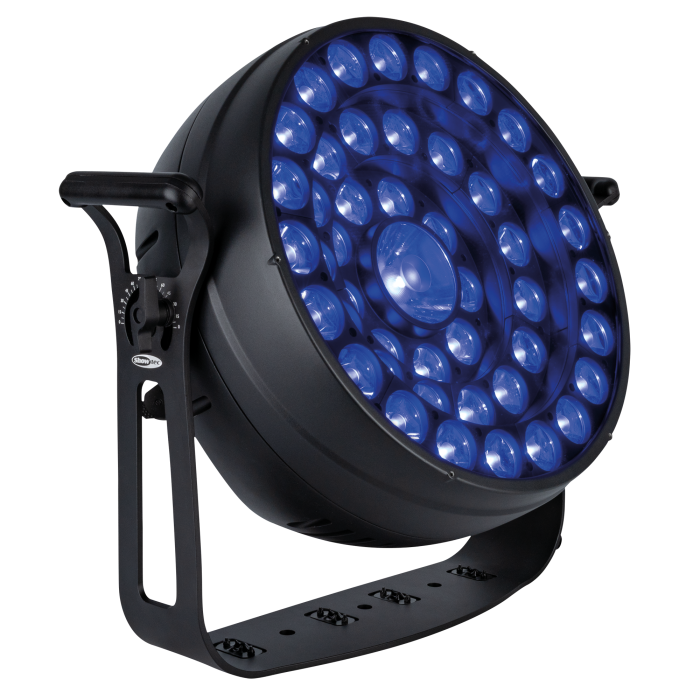

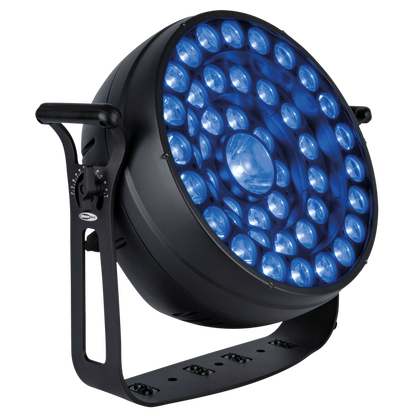

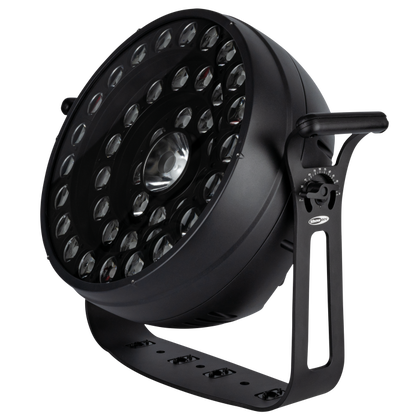

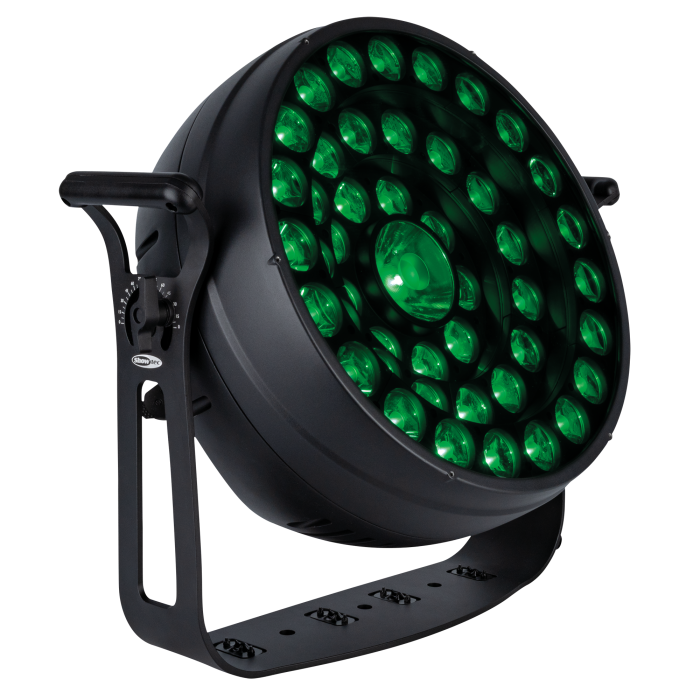

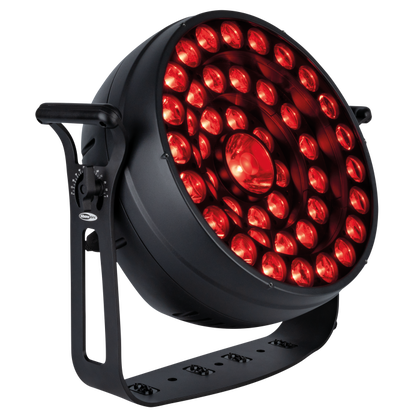

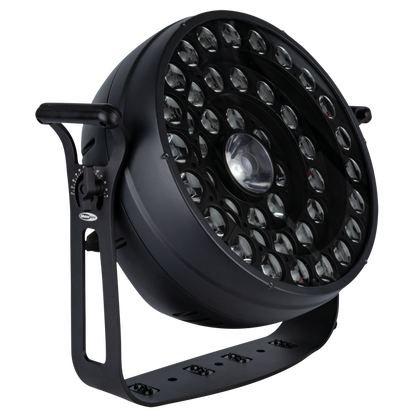

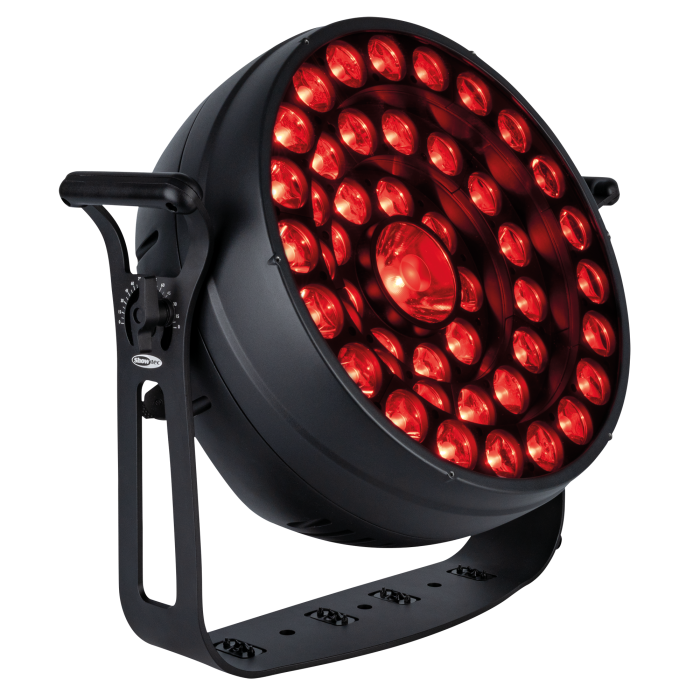

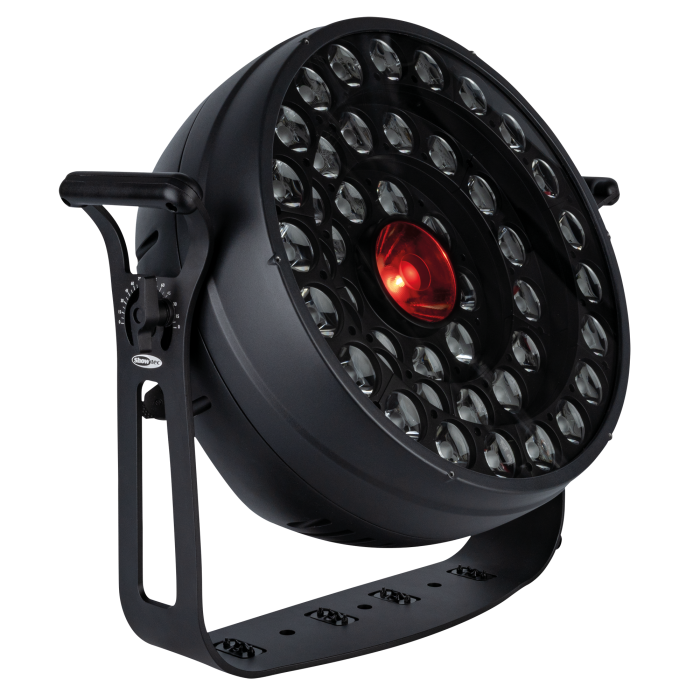

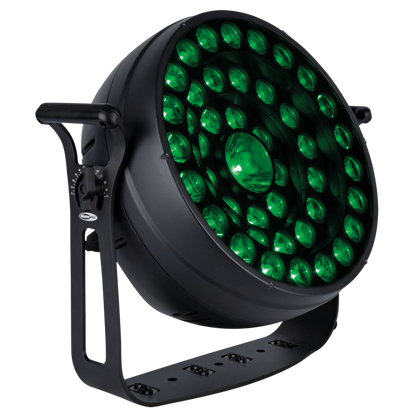

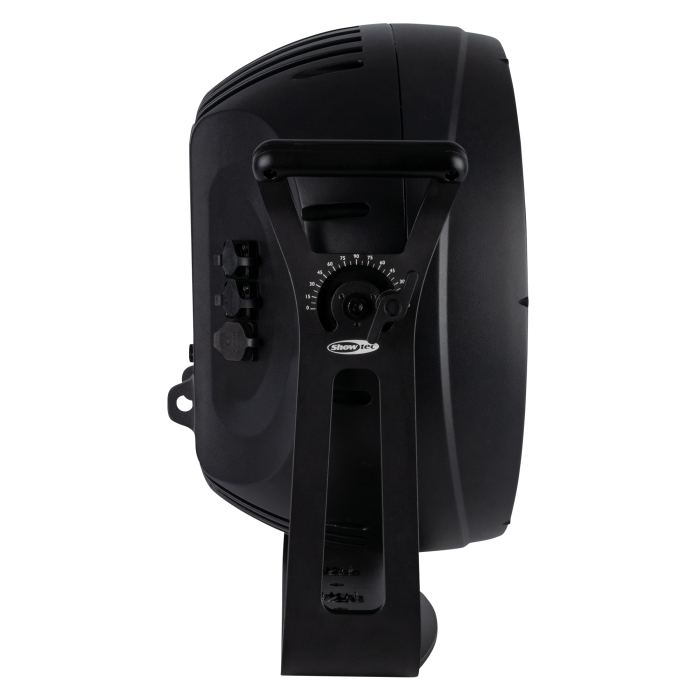

Showtec Lumina Beam

60 W RGBW LED Beam with RGBW LED wash

1x 60 W + 45x 15 W RGBW LEDs
Pixel-controlled for dynamic effects
Sharp 8° beam angle
IP65-rated for outdoor use
Art-Net & DMX/RDM control with remote addressing

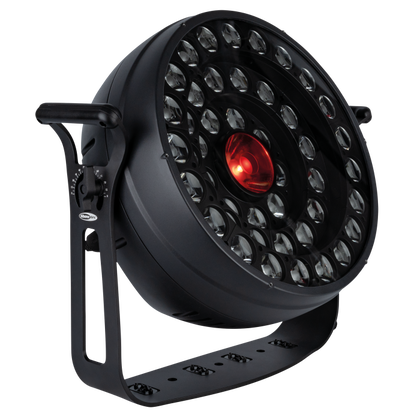

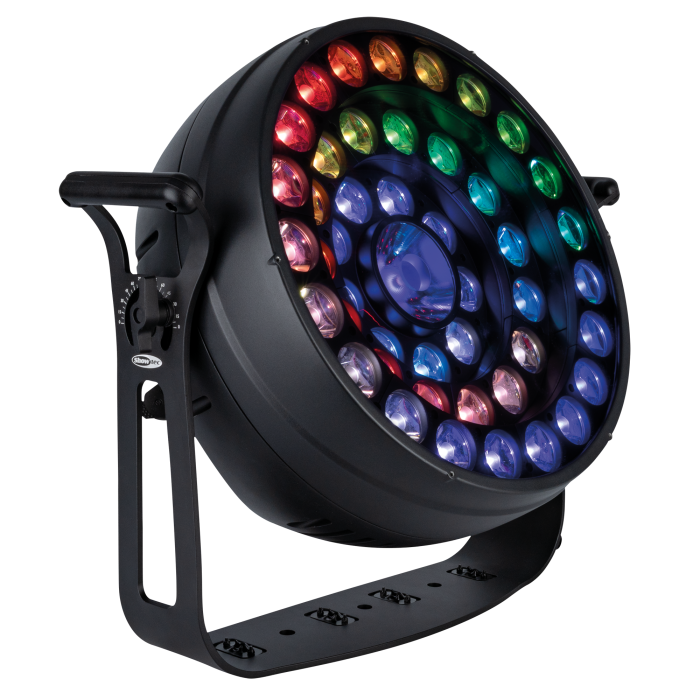

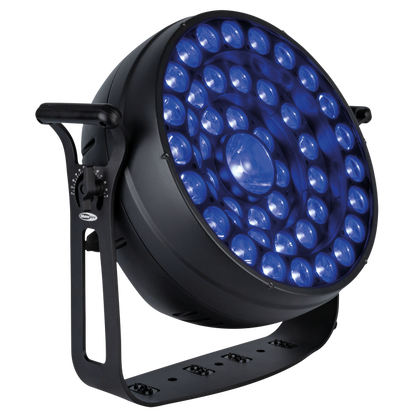

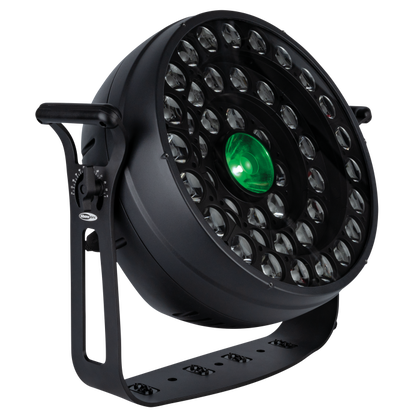

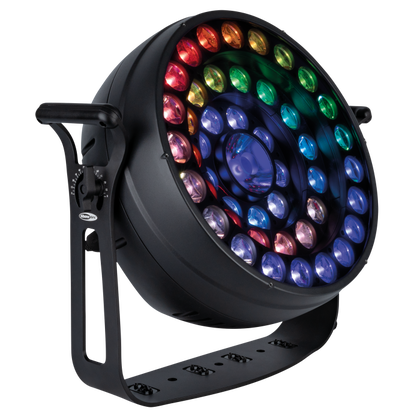

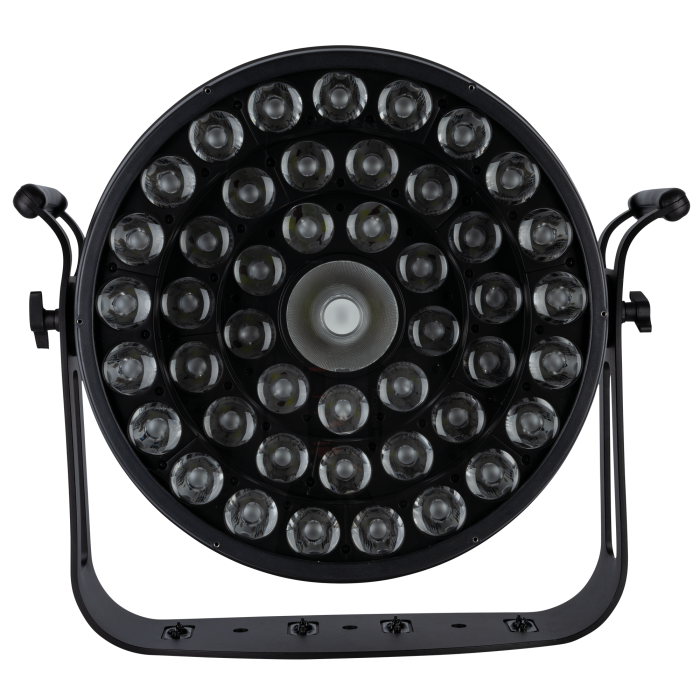

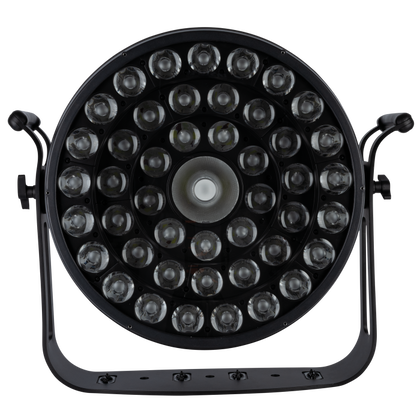

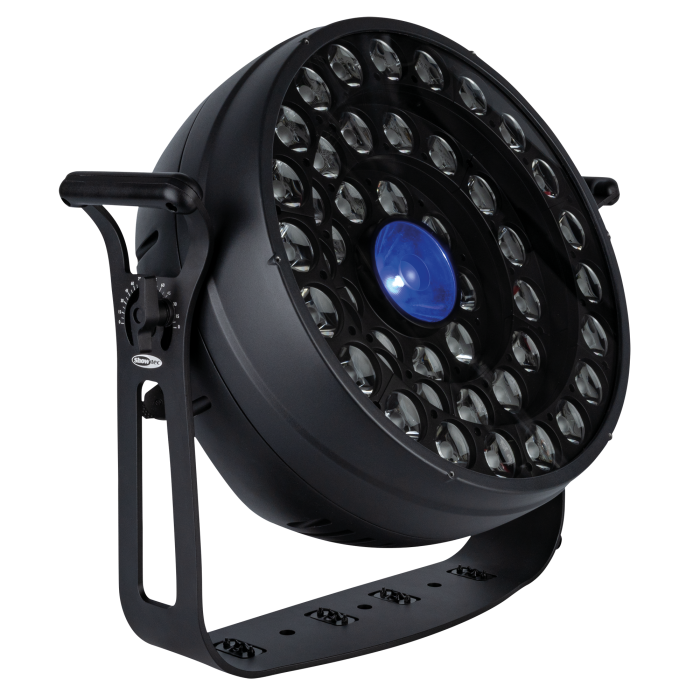

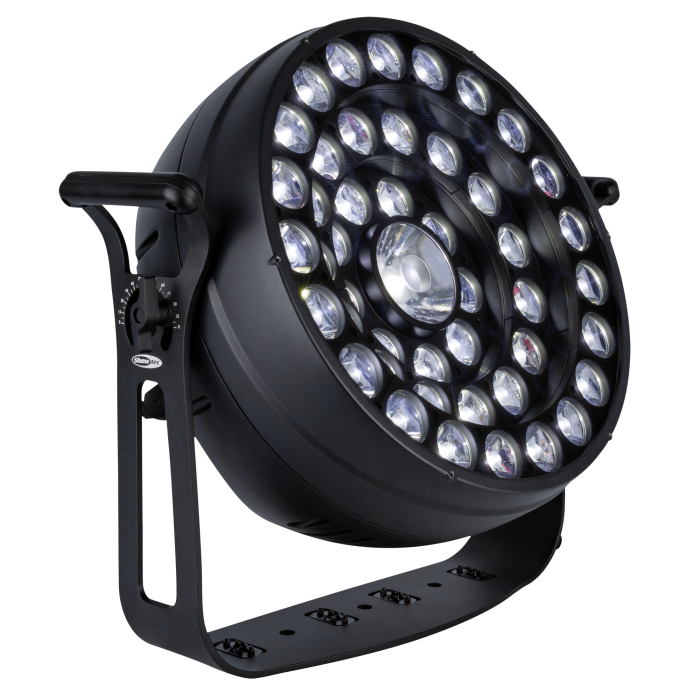

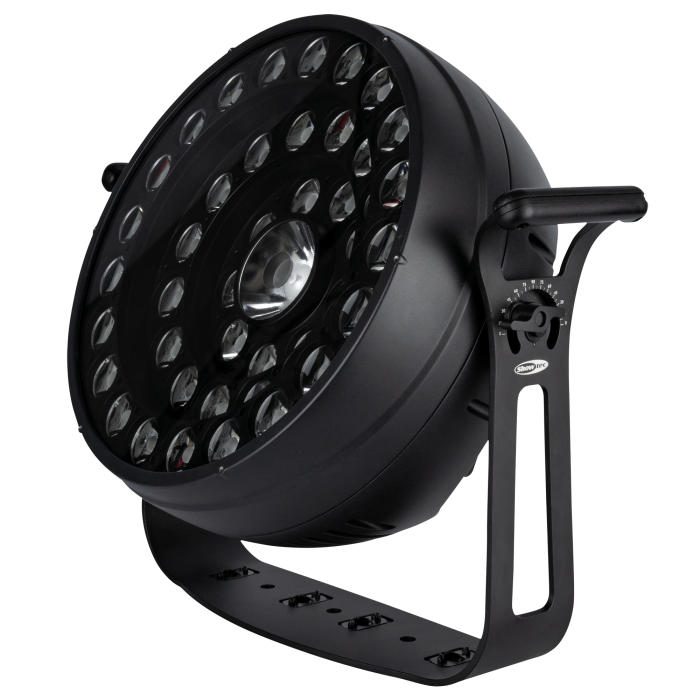

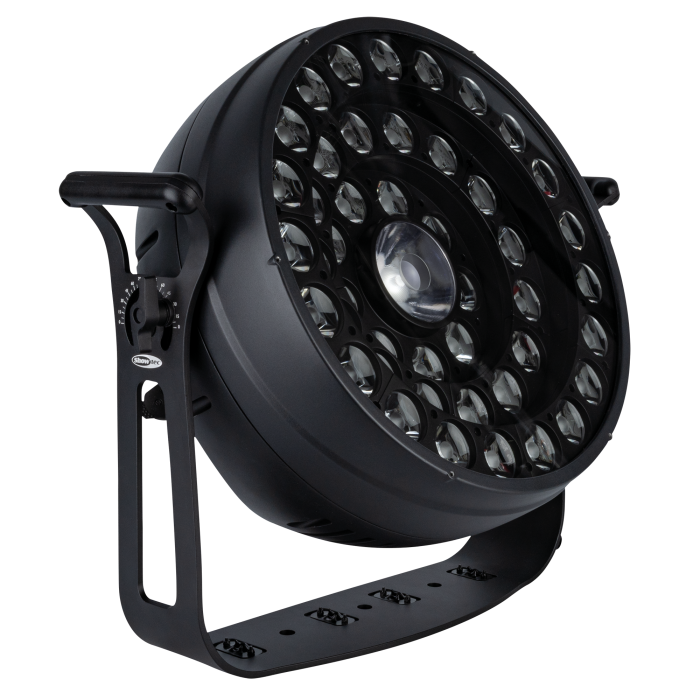

The Showtec Lumina Beam is a powerful outdoor beam blinder designed for dynamic effects and creative lighting. At its core, a 60 W RGBW LED delivers a sharp 8° beam angle for intense, focused output. Surrounding the centre LED are 45 RGBW LEDs (15 W each), all pixel-controlled for stunning multi-layered effects and endless design possibilities.
With an IP65-rated housing, the Lumina Beam is built for all-weather reliability. Control options include Art-Net, DMX/RDM, Auto, and Manual modes, with up to 150 DMX channels for advanced programming. Thanks to RDM, you can remotely change the DMX address and switch DMX modes without physical access. The fixture also features 4 selectable dimming curves, Power Pro True connectors, and 5-pin DMX connections for secure and professional setups. High-frequency PWM (1–15 kHz) ensures flicker-free performance for broadcast and camera applications.
A range of optional accessories is available to soften the LED appearance, modify the beam look, or create distinctive patterns for a vintage or Goliath-style appearance.

Source
Light Source Type       LED
Light Source Quantity   46
Light Source Power      15 W
LED Colour Type         RGBW
Life Expectancy         20000 h
Refresh Rate            1000 Hz
Refresh Rate (Max.)     12 kHz
Luminous Flux (Total)   14240 lm
Luminous Flux (Red)     4645 lm
Luminous Flux (Green)   10898 lm
Luminous Flux (Blue)    2420 lm
Luminous Flux (White)   13271 lm

Optical
Beam Angle (Horizontal) 4.5 °
Beam Angle (Vertical)   4.5 °

Control and Programming
Control Mode            Art-Net, Auto, DMX, Manual, RDM
DMX Channels            8, 12, 27, 184, 199
Protocols               DMX, RDM
Display                 OLED
Fan mode                Yes
Dim Curve               Linear, Square, I-Square, S-Curve

Dynamic Effects
Dimmer                  0-100 %
Strobe                  0-20 Hz

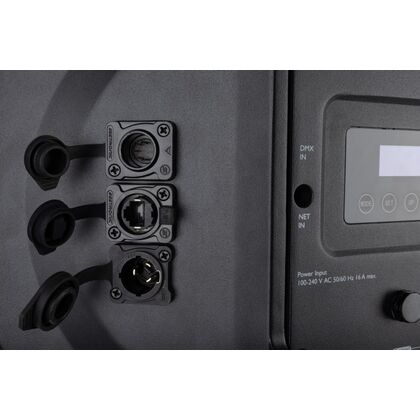

Electrical Specifications and Connections
Power Supply            100-240 V AC 50/60 Hz
Power Consumption       450 W

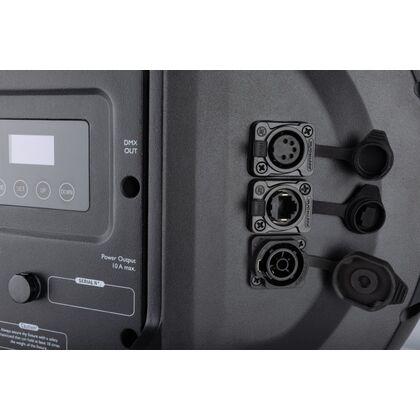

Power Connector In      Power Pro True
DMX Connector           XLR 5P In/Out
DMX Connector In        XLR 5P
DMX Connector Out       XLR 5P
Data Connector          RJ45 In/Out
Data Connector In       RJ45
Data Connector Out      RJ45

Mechanical Specifications
Length (mm)             265 mm (10.433″)
Width (mm)              555 mm (21.85″)
Height (mm)             481 mm (18.937″)
Weight                  24 kg (52.911 lb)
IP Rating               IP65
Material                Aluminium
Housing                 Aluminium
Colour                  Black

Product Properties
Cooling                 Convection/Axial fan

Thermal Specifications
Maximum Ambient Temperature  40 °C (104 °F)
Maximum Surface Temperature  70 °C (158 °F)

Product Compliance
Energy efficiency class   T/B/D

Included Items
Included Cables           Power Pro True Cable
