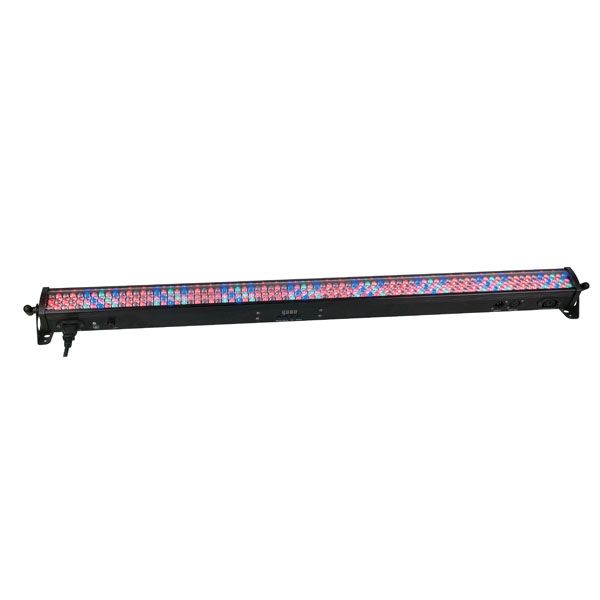

LED Light Bar 8 8 sections

• Inexpensive batten effect
• 8 sections
• Power and data in- and output
• Compact size

Source

Light Source Type LED

Light Source Quantity 240

Light Source Power 5

LED Colour Type R, G, B

Refresh Rate 11600

Lux @ 2m 613.3

Lumen Total 800

Optical

Beam Angle Horizontal 30

Beam Angle Vertical 30

Control and Programming

Control Mode Auto, Built-in Program, DMX, Master Slave, Sound, Stand Alone

DMX Channels 2, 3, 4, 14, 24, 26

Protocols DMX

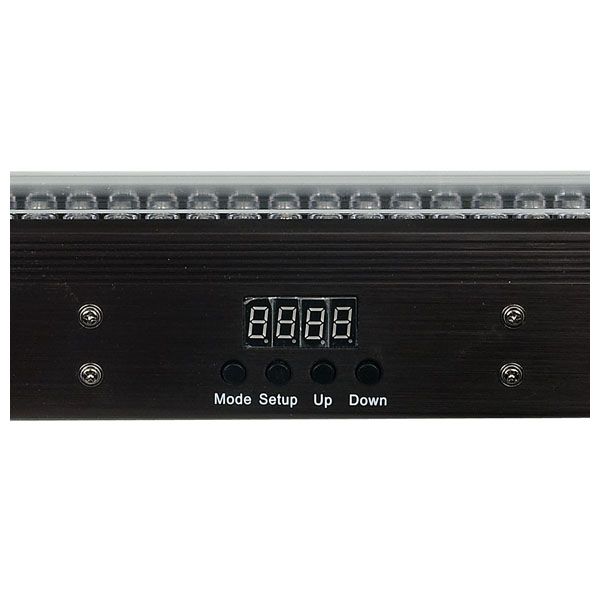

Display 7-segment

Dynamic Effects

Dimmer 0-100 %

Strobe 0-15 Hz

Electrical Specifications and Connections

Power Supply 100-240 VAC 50-60 Hz

Power Consumption 23

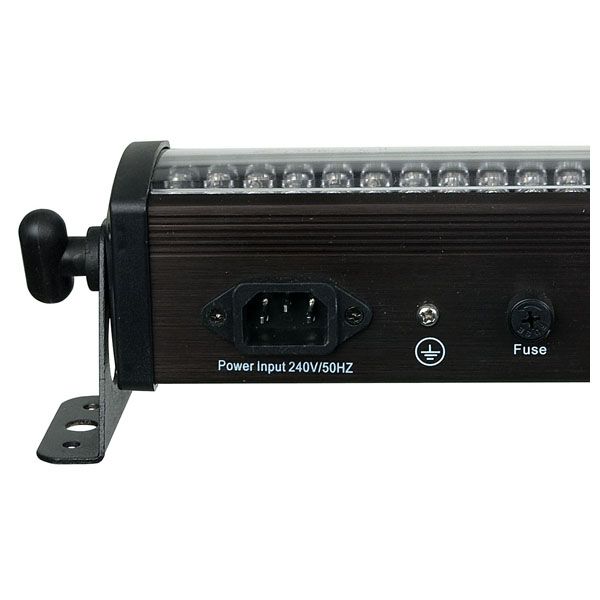

Power Connector in IEC

Power Connector out IEC

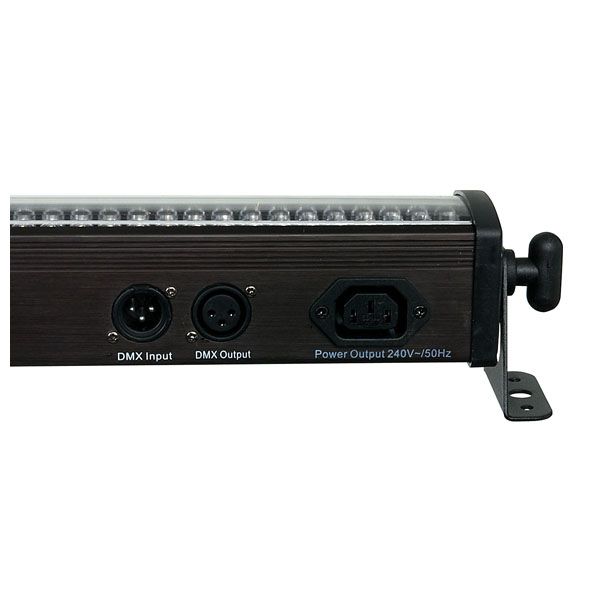

DMX Connector XLR 3P In/Out

DMX Connector in XLR 3P

DMX Connector out XLR 3P

Mechanical Specifications

Width (mm) 65

Height (mm) 88

Weight 1.58

IP Rating IP20 (indoor use only)

Housing Aluminum

Colour Black

Product Properties

Cooling Convection

Rigging

Mounting Options Bracket, Clamp, Floor, Wall

Safety Attachment No

Thermal Specifications

Maximum Ambient Temperature 40

Certifications/Qualifications

Reference Standard CE

Included Items

Included Cables IEC cable

Included Accessories User Manual

Included Rigging Bracket
