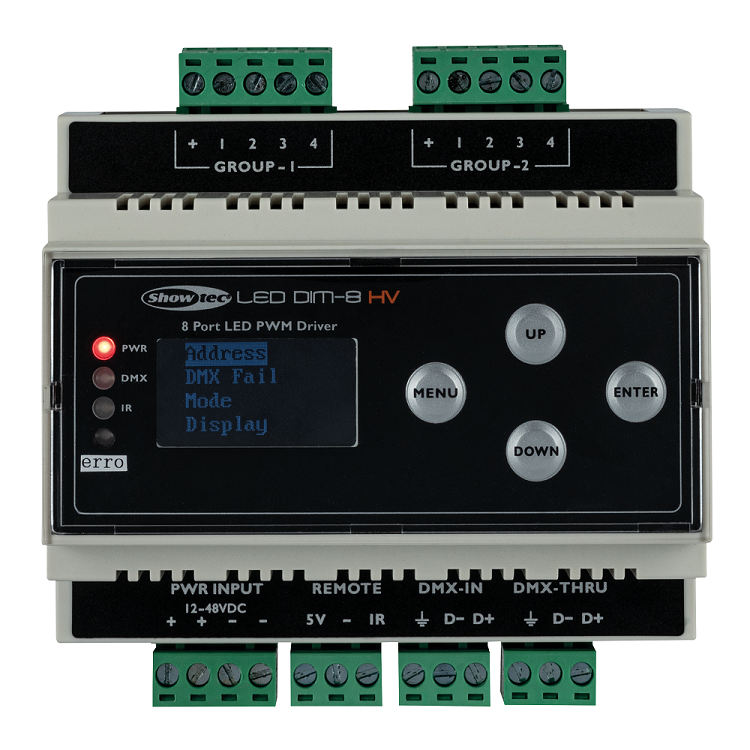

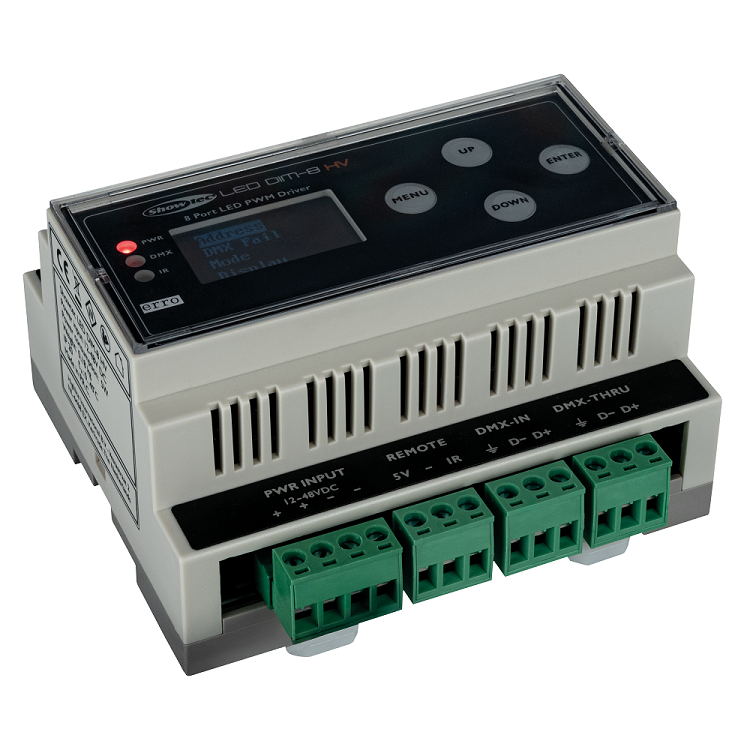

Showtec LED Dim-8 HV DIN rail

Wide input voltage range
2 PWM groups (RGBW)
Selectable PWM frequency
IR remote control available
DIN EN43880 form factor

The Showtec LED Dim-8 HV is the high-voltage version of the Showtec LED Dim-8 Install and the ideal compact fixed installation PWM dimmer for long RGBW LED strips. It offers two groups of 4 outputs for RGBW control with a maximum output of 8A per group, 16A in total. All connections are easy to make using plug-in Phoenix terminals. The LED Dim-8 HV is very user-friendly and universally configurable for different LED strips. It can control 12 V to 48 V constant voltage strips via DMX or as a stand-alone controller for single scenes and chases. The user interface is very convenient with a high quality O-LED display. The DIN rail mounted LED Dim-8 is ideal for networked system integration projects.

Control and Programming
Control Mode    DMX, IR, Manual, Remote
DMX Channels    8

Electrical Specifications and Connections
Power Supply        12-48 V DC
Output voltage      12-48 V DC
Power Consumption   5 W
Output Current (A)  16 A
Power Connector In  Phoenix
DMX Connector In    Phoenix
DMX Connector Out   Phoenix

Mechanical Specifications
Length (mm)         106 mm
Width (mm)          87 mm
Height (mm)         58 mm
Weight              0.22 kg
IP Rating           IP20 (indoor use only)
Housing             Plastic
Colour              Grey

Product Properties
LED Indicators      Power, Signal
DIN Rail Spacing    35 mm

Thermal Specifications
Maximum Ambient Temperature  40 °C
