Showtec LAMPY Re-Load 4

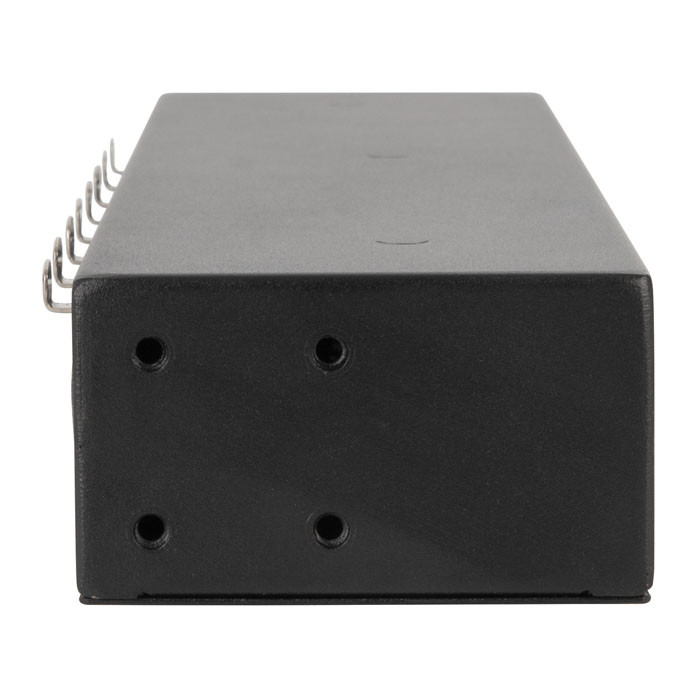

The LAMPY Re-Load 4 is a plug-and-play extension kit that releases four additional universes on any LAMPY console. When you are using fixtures with a lot of DMX channels, or just a lot of fixtures, you may sometimes run out of channels on your LAMPY and you need an additional DMX universe (or even more). The Re-Load 4 is the solution! It offers four additional universes (in total 2048 additional channels). It has both 3 and 5-pin DMX output connectors for each of the four additional universes. It has mounting brackets for easy installation in a 19” rack or flight case. The power supply input is fitted with a lockable DC plug and a 5V power supply is included.

Please note that the LAMPY Re-Load 4 requires software V2 or higher to be installed on the connected LAMPY console. In addition, the LAMPY Re-Load 4 does NOT enable Art-Net, sACN, full access to external monitor features, or a second fixture view. You will need a LAMPY DNGL or 2U LAMPY for this.

Specifications

Control and Programming

Control Mode DMX

DMX Channels 2048

Universes 4

Electrical Specifications and Connections

Power Supply 5 VDC

Power Consumption 5 W

Power Connector in Low Voltage DC plug

DMX Connector out XLR 3P, XLR 5P

Data Connector in USB B

Mechanical Specifications

Length (mm)279 mm

Width (mm) 72 mm

Height (mm) 44 mm

Weight 0.3 kg

IP Rating IP20 (indoor use only)

Housing Metal

Colour Black

Product Properties

LED Indicators Busy, Power

Thermal Specifications

Maximum Ambient Temperature 40 °C

Minimum Operating Temperature -5 °C

Included Items

Included Cables None

Included Accessories 19'' Rack installation kit, Adapter
