Infinity Banana Wing 2 extra Universes

Suitable for the Infinity Chimp

Expands any Chimp console with 2 universes

Enables playback information on external screen

Adds 2 DMX outputs onto your Chimp setup

Adds 20 extra playback faders

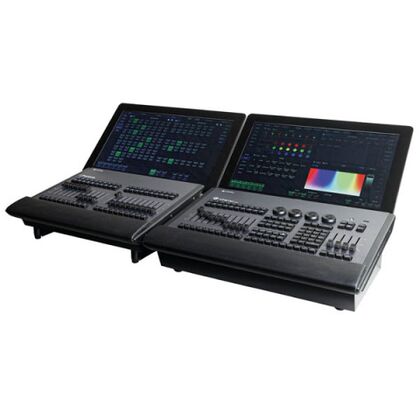

The Banana Wing is the ideal tool for extending the possibilities and flexibility of the Infinity Chimp consoles. The Banana Wing offers operators 20 extra playback faders and will release 2 extra universes on top of your Chimp’s capabilities. The console will recognize the presence of the Wing and reconfigure the second external monitor to show additional playbacks for the operator. The Banana Wing will also enable 2 universes of DMX and Art-Net when connected to your Chimp OnPC software.

Control and Programming

Control Mode DMX, PC Software

DMX Channels 1024

Buttons 60

Faders 20

Playback Faders 20

Electrical Specifications and Connections

Power Supply 100-240 VAC 50-60 Hz

Power Consumption 25 W

Power Connector in IEC

DMX Connector in XLR 5P

DMX Connector out XLR 5P

Data Connector in USB

Data Connector out USB

Mechanical Specifications

Length (mm) 487 mm

Width (mm) 400 mm

Height (mm) 115 mm

Weight 7.5 kg

IP Rating IP20 (indoor use only)

Housing Metal, Plastic

Colour Black

Product Properties

Cooling Passive

Thermal Specifications

Maximum Ambient Temperature 40 °C

Minimum Ambient Temperature -5 °C

Included Items

Included Cables IEC cable
