EventDOT 15 Q4

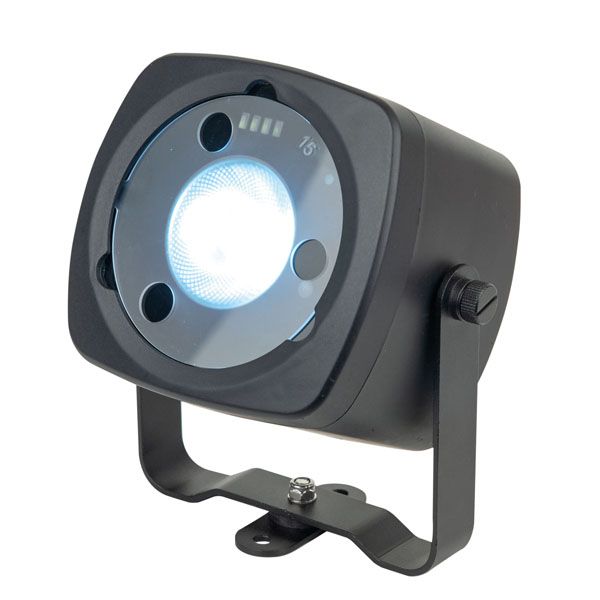

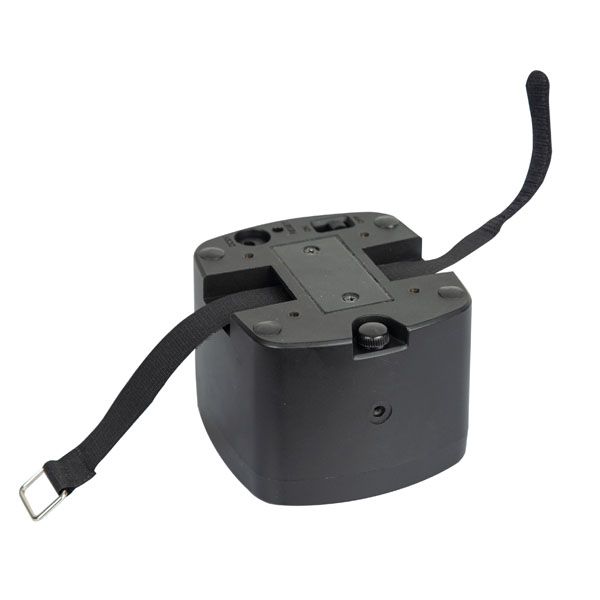

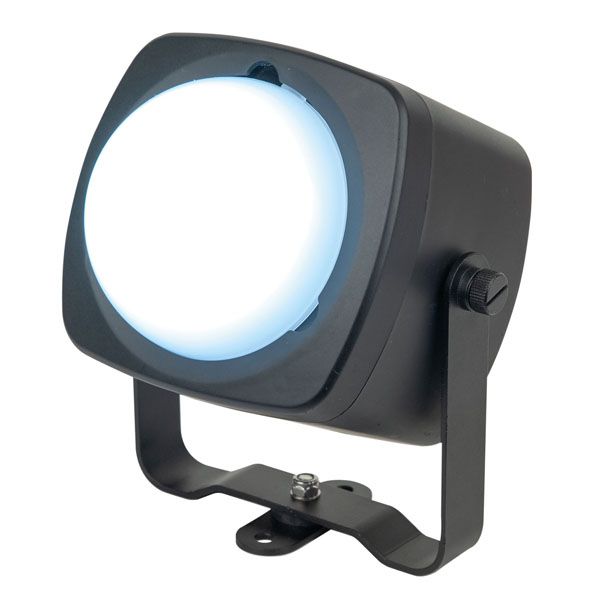

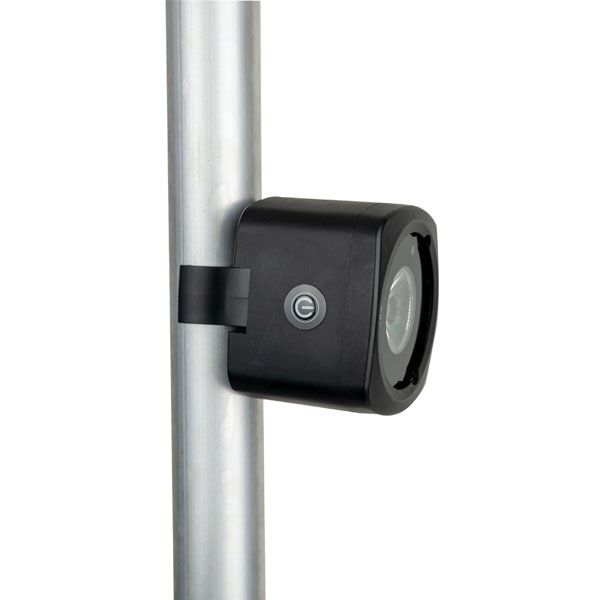

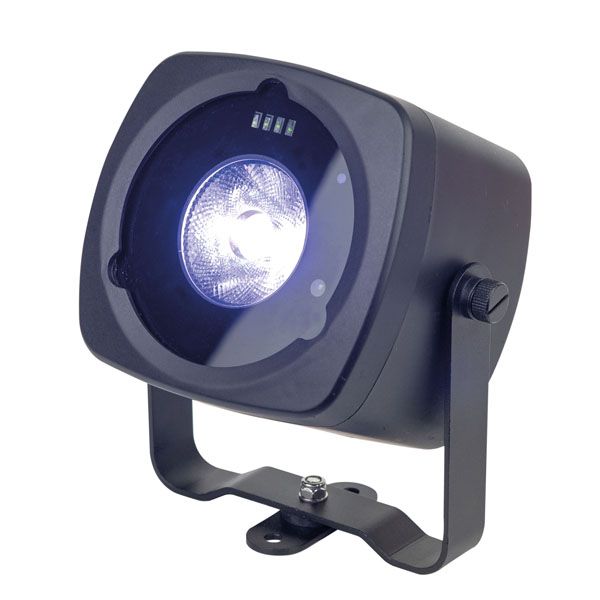

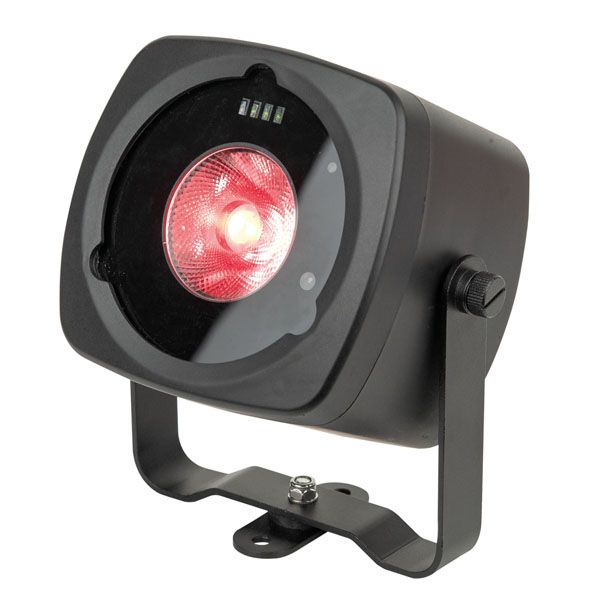

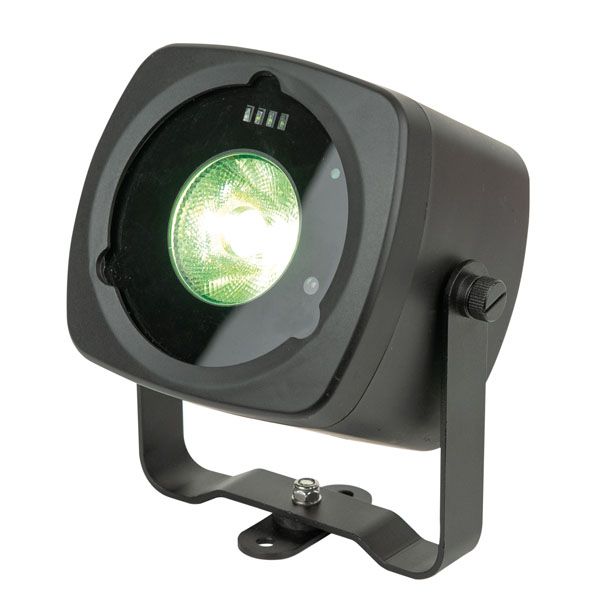

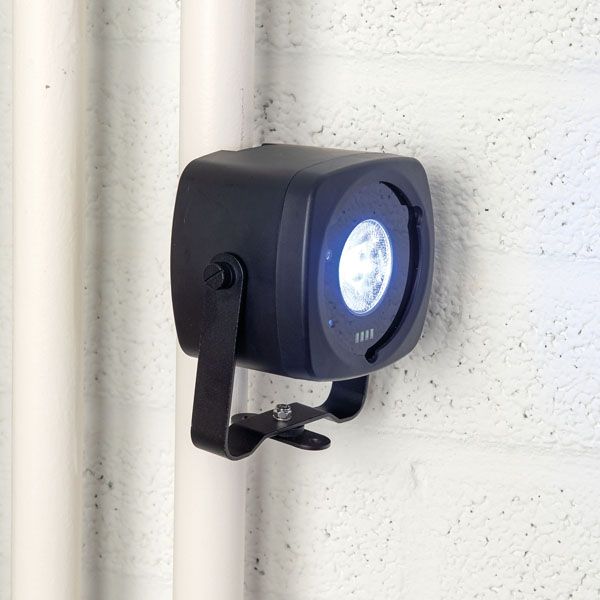

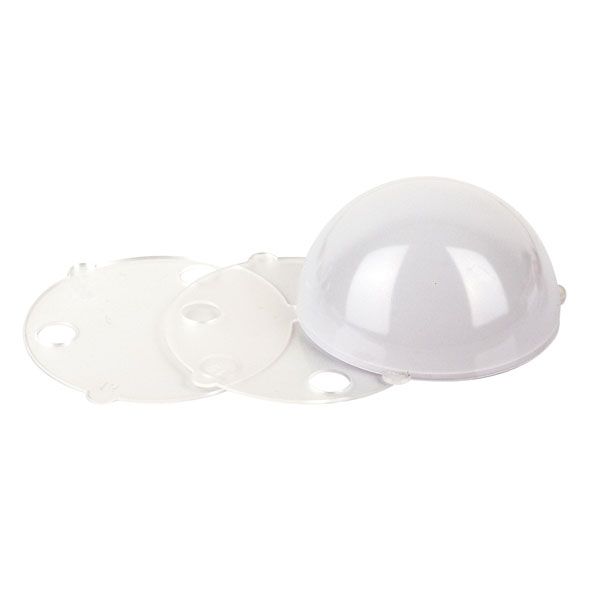

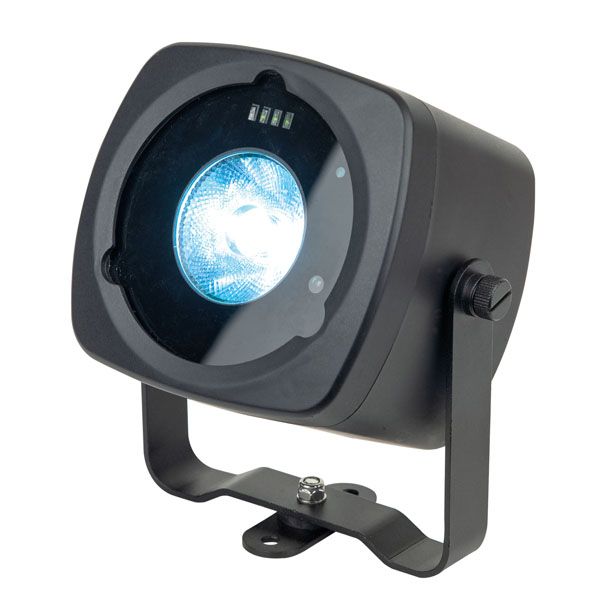

The Event Dot 15 is a compact but extremely versatile battery operated fixture. Equipped with an 15W RGBW and 8° optics it projects a tight and strong beam. In order to be more versatile two additional diffusors (15° and 30° degrees) as well a dome diffusor are included. The Event Dot 15 can be mounted in many positions due to the several mounting options. It comes standard with a free standing bracket, it has a built-in magnet for easy mounting on metal objects, it has a tilt adjuster for adjusting the beam when positioned flat on a floor and last but not least it can be mounted with Velcro due to the slot on the bottom of the fixture.
The Event Dot 15 can be controlled by Wi-Fi and infra-red (remote control optional available). Built-in colours are preprogrammed and by the app it is easy to setup and control your fixtures by your smartphone. For use in Wi-Fi mode we strongly suggest to use a professional router.
The Event Dot 15 is the right tool to illuminate the smallest detail of your event.

• Compact Size
• Multiple mounting possibilities
• Including 3 different diffusors
• Up to 16 hours battery life (color mixing)

Source

Light Source Type LED

Light Source Quantity 1

Light Source Power 15 W

LED Colour Type RGBW

Refresh Rate 1000 Hz

Lumen Total 118 lm

Lumen Red 52 lm

Lumen Green 157 lm

Lumen Blue 27 lm

Lumen White 148 lm

CRI 70

CCT 6500 K

Optical

Beam Angle Circular 8 °

Wireless Specifications

Carrier Frequency 2,4

Battery

Battery Type Lithium ion

Battery Voltage 7.4 V

Capacity 5.2 Ah

Runtime @Full 6 h

Runtime Average 16 h

Charging Time 4.5 h

Battery Lifetime 400 cycles

Control and Programming

Control Mode Auto, Built-in Program, DMX, IR, Manual

DMX Channels 1, 2, 4, 5, 6, 9

Protocols Art-Net, sACN

Wireless Wifi

Dynamic Effects

Dimmer 0-100 %

Strobe 0-20 Hz

Electrical Specifications and Connections

Power Supply 220V-240 VAC 50 Hz

Output Voltage 8.5 VDC

Power Consumption 20 W

Power Connector in Low Voltage DC plug

Mechanical Specifications

Length (mm) 143 mm

Width (mm) 101 mm

Height (mm) 81 mm

Weight 0,8 kg

IP Rating IP20 Rear, IP54 Front

Material Aluminium, Plastic

Housing ABS

Colour Black

Product Properties

Cooling Convection

Rigging

Mounting Options

Bracket, Ceiling, Clamp, Velcro

Safety Attachment Yes

Thermal Specifications

Maximum Ambient Temperature 40 °C

Minimum Operating Temperature 0 °C

Certifications/Qualifications

Reference Standard CE

Included Items

Included Opticals Diffusors, Lenses

Included Accessories Adapter, User Manual

Included Rigging Bracket
