Compact Par 7 Q4 - Complete black casing

Compact 7x 4 W RGBW LED Par

Double bracket for easy floor positioning

Narrow 15° fixed beam angle

Dimmer and strobe function

Manual, DMX and Master/Slave control

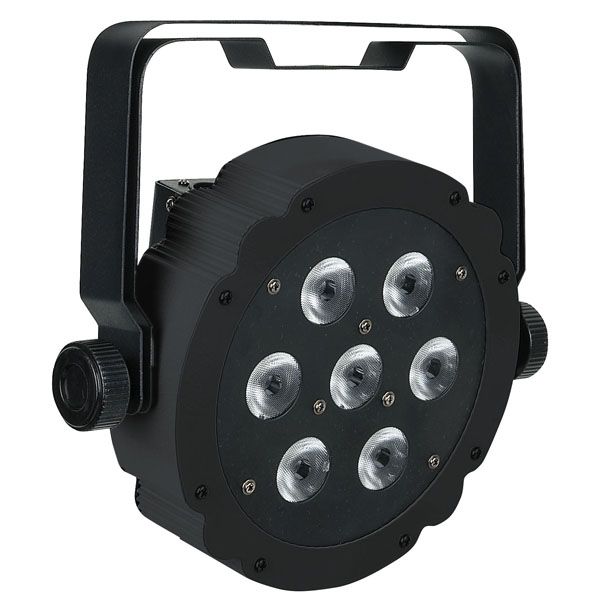

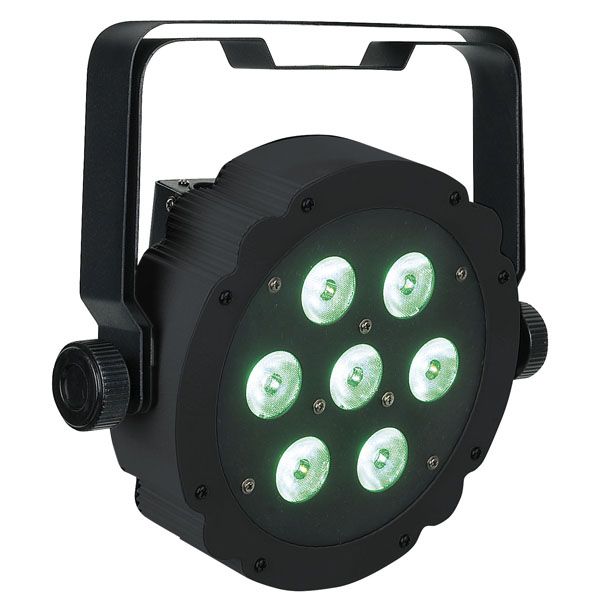

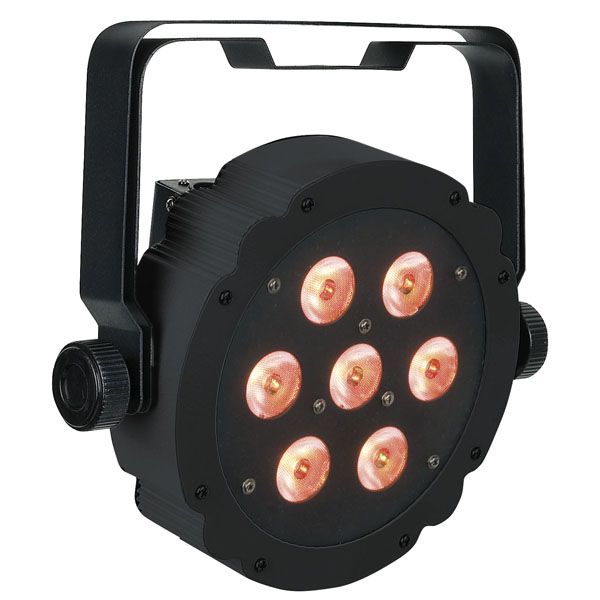

The Showtec Compact Par 7 Q4 is a compact 7x 4 watt RGBW LED Par with double bracket for easy floor positioning, suitable for indoor venues. It has a 15° fixed beam angle and features 0–100 % dimmer and 0–20 Hz strobe effects, perfectly suitable for short-throw colour mixing. The Compact Par 7 Q4 can be controlled manually, via DMX and Master/Slave in either Manual, Auto run and Sound-controlled mode with many available built-in programs. Its design fits in every setting with either black and grey housing.

Source

Light Source Type LED

Light Source Quantity 7

Light Source Power 4 W

LED Colour Type RGBW

Refresh Rate 7800 Hz

Lux @ 2m 1900 lx

Lumen Total 1100 lm

Optical

Beam Angle Circular 21°

Control and Programming

Control Mode Auto, DMX, Master Slave, Sound, Stand Alone

DMX Channels 4, 6, 11

Protocols DMX

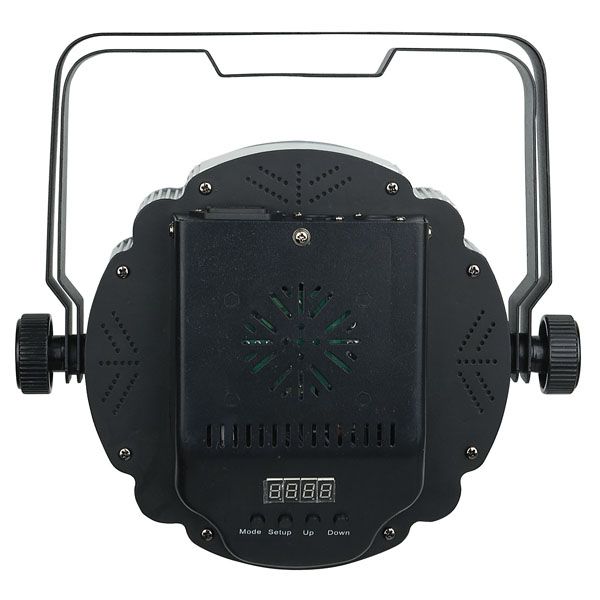

Display 7-segment

Dynamic Effects

Dimmer 0-100 %

Strobe 0-20 Hz

Electrical Specifications and Connections

Power Supply 100-240 VAC 50-60 Hz

Power Consumption 30 W

Power Connector in IEC

DMX Connector XLR 3P In/Out

DMX Connector in XLR 3P

DMX Connector out XLR 3P

Cable Length 1.5 m

Mechanical Specifications

Length (mm) 275 mm

Width (mm) 95 mm

Height (mm) 256 mm

Weight 2.2 kg

IP Rating IP20 (indoor use only)

Housing Aluminum

Colour Black

Product Properties

Cooling Convection

Rigging

Mounting Options Clamp, Surface

Thermal Specifications

Maximum Ambient Temperature 40 °C

Minimum Operating Temperature -10 °C

Included Items

Included Cables IEC cable

Included Accessories User Manual

Included Rigging Bracket
