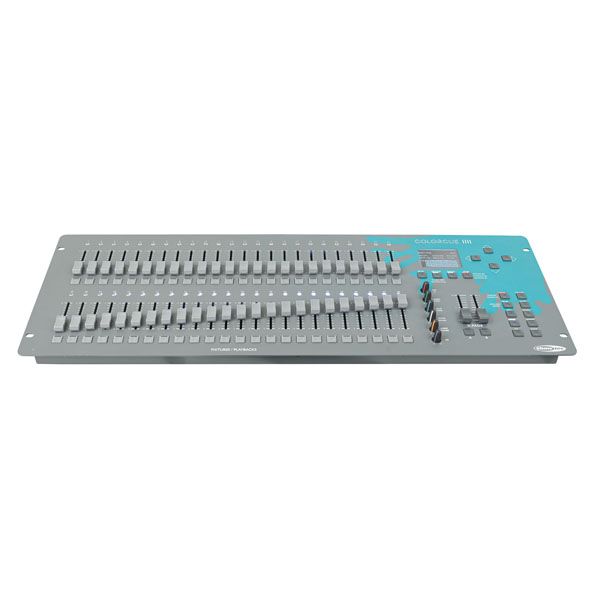

ColorCue 4 LED Controller

Intelligent 48-fader LED DMX controller

Suitable for 3 to 6 colour LEDs

48 user colours

48 user chases with up to 99 steps

Manual, Auto run and Sound-controlled mode

The Showtec ColorCue 4 is an intelligent 48-fader LED DMX controller for easily controlling 3 to 6 colour LED fixtures with up to 288 DMX channels, suitable for any venue. Its 6 rotary encoders enable a quick control for various colour engines, from 3-colour RGB to 6-colour RGBWA-UV. The ColorCue 4 comes with a memory button below every fader for smart control over your colours, chases and user settings. Equipped with 2 smart master faders and an intuitive LED display, you can easily control 2 sections and attach fixtures to any of the 48 available fader. For changing colours and effects in a loop, you can create and playback 48 chases with a maximum of 99 steps per chase. The chase can be controlled in Manual, Auto run or Sound-controlled mode.

Control and Programming

Control Mode Built-in Program, Sound, Static Dimmer

DMX Channels 288

Protocols DMX

Display LCD

Buttons 68

Faders 50

Memories 1000

Electrical Specifications and Connections

Power Supply 12 VDC

Power Consumption 15 W

Power Connector in Low Voltage DC plug

DMX Connector out XLR 3P

Audio Triggers 1

Mechanical Specifications

Length (mm) 740 mm

Width (mm) 280 mm

Height (mm) 100 mm

Installation Depth (excl. connector) 100 mm

Weight 5.6 kg

Rack Units 6 U

IP Rating IP20 (indoor use only)

Housing Metal

Colour Grey, Neon Green

Product Properties

LED Indicators Operation mode, Output level

Thermal Specifications

Maximum Ambient Temperature 40 °C

Included Items

Included Cables None

Included Accessories Adapter
