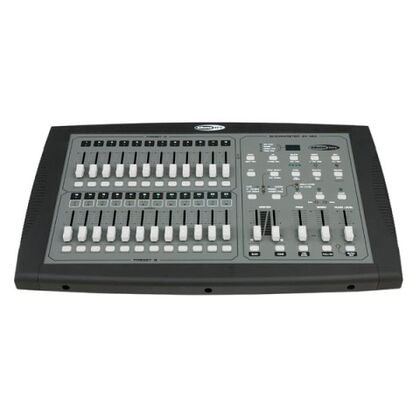

Showmaster 24 MKII

24 multifunctional channel faders

Up to 48 Scenes / Chases with max 999 steps

Detachable frame

Midi In & Out

Remote black out/full on possibility

The Showmaster 24 MKII is a 2-banks 12 fader, 1-bank 24 fader mixing console, it controls DMX and has also the capability to be used with MIDI protocol to allow real-time programs. The Showmaster 24 MKII controls 2x 12 channels (single bank) or 24 channels. The Showmaster 24 MKII can program 48 scenes or chases of 999 steps or a loop with a total of 11988 steps. Programs can be run automatically or by external or internal music-input. It is also possible to control your lightshow by the built in MIDI-interface to allow a real-time live-show to your music.

Incl. 1 power adapter

Control and Programming

Control Mode Manual, MIDI, Sound

DMX Channels 24

Buttons 44

Chases 48

Faders 29

Memories 23976

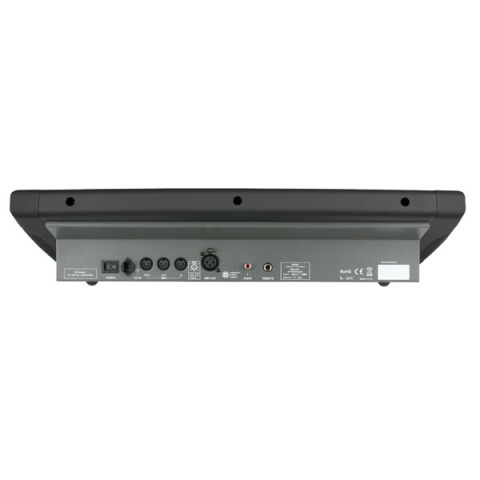

Electrical Specifications and Connections

Power Supply 12 VDC

Power Consumption 6 W

Power Connector in Low Voltage DC plug

DMX Connector out XLR 3P

Midi Connector Yes

Audio Triggers 2

Mechanical Specifications

Length (mm) 530 mm

Width (mm) 330 mm

Height (mm) 150 mm

Weight 4.8 kg

Rack Units 6 U

IP Rating IP20 (indoor use only)

Housing Metal, Plastic

Colour Black, Grey

Product Properties

LED Indicators Operation mode, Output level, Signal

Thermal Specifications

Maximum Ambient Temperature 40 °C

Included Items

Included Cables None

Included Accessories Adapter
