Showgear Pipe & Drape Case for FOH Kit - Premium Line

For up to 19 m (62 ft) wide

High-quality, heavy-duty case and hardware

Designed for Pipe & Drape

Stores all components for a 19 m (62 ft) wide setup

Hinged lid

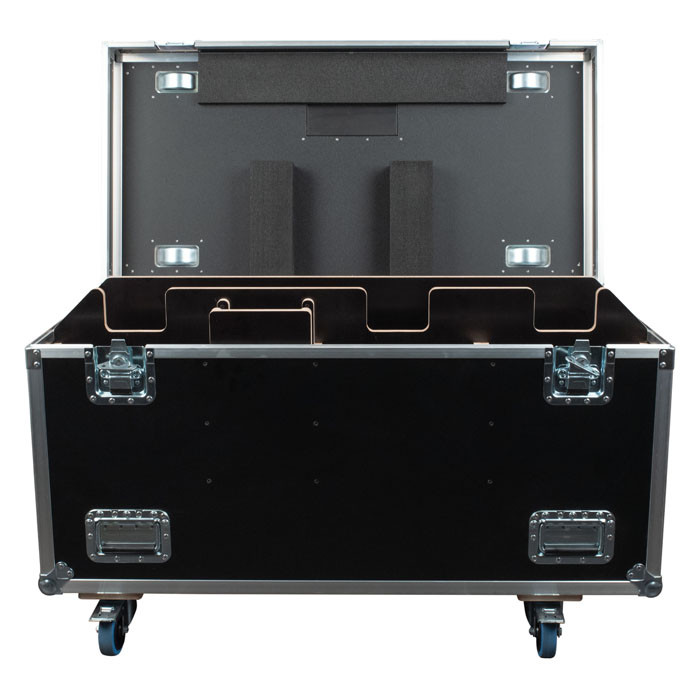

This Premium Line case is designed to hold the components of a complete Pipe & Drape FOH kit. The contents of such a kit can cover stages up to 19 m (62 ft) wide. This heavy-duty case is constructed from 10 mm thick birch plywood with 18 mm phenolic plywood interior. It has Penn Elcom hardware, Tente swivel castors, two of which have brakes, and a production label dish. Inside the case there is space reserved for the following items:

- 12 Baseplates (350 x 300 mm)
- 12 Baseplate Pins
- 12 Fixed Uprights 120 (h) cm
- 4 Telescopic Drape Supports 90-120 (l) cm
- 8 Telescopic Drape Supports 120-180 (l) cm
- Separate compartment with space for 6 pleated or 9 unpleated P&D curtains
(Equipment not included)

Mechanical Specifications
Height (mm)     730 mm
Depth (mm)      600 mm
Length (mm)     1200 mm
Colour          Black

Product Properties
Flightcase Application  Utility Case
Handles                 Front, Back, Left side, Right side
Handles Type            Pull out
Packing Capacity        12 x Fixed Upright, 4 x Drape Support 90-120 cm, 8 x Drape Support 120-180 cm, 12 x Baseplate pin, 12 x Baseplate 350 x 300 mm
Tourlabel Space         Yes
Aluminium Extrusion Frame Size  30 mm x 30 mm
Castors                 4
Castor Size             125 mm
Castor Type             Swivel with brake + without brake
Latch Type              Butterfly
Latch Brand             Penn Elcom
Hinge Type              Fixed
