IP65 rating with closed sealing cap or mated with IP65-rated XLR connectors
Includes protective cap with seal
Gold-plated contacts

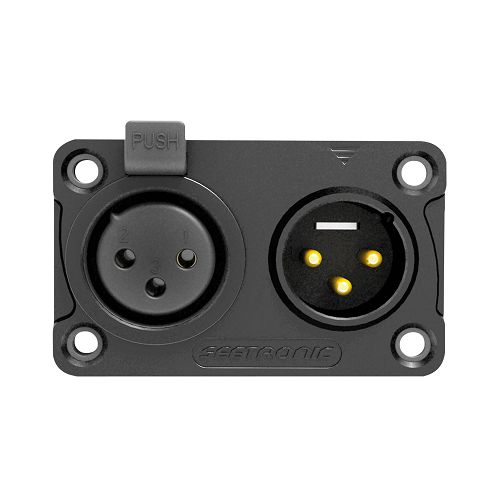

This 3-pin XLR In/Output Combination Chassis is a locking XLR dual combination connector with gold-plated contacts. It comes with a sealing cap and is rated IP65 when the sealing cap is closed or when a corresponding IP65-rated XLR connector is inserted.
Electrical Specifications and Connections
Rated Current (A) 16 A
Brand Connector 1 Seetronic
Pins 3
Mechanical Specifications
Length (mm) 50 mm
Height (mm) 33.1 mm
Width (mm) 52.8 mm
Weight 0.01 kg
IP Rating IP65 Front
Housing Zinc
Colour Black
Contact Resistance 5 < mΩ
Product Properties
Pin Connection Solder
Locking Device Latch
Contact Type Gold plated
Thermal Specifications
Maximum Ambient Temperature -30 °C
Minimum Ambient Temperature 80 °C
