Rugged zinc diecast shell
Suitable for cables from 3.5 mm - 8 mm
Internal thread on shell is well protected against any damage

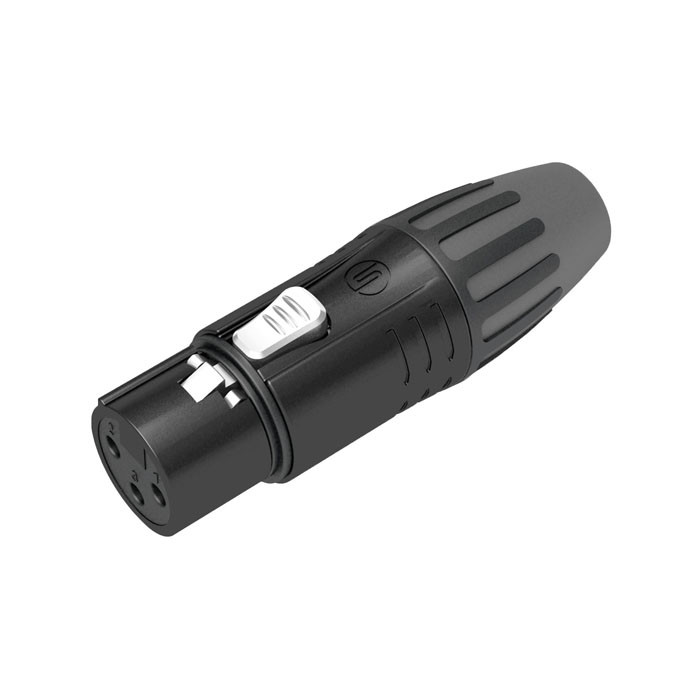

This 3-pin XLR cable connector has a black-coated zinc diecast housing. It comes with two cable chucks for cables with diameters of 3.5 - 6 mm and 6 - 8 mm.
Electrical Specifications and Connections
Flashover Voltage 1500 V
Rated Current (A) 16 A
Pins 3
Maximum Wire Size 2.5 mm²
Maximum Wire Size AWG 14 AWG
Mechanical Specifications
Length (mm) 64 mm
Diameter 21.3 mm
IP Rating IP40
Housing Metal
Colour Black
Contact Resistance 3 < mΩ
Product Properties
Pin Connection Solder
Locking Device Latch
Contact Type Silver plated
Thermal Specifications
Maximum Ambient Temperature 80 °C
Minimum Ambient Temperature -30 °C
