For D-size mounting holes
IP65 when using suitable IP65 counterpart (SCWF3B, not included)
Compatible with regular XLR 3-pin connectors
Gold-plated contacts
UL94-HB flame retardant

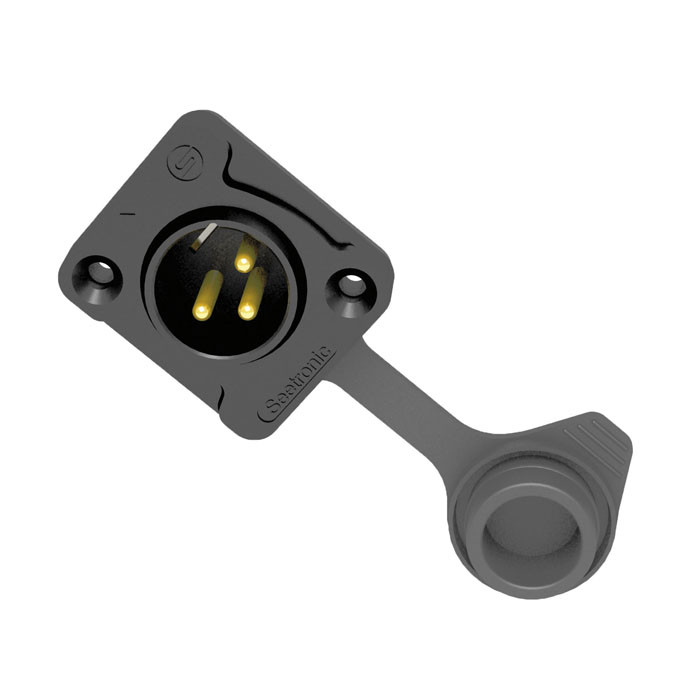

This 3-pin air-tight and waterproof XLR chassis connector has a zinc diecast front plate and polyamide housing, fitting D-size mounting holes. It has gold-plated contacts and comes with a protection cap and sealing gasket, making it IP65 rated and suitable for use in wet conditions. It must be installed from the front of the panel.
Electrical Specifications and Connections
Flashover Voltage 1500 V
Rated Current (A) 16 A
Impedance 5 Ω
Pins 3
Mechanical Specifications
Length (mm) 28.7 mm
Height (mm) 33.1 mm
Width (mm) 27.7 mm
IP Rating IP65 Front
Housing Metal
Colour Black
Contact Resistance 5 < mΩ
Product Properties
Pin Connection Solder
Locking Device Latch
Contact Type Silver plated
Thermal Specifications
Maximum Ambient Temperature 80 °C
Minimum Ambient Temperature -30 °C
