Feedthrough type (BNC on front and back)
Gold-plated centre contact
Zinc diecast housing with grounded panel mount

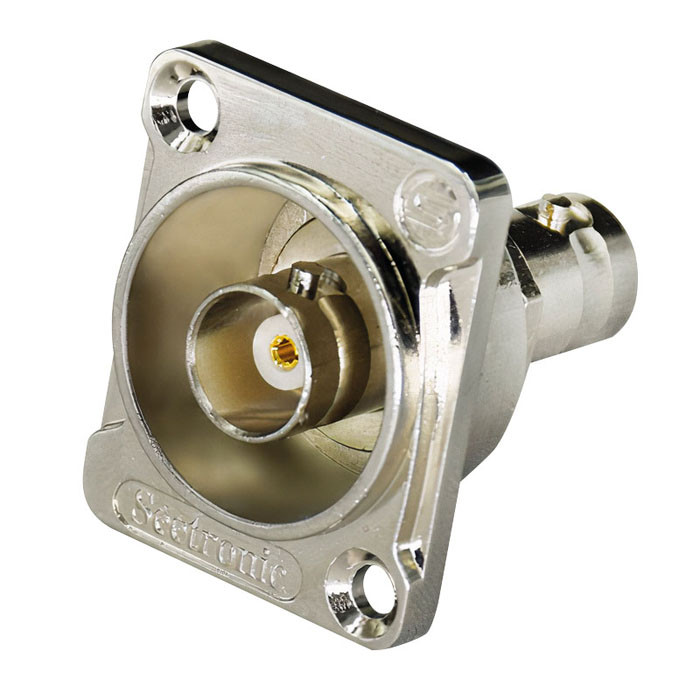

This BNC chassis connector fits D-size holes and installs from the front. On the back, this feedthrough connector has a BNC socket that accepts a BNC connector. Its true 75-Ω design meets the stringent HD requirements. It has a zinc diecast shell and uses gold-plated centre contacts.
Mechanical Specifications
Length (mm) 32 mm
Height (mm) 31 mm
Width (mm) 26 mm
Diameter 22.5 mm
Weight 0.1 kg
IP Rating IP20 (indoor use only)
Housing Zinc
Colour Black
Contact Resistance 3 < mΩ
Product Properties
Contact Type Brass
Thermal Specifications
Maximum Ambient Temperature 80 °C
Minimum Ambient Temperature -30 °C
