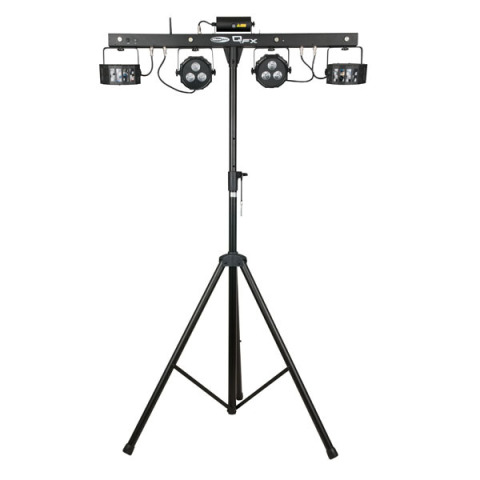

The Showtec QFX combines LED RGB spots, Derby fx, a Laser and a Strobe effect onto a single control bar. QFX maximizes convenience and ease of set-up and take-down for mobile entertainers who want to create a dynamic lighting experience for any event. The RG laser has many versatile grating & burst effects and is equipped with a key lock and remote interlock. The strobe has 4 sections with different preprogrammed patterns. The LED spot and Derby FX have RGB colors can be selected individually or in many preprogrammed combinations. The system is complete including a tripot stand, wireless footswitch, IR remote and carrying bags to protect the set during transport. The QFX controller bar features phenomenal built-in automated and sound-activated programs that include all 4 effects to make one complete show.
Attention, the laser only works when the interlock connector is connected with a remote interlock (ordercode 51316). You can test if the laser works properly with the included test connector. If you use the laser in public area's an remote interlock is necessary for safety regulations.
Attention, the laser only works when the interlock connector is connected with a remote interlock (ordercode 51316). You can test if the laser works properly with the included test connector. If you use the laser in public area's an remote interlock is necessary for safety regulations.
- 4 FX on 1 Bar
- Incl. Wireless footcontroller & iR remote
- Incl. Tripod + bag & Transport case
- Effects interchangeable on bar
- 130mW RG Laser
Source
Light Source Type Diode, DPSS, LED
Light Source Quantity Par 6
Light Source Quantity Effect 6
Light Source Power Par 3
Light Source Power Effect 2
LED Colour Type RGB, White
LED Strobe Yes
LED Strobe Quantity 4
LED Strobe Power 4
Drive Current 0.95
Laser Class 2M
Laser Colour Red, Green
Laser Power Total 130
Laser Power Red 100
Laser Wavelength Red 650
Laser Power Green 30
Laser Wavelength Green 532
Lux @ 2m 1205
Optical
Beam Angle Circular 24
Control and Programming
Control Mode Auto, DMX, IR, Master Slave, Sound
DMX Channels 3, 5, 9, 27
Protocols DMX
Display 7-segment, LED
Dynamic Effects
Strobe 0-20 Hz
Electrical Specifications and Connections
Power Supply 100-240 VAC 50-60 Hz
Power Consumption 45
Power Connector in IEC
Power Connector out IEC
DMX Connector in XLR 3P
DMX Connector out XLR 3P
Mechanical Specifications
Height (mm) 378
Width (mm) 1185
Depth (mm) 110
Weight 6.6
IP Rating IP20 (indoor use only)
Housing Metal
Colour Black
Product Properties
Cooling Convection
Safety Features Interlock, Key Switch, Safety Eye
Rigging
Mounting Options Bracket, Clamp, Stand
Safety Attachment Yes
Thermal Specifications
Maximum Ambient Temperature 40
Included Items
Included Cables IEC cable
Included Accessories Bag, Footswitch, Interlock connector, Interlock key(s), Stand
Included Rigging Bracket
Included Remotes IR Remote
Manufacturer:
Showtec
