Προσφορά Οθόνη DMT Pixelscreen E8 - 1500 nits κομπλέ με καλώδια σύνδεσης ρεύματος και σήματος, Flight Case, επεξεργαστής και Rigging Bars
Αναλυτικά Αποτελείται απο

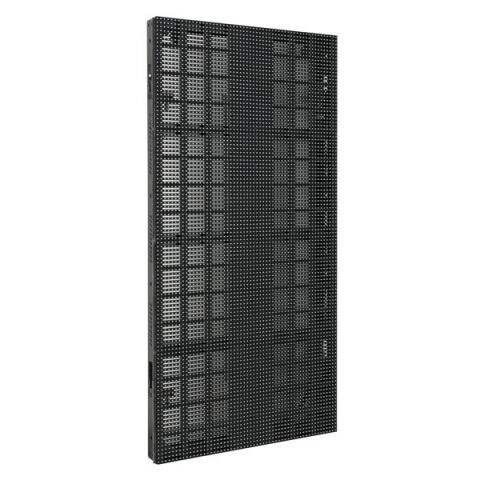

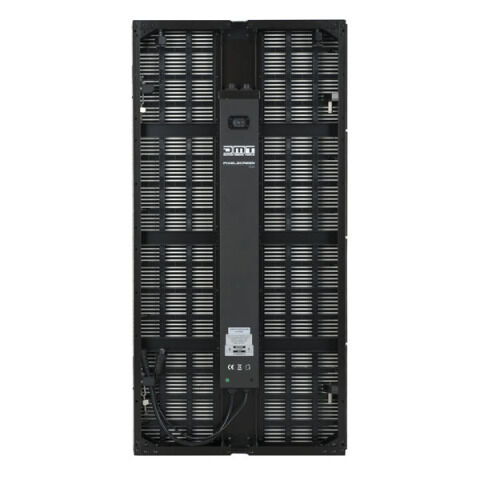

25 (1spare) τεμάχια DMT Pixelscreen E8 - 1500 nits code (101369)
4 τεμάχια Rigging Bar for Double E8 (101379)

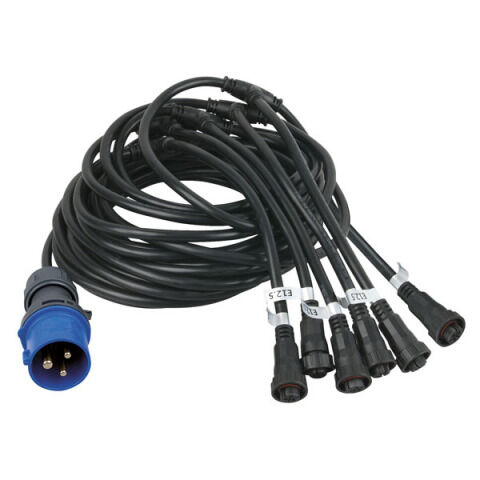

1 τεμάχια DMT Power Cable for E/F Series Split 10m 6x Output (101394)

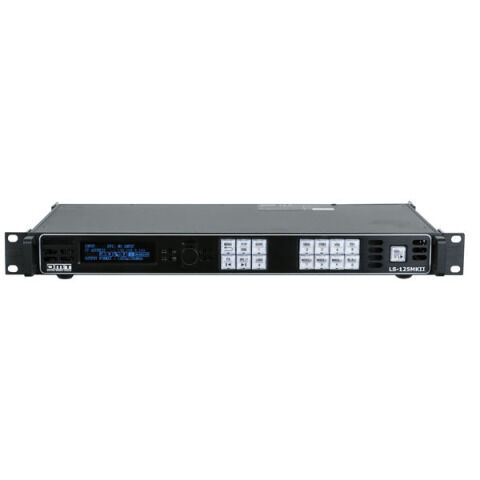

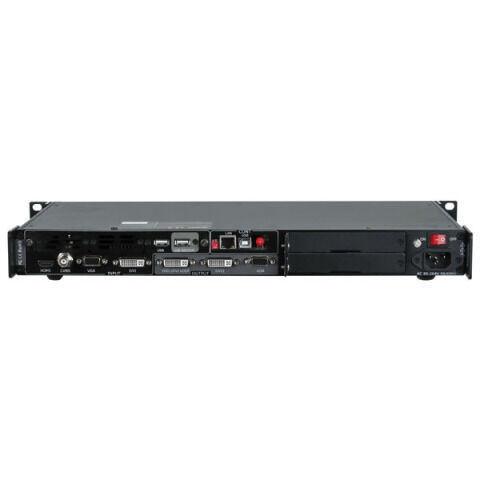

1 τεμάχιο DMT LS-125 MKII LED Processor (101603)

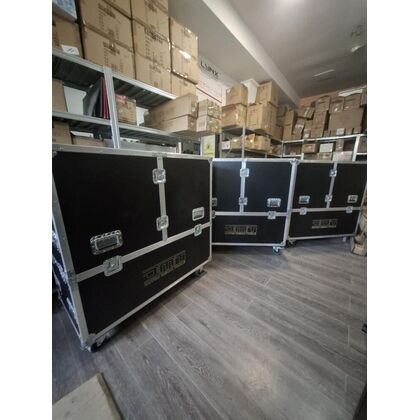

3 τεμάχια Case for 8 DMT (D7290)
1 τεμάχιο 10m Data Input Cable (101395)
4 τεμάχια Data Link Cable (101396)
2 τεμάχια Powercable E/F Series (101398)
Είναι σε κατάσταση καινούργιας, έχει λειτουργήσει μόνο 2 φορές.
5 different angle positions
Easy Rigging
Lightweight only 9.5 kg
8.9 mm real pixel pitch..

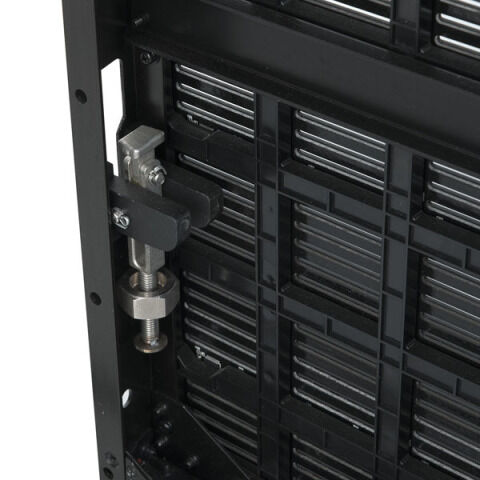

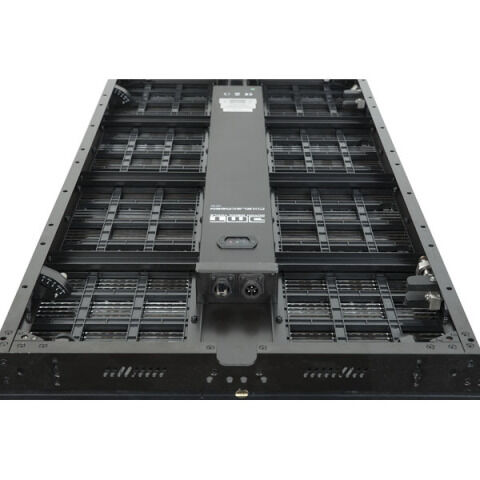

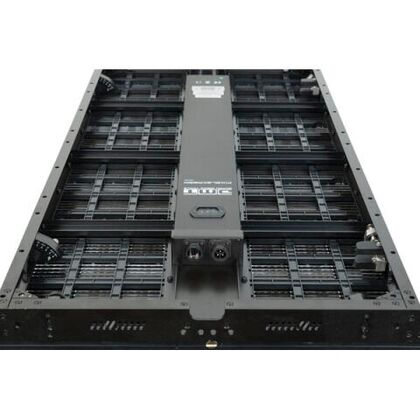

The Pixelscreen E8 is the latest addition in the popular E-series LED screens. It offers an excellent price-performance ratio. Each Pixelscreen is 500 x 1000 mm and are easy to rig by the dedicated rigging bars. Due to the fact that the screensize is exactly the same as the E6 creative setups and combinations are possible and easy to achieve.

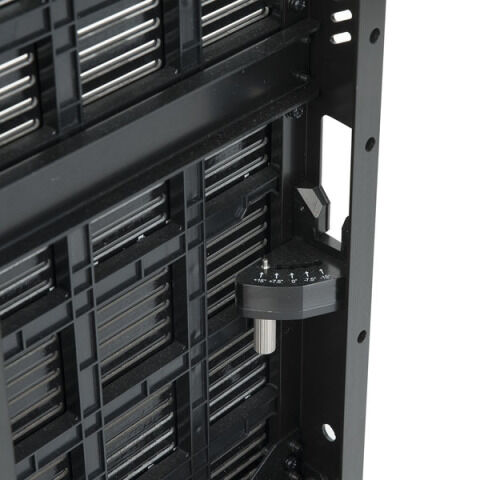

The Pixelscreen E8 also can be rigged in 5 different angle positions (15°, 7.5°, 0°, -7.5°, -15°).
Its lightweight structure allows you to rig your screen in nearly any venue and it makes assembly easy and efficient.
Optical
Pixel Pitch Horizontal 8.9 mm
Pixel Pitch Vertical 8.9 mm
Cabinet Resolution Width 56 px
Cabinet Resolution Height 112 px
Viewing Angle Horizontal 140°
Viewing Angle Vertical 140°
Minimum Viewing Distance 8 m
Cabinet Ratio 1:2
Transparency 20>#/p###
Source
Light Source Type LED
LED Type White Face
Brightness 1500 nits
Control and Programming
Control System Linsn
Refresh Rate Screen 1000 Hz
Electrical Specifications and Connections
Power Supply 240 VAC 50-60 Hz
Power Consumption 200 W
Power Consumption Average 70 W
Power Connector in Dedicated connector
Power Connector out Dedicated connector
Data Connector in Dedicated data connector
Data Connector out Dedicated Data Connector
Mechanical Specifications
Cabinet Width 500 mm
Cabinet Height 1000 mm
Cabinet Depth 62 mm
Weight 9.5 kg
Curved Angles -15, -7.5, 0, 7.5, 15°
IP Rating IP20 (indoor use only)
Housing Steel
Product Properties
Cooling Convection
Maintenance Rear Service
Rigging
Rigging Horizontal Max. 10 Panels Panels
Rigging Vertical Max. 0 Panels Panels
Thermal Specifications
Maximum Ambient Temperature 45 °C
Minimum Ambient Temperature -10 °C
Οι τιμές ΔΕΝ συμπεριλαμβάνουν ΦΠΑ 24%
