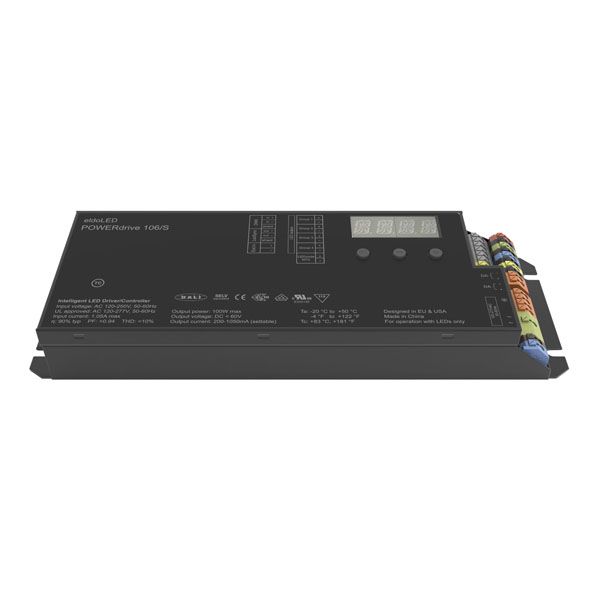

100 W dimmable RGB(W) LED driver
Made for DMX/DALI environment
Maximum energy and operational efficiency
2—57 VDC and 200—1050 mA
Control and Programming
Control Mode DALI , DMX
DMX Channels 4
Protocols DMX
Electrical Specifications and Connections
Power Supply 120-250 VAC 50-60 Hz
Output Voltage Vf/Vo Minimum 2 VDC
Output Voltage Vf/Vo Maximum 57 VDC
Power Consumption 100 W
Minimum Output Current (mA) 200 mA
Maximum Output Current (mA) 1050 mA
Power Connector in Open End
Power Connector out Open End
DMX Connector in Open end
DMX Connector out Open end
Data Connector in Open End
Data Connector out Open End
Mechanical Specifications
Length (mm) 230 mm
Height (mm) 80 mm
Width (mm) 30 mm
Weight 0.95 kg
IP Rating IP20 (indoor use only)
Material Metal
Housing Metal
Colour Black
Thermal Specifications
Maximum Ambient Temperature 50 °C
Minimum Ambient Temperature -20 °C
Certifications/Qualifications
Energy Efficiency Class T/B/D
