Polar 100 Beam IP65 Moving Head USED stock

Powerful 100 W LED Beam Moving Head

Highly focused 1.7° beam angle

8 bi-rotating gobos + open & 9 colours + white

IP65 (dust and water resistant, fit for outdoor use)

Motorised focus

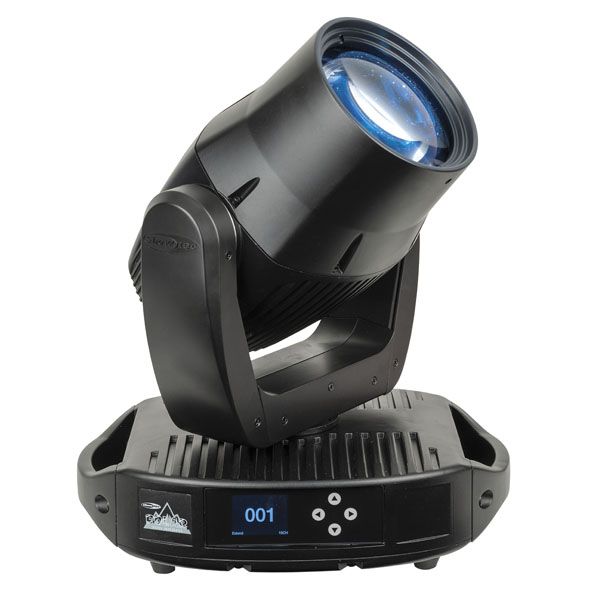

The Showtec Polar 100 Beam is a powerful and fully featured, yet compact and lightweight 100 watt LED Beam Moving Head with razor-sharp 1.7° beam angle, suitable for both in- and outdoor applications. Its 5-facet circular and 24-facet linear prism with adjustable rotation speed splits the beam to cover a larger area. By using its bi-rotating 8 gobos + open and 9 dichroic colours + white, including rainbow-flow effect, you can easily create nice optical effects. Each function and effect, like its dimmer and strobe function and linear focus, can be controlled via DMX, Art-net, RDM, sACN and W-DMX (wireless).

Source

Light Source Type LED

Light Source Quantity 1

Light Source Power 100

Refresh Rate (min) 1200

Refresh Rate (max) 25

Lux @ 2m 991823

Lux @ 3m 440810

Lux @ 5m 170000

Lumen Total 4337

CRI 75

CCT 8500

Optical

Beam Angle Circular (max) 1

Focus Motorised

Control and Programming

Control Mode Built-in Program, DMX, Manual

DMX Channels 13, 16, 19

Protocols Art-Net, DMX, RDM, sACN

Wireless Wireless DMX

Display OLED, Touch

Dim Curve Linear, Square, I-Square, S-Curve

Dimmer Resolution 16 bit

Focus Resolution 16 bit

Colour Wheel Resolution 16 bit

Dynamic Effects

Dimmer 0-100 %

Strobe 0-25 Hz

Prism 1 24-facet, Circular

Prism 2 5-facet, Linear

Prism Overlay Yes

Prism Index & Rotate Yes

Colour System Colour Wheel

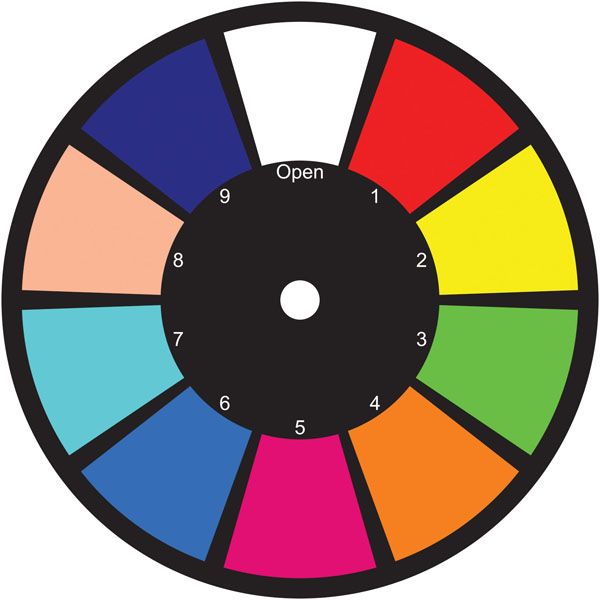

Dichroic Colour Wheel 9 + Open

Gobo Wheel Index & Rotate Yes

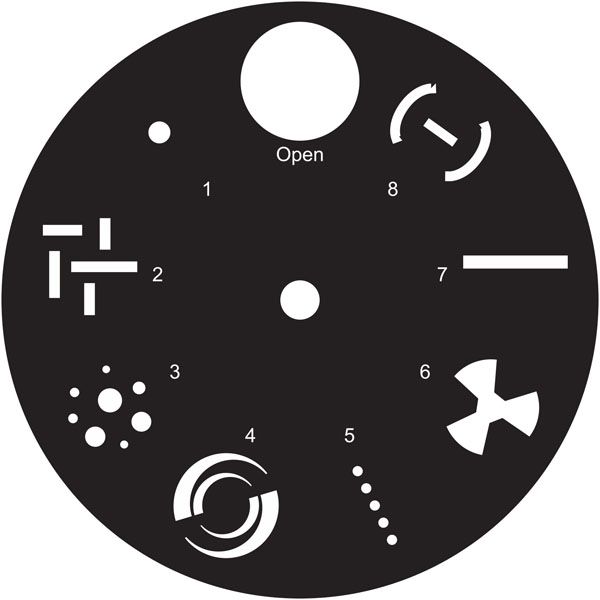

Gobo Wheel 8 + Open

Movement

Pan 540

Tilt 220

Pan/Tilt Resolution 16-bit

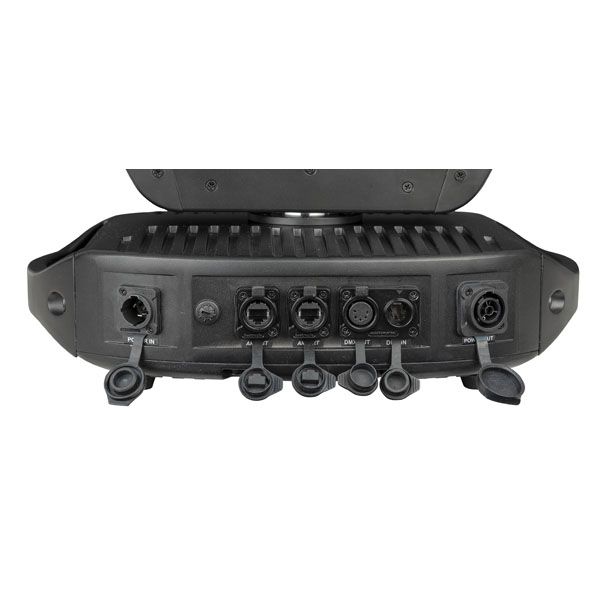

Electrical Specifications and Connections

Power Supply 100-240 VAC 50-60 Hz

Power Consumption 180

Fuse 6.3

Power Connector in Power Pro True

Power Connector out Power Pro True

DMX Connector XLR 5P In/Out

DMX Connector in XLR 5P

DMX Connector out XLR 5P

Data Connector in RJ45

Data Connector out RJ45

Mechanical Specifications

Length (mm) 482

Width (mm) 410

Height (mm) 295

Weight (kg) 19.52

IP Rating IP65

Housing Aluminum die-cast

Colour Black

Product Properties

Cooling Convection

Rigging

Mounting Options Quick-Lock

Safety Attachment Yes

Thermal Specifications

Maximum Ambient Temperature 40

Maximum Surface Temperature 70

Minimum distance till objects 1.3

Certifications/Qualifications

Reference Standard CE, MET

Included Items

Included Cables powerCON TRUE1 cable

Included Rigging Quick-Lock Bracket
