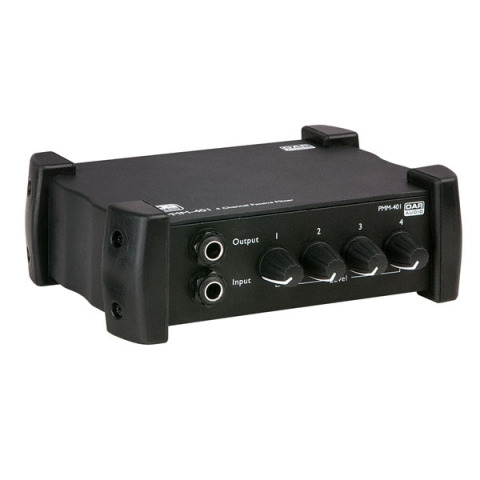

DAP PMM-401 4-channel passive jack audio splitter/mixer

[Sign in to view price]
D1531
Contact for Availability
Please sign in to buy

This product cannot be added to the
cart because you are not logged in.

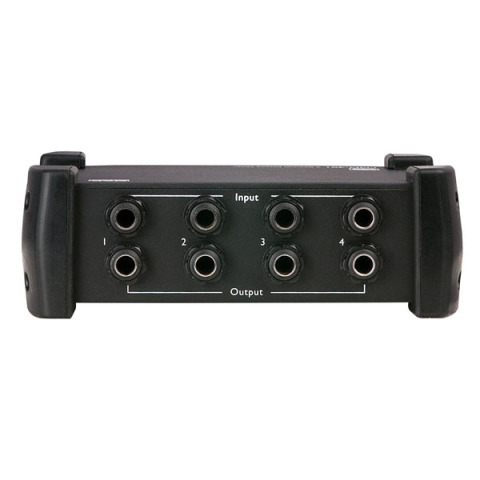

1-in/4-out or 4-in/1-out - 6.3 mm TRS

Stereo inputs and outputs

No power-supply needed

Free of noise and distortion


The DAP PMM-401 is a high-quality product that can function as a passive mixer or splitter with four stereo channels. You can combine 4 line inputs into one output or split one input into 4 outputs without noise or distortion.

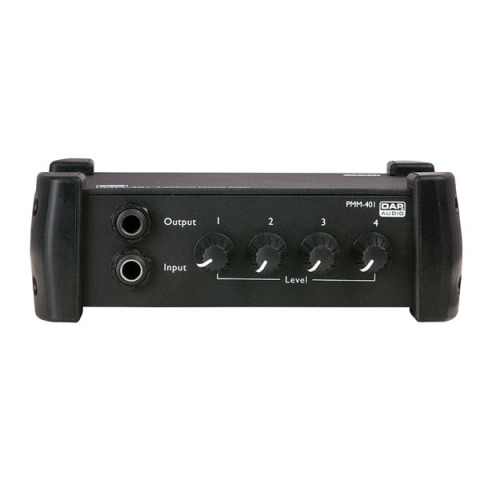

The volume of each input/output can be adjusted to set appropriate mix/volume levels. This makes it a handy tool in unforeseen situations. In addition, it is a very handy device as it does not require a power source such as batteries or mains power.


Inputs

Mono Inputs 5

Mono Input Connector TRS balanced 6.3 mm

Stereo Input Impedance 50000 Ω


Outputs

Main Outputs 5

Main Output Connector TRS balanced 6.3 mm

Main Output Impedance 12000 Ω


Audio Specifications

THD Level < 0.005 %

Signal-to-noise Ratio > 110 dB

Frequency Response Minimum 20 Hz

Frequency Response Maximum 20000 Hz


Mechanical Specifications

Height (mm) 53 mm

Width (mm) 158 mm

Length (mm) 135 mm

Weight 0.67 kg

IP Rating IP20 (indoor use only)

Housing Aluminium

Colour Black

Manufacturer:
Dap Audio
