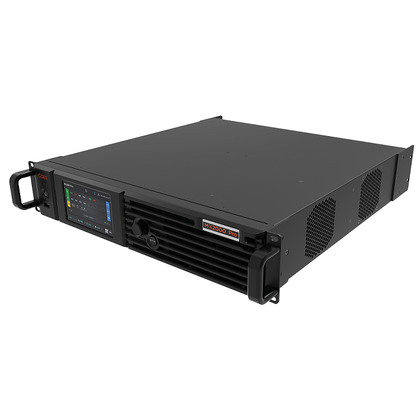

Novastar MX2000 Pro

8K LED Controller Main Frame for 35 Megapixels

Controls up to 35 million pixels
Supports 2x Input card and 2x Output card
Scaling function, 0-frame latency, frame rates up to 360 Hz
True 12-bit, HDR, wide colour gamut, 3D display technology
5 inch LCD touch panel

The Novastar MX2000 Pro is a professional 8K LED screen controller for large-screen rental services, xR/VP studios, TV productions, (e-)sports events, large fixed installations, etc. It supports true 12-bit colour depth, HDR, up to 360 Hz refresh rates, 0-frame latency, real-time multi-screen scaling and provides accurate brightness control, excellent colour and picture quality. There are several in- & output cards available which enable users to customise the processor to fit the needs of any project.
The MX2000 Pro can be controlled via its 5” touch screen in combination with the control knobs, via cascading Ethernet control and VMP software. It also supports the SNMP and Art-Net protocols. The control card is included, the input and output cards must be purchased separately.
Please note that only Armor and CX series receiver cards are supported. Older receiver cards like the MRV series are not supported.

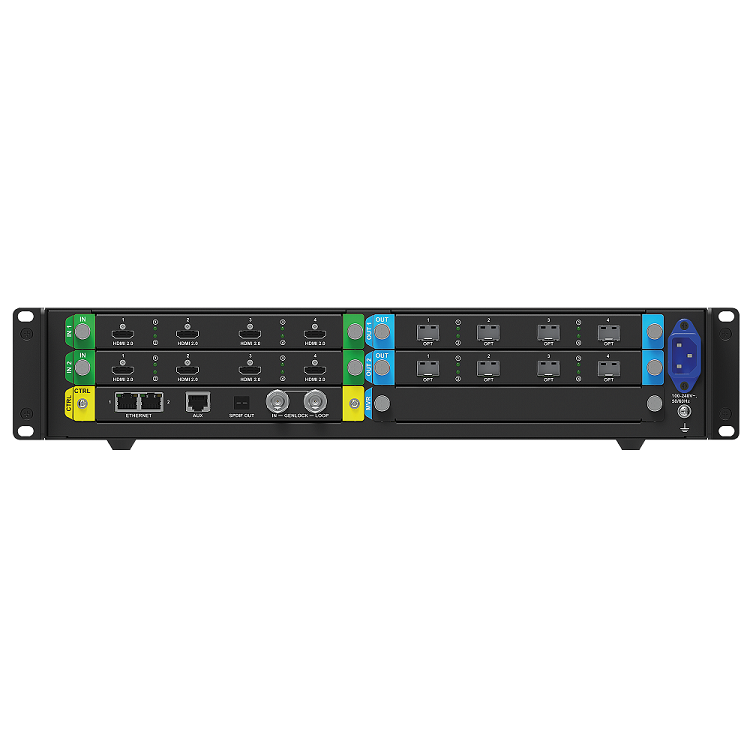

Inputs
RS-232             1
Ethernet speed     1 Gbit/s
Input Slots        2

Outputs
S/PDIF (Out)       1
Output Slots       2

Software Specifications
Control Software   VMP

Extra Features
Scaling Function   Yes
Layers             8
GenLock            In & Out
DMX Control        Art-Net

Control and Programming
Display            Touch
Display Size       5 "
Maximum Loading Capacity   35.38 Mpx
Control Options            Ethernet, RS232

Electrical Specifications and Connections
Power Supply         100-240 V AC 50/60 Hz
Power Consumption    260 W
Power Connector In   IEC
Data Connector In    RJ45, USB
Data Connector Out   RJ45

Mechanical Specifications
Width (Including Handles)   483 mm (19.016″)
Width (Without Handles)     440 mm (17.323″)
Height (Including Handles)  88 mm (3.465″)
Depth (Including Handles)   530 mm (20.866″)
Weight                      12 kg (26.455 lb)
Rack Units                  2 U
IP Rating                   IP20 (indoor use only)
Housing                     Metal
Colour                      Black

Thermal Specifications
Maximum Ambient Temperature  45 °C (113 °F)
Operating Humidity           0-80 %rH

Included Items
Included Cables              CAT-5 Cable, IEC cable
