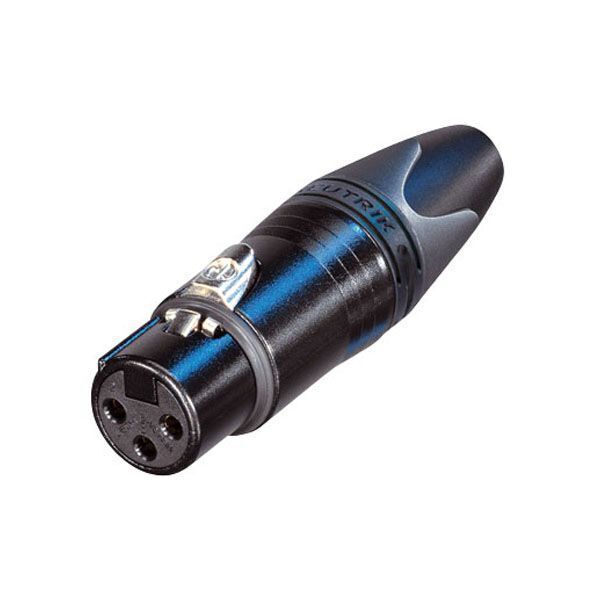

Unique female DMX design for low contact resistance and high integrity
Rugged zinc diecast shell, long-lasting and dependable
Internal thread on shell is well protected against any damage
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Electrical Specifications and Connections
Flashover Voltage 50 V
Rated Current (A) 16 A
Brand Connector 1 Neutrik
Pins 3
Maximum Wire Size 2.5 mm²
Maximum Wire Size AWG 14 AWG
Outer Cable Diameter 8 mm
Mechanical Specifications
Length (mm) 73.5 mm
Height (mm) 19.2 mm
Width (mm) 19.2 mm
Weight 0.04 kg
IP Rating IP40
Housing Nickel
Colour Black
Bushing Colour Black
Contact Resistance 3 < mΩ
Product Properties
Pin Connection Solder
Locking Device Latch
Contact Type Gold plated
