Full metal housing for RF protection and EM shielding
Duplex ground contact for excellent contact integrity
Improved pull-out force because of metal design
Larger solder contacts for easier termination

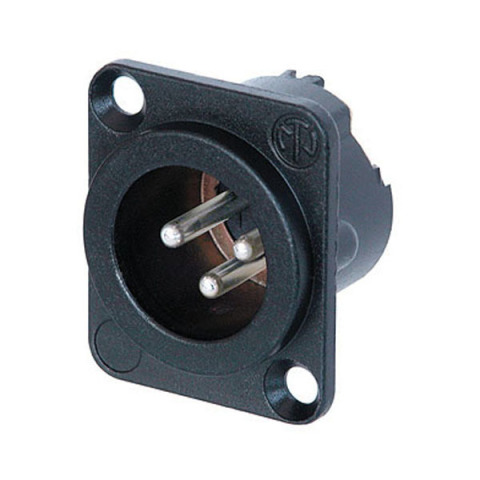

3-pin male receptacle, solder cups
Electrical Specifications and Connections
Brand Connector 1 Neutrik
Pins 3
Maximum Wire Size 2.5 mm²
Maximum Wire Size AWG 14 AWG
Mechanical Specifications
IP Rating IP40
Housing Metal
Colour Black
Contact Resistance 5 < mΩ
Product Properties
Locking Device Latch
Contact Type Silver plated
Thermal Specifications
Maximum Ambient Temperature 80 °C
Minimum Ambient Temperature -30 °C
Manufacturer:
Dap Audio
