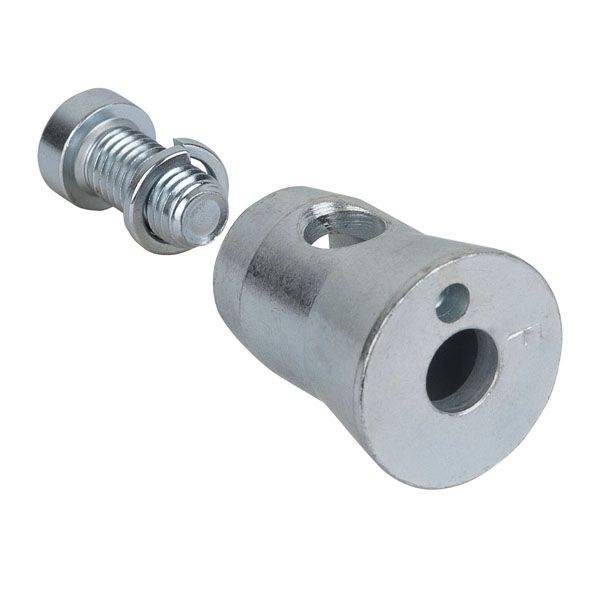

FQ30 Multicube Connector Male with washer & M12x25 bolt.
The Milos PRO-30 truss is made of 50 mm alu pipe with a thickness of 2 mm and 16 mm braces. This is the most used construction system for discotheques, stages, theatres and many more applications. The PRO-30 truss is available in the following models: 2 point Step system (FS, GS, PS), 3 point triangle system (FT, GT, PT) and 4 points square system (FQ, GQ, PQ) The system elements are joined together through conical connectors and spigots. Milos offers three different coupling systems with different compatibility, shown in the overview below. All Milos PRO-30 truss systems are TÜV certified.
· F-truss compatible with Prolyte systems (Ø 27.8 mm)
· G-truss compatible with Global & Euro systems (Ø 29.0 mm)
· P-truss compatible with standard Milos truss systems (Ø 29.8 mm)
Each truss piece (length or cornerpiece) is always delivered including a complete connection-set (spigots, pins and R-springs) for one side. And the black truss we offer, is powder-coated with colour RAL9005.
Mechanical Specifications
Finish Polish
Colour Silver
Product Properties
Truss System F
Compatibility Prolyte
Included Items
Included Accessories Bolt & Washer
Manufacturer:
Showtec-Truss
